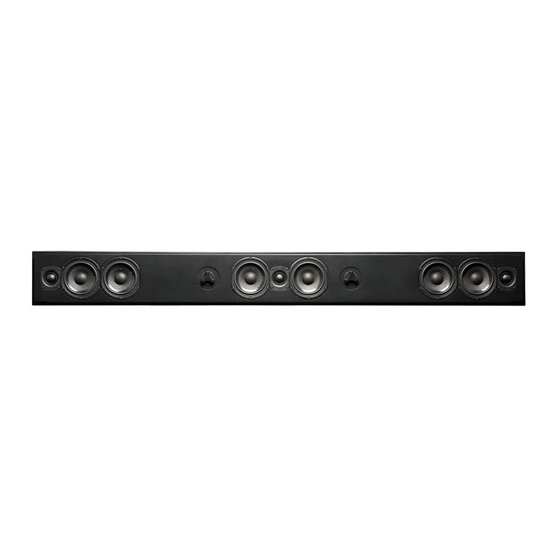

Triad OnWall Mini LCR 3.SE Quick Start Manual

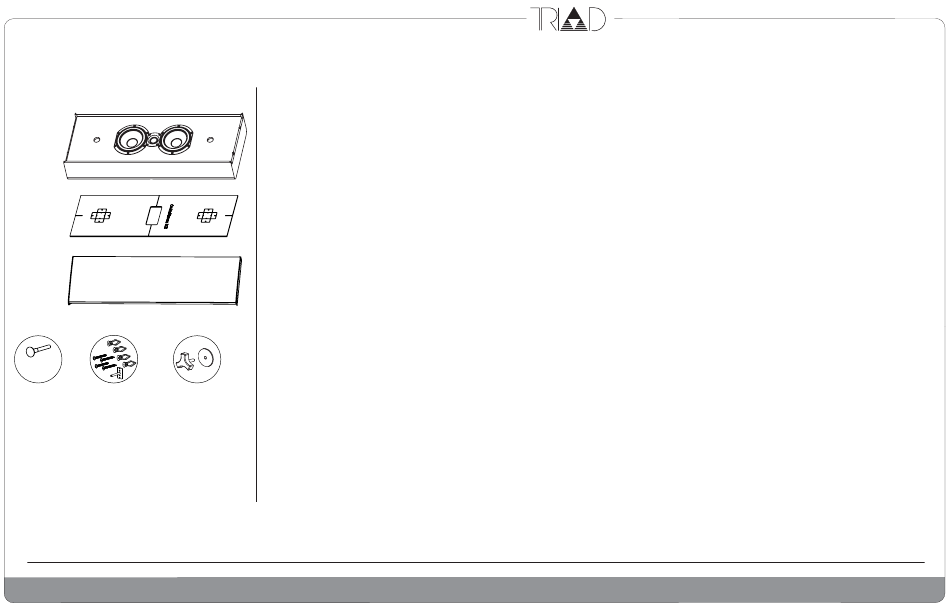

Unpacking / Contents
Speaker
(Model Varies)
Template
Grill
x1 x2*
Anchor
Key
EasyMount Bracket and Hardware
(8 anchors & 1 key, 8 screws,
2 mounting posts, and 2 knobs & 2 washers).
* For safety, superstretched models longer than 66 inches
(1676.4mm) include 4 sets of EasyMount Brackets &
Hardware. If your speaker includes 4 sets, use them
all as per instructions on page 2.
TriadSpeakers.com • Sales: 1800-666-6316

Specifications

Applicable Models Dimensions
Inches / cm
OnWall MiniSat 3.0 44x6x2.8 / 111.8x15.2x7.3
OnWall Mini LCR 3.0 54x6x4; 137.2x15.2x10.2
OnWall Mini LCR 3.SE 54x6x4; 137.2x15.2x10.2
OnWall Mini LCR 1.0
21-1/2x6x4; 54.6x15.2x10.2
OnWall Mini LCR 1.0SE 21-1/2x6x4; 54.6x15.2x10.2
OnWall Mini LCR 2.0 50x6x4; 127.0x15.2x10.2
OnWall Mini LCR 2.0SE 50x6x4; 127.0x15.2x10.2
OnWall Bronze LCR 10x28x4; 25.4x71.2x10.2
** 2 pi Frequency Response specifications are measured with wall or other boundary reinforcement nearby. If soundbar is mounted more than 3 inches from a wall or other surface, increase
subcrossover frequency 10 Hz.
Additional Info
Triad's EasyMount wall bracket, included with each speaker, is quick & easy to install, adds no depth, and allows up to .5 inch (12.7mm) horizontal and vertical adjustments for
leveling or aligning.
North American Limited Warranty
Triad speakers are warranted to be free from defects in manufacturing and workmanship (10) years when operated under normal conditions. Should any such defects occur within
the warranty period call Triad Service at 1-877-264-6315 for an RA (Return Authorization) number. Return the product in intact factory packaging with RA number clearly visible on
x2*
outside of box and proof & date of purchase inside to:
Triad Speakers Inc., 15835 NE Cameron Blvd., Portland, Oregon 97230 USA
Triad is not responsible for any shipping damage coming in to Triad. If you do not have intact factory packaging, contact your dealer or Triad Service for purchase. At our discretion
we will repair or replace the product and return it free of charge. International customers should contact their dealer for service. This limited warranty is extended only to Triad
products and is expressly in lieu of all other warranties expressed or implied.
For Mounting with other manufacturers' brackets (e.g. Chief) that use 1/4-20 inserts:
OnWall MiniSat 3.0 has two 1/4-20 inserts on its back for use with other manufacturers' speaker brackets.
OnWall Bronze LCR, OnWall Mini LCR 1.0. 2.0, 3.0 & OnWall Mini LCR 1.0. 2.0, 3.0SE do not have 1/4-20 inserts on their backs. Instead the backs of the EZ Mount Posts are
tapped for 1/4-20 bolts. Simply attach the EZ Brackets to the enclosure as shown in Drawings D on Page 2, but do not attach them to the wall. Screw the 1-4-20 bolts into the backs
of the posts.
Triad OnWall Products w/ EasyMount Bracket - Quick Start Guide
OnWall Speaker
Frequency Response Sensitivity Rec Amp Pwr
+/-3dB, 2pi** 2.83v, 1m Per Channel
90 Hz - 20 kHz
86 dB
75 - 125 Watts
90 Hz - 20 kHz
87.5 dB
25 - 150 Watts
90 Hz - 20 kHz
87.5 dB
25 - 150 Watts
90 Hz - 20 kHz
87.5 dB
25 - 150 Watts
90 Hz - 20 kHz 87.5 dB
25 - 150 Watts
90 Hz - 20 kHz
87.5 dB
25 - 150 Watts
90 Hz - 20 kHz
87.5 dB
25 - 150 Watts
80 Hz - 20 kHz
89 dB
50 - 200 Watts
Page 1
- Product Info & Warranty -
Rec Sub Xover / Nominal
EZ Bracket
> 3" from wall** Impedance Post length
100 / 110 Hz** 8 ohms 2 inch
100 / 110 Hz** 4 ohms 3 inch
100 / 110 Hz** 4 ohms 3 inch
100 / 110 Hz** 4 ohms 3 inch
4 ohms
100 / 110 Hz** 3 inch
100 / 110 Hz** 4 ohms 3 inch
100 / 110 Hz** 4 ohms 3 inch
90 / 100 Hz** 4 ohms 3 inch
Weight lbs/kg
15.2 / 6.9
20.0 / 9.0
22.0 / 9.9
9.0 / 4.1
9.9 / 4.4
14.5 / 6.6
15.8 / 7.2
16.5 / 7.5
2014.7.23
