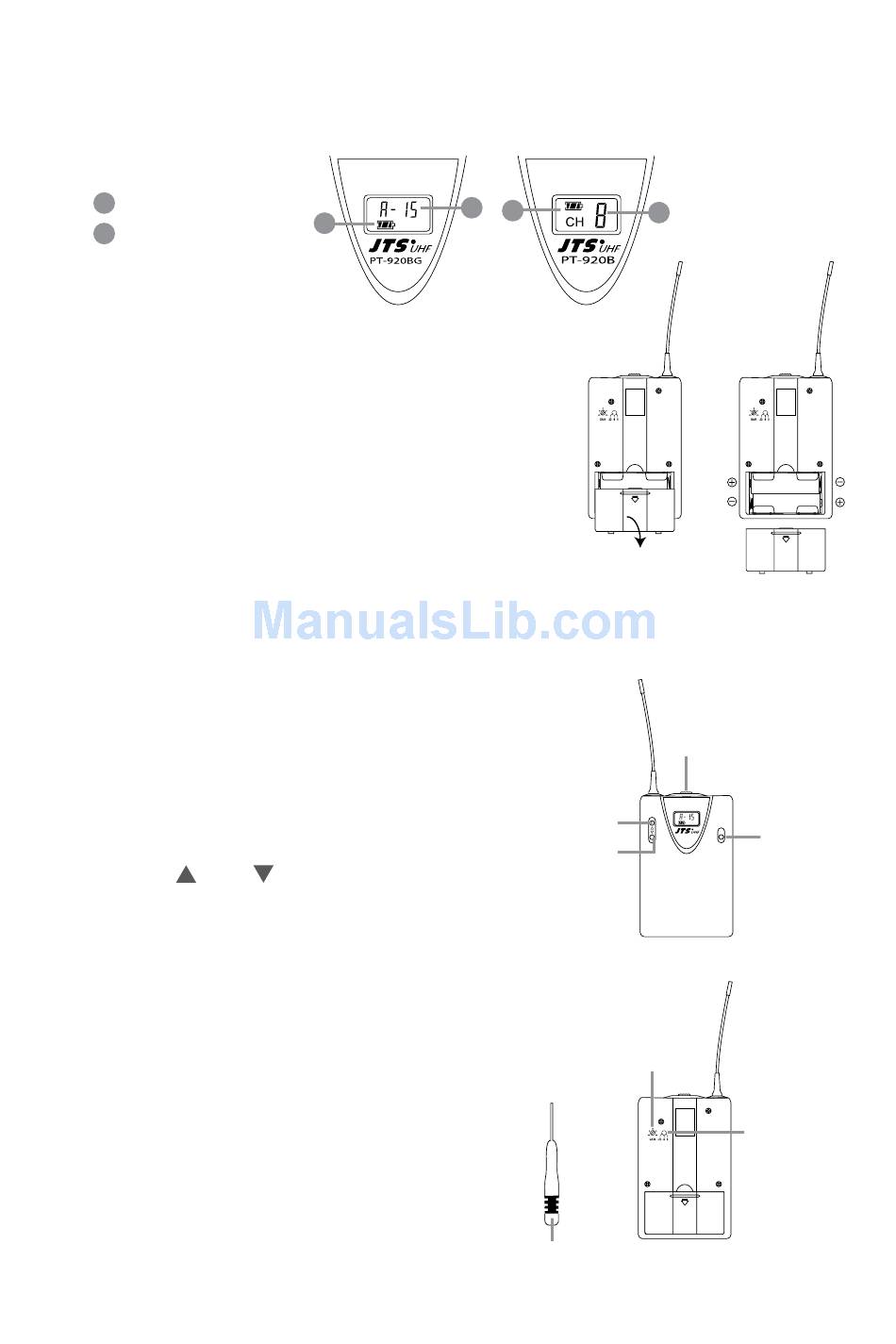

5-3 Body-pack Transmitter // PT-920BG(mi) / PT-920B(mi)
(1) LCD panel
Main display
103
Battery indictor
104
(2) Basic operation
1. Slide the battery tray cover in the direction of
the arrow to open it, insert two 1.5V batteries
according the correct polarity, and return the
cover.
2. Switch the transmitter On.
The On/Off switch is located on the top of the
transmitter.
3. Channel selecting
Hold "Set Button" till the channel number
start flashing.
Press Up or Down to select a desired
channel from the pre-set 16 channels.
Press "Set Button" to store the channel.
4. Sensitivity adjusting
There is a gain control adjustor in the up-left
of its back, you can adjust the level in 3 steps
from 0 dB to 30 dB.
19
WIRELESS MICROPHONE SYSTEM
103
104
AUDIO ADJUSTING STICKER
104
103
ON/OFF
UP
DOWN
AF LEVEL CONTROL
SET
SET
PT-920BGmi
ATTENUATION PAD
