JTS IN164 User Manual

Uhf pll single channel diversity wireless system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Music
INFINITY
Life
6
1 4

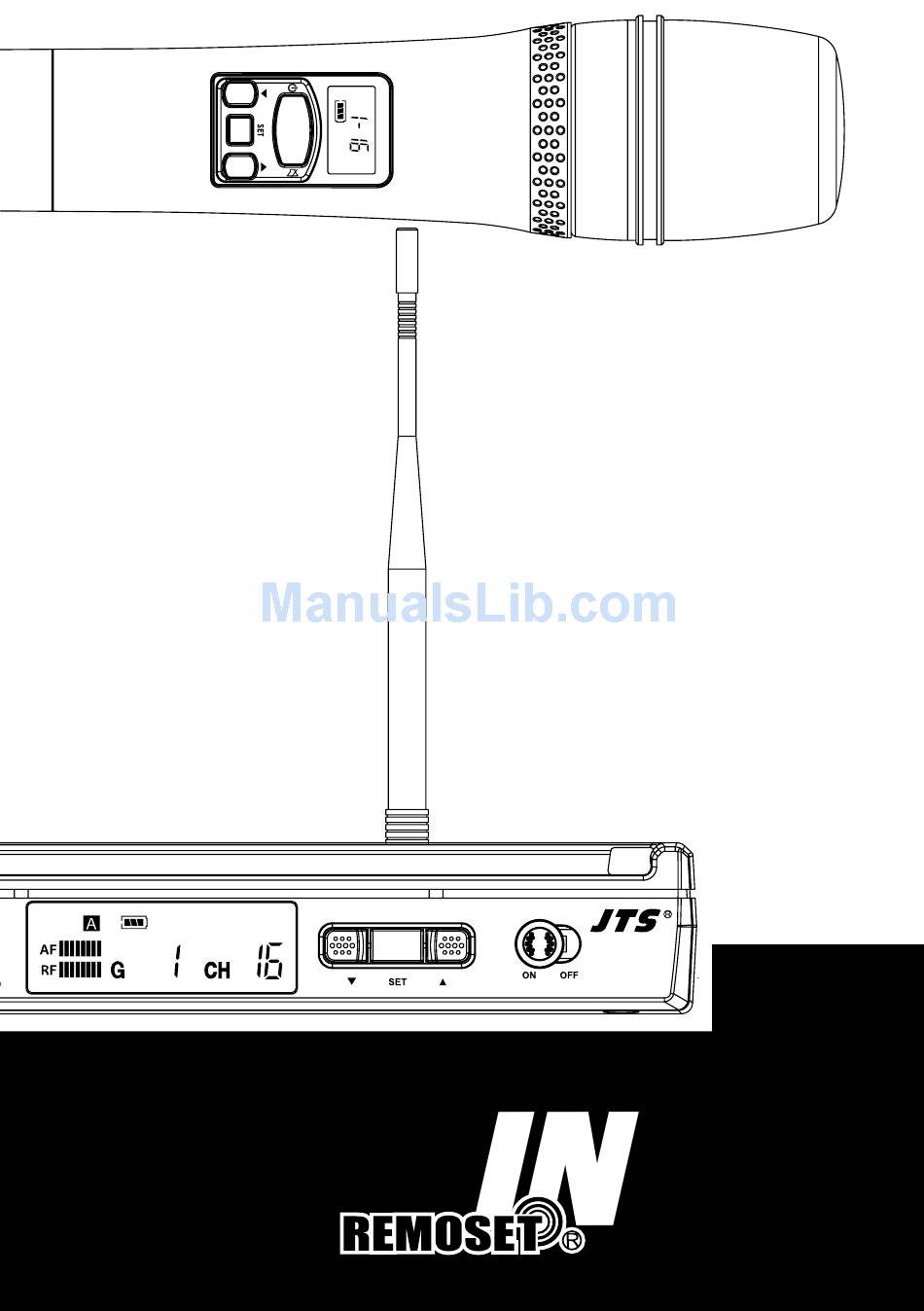

UHF PLL Single Channel Diversity Wireless System
* The system is of the innovative design to allow changing the
transmitter's frequency by long-distance .
* IN164R with band width of 36 MHz.
* Preset 6 groups, maximum 23 channels in one group.
* Operation distance from 200~480 meters.

Advertisement

Table of Contents
loading

Related Manuals for JTS IN164

Summary of Contents for JTS IN164

  • Page 1 Music INFINITY Life UHF PLL Single Channel Diversity Wireless System * The system is of the innovative design to allow changing the transmitter’s frequency by long-distance . * IN164R with band width of 36 MHz. * Preset 6 groups, maximum 23 channels in one group. * Operation distance from 200~480 meters.
  • Page 2 Thank you for choosing the JTS wireless system. In order to obtain the best efficiency from the system, you are recommended to take a few minutes to read this instruction manual carefully.
  • Page 3 INDEX 1. Important Caution 2. Features 3. Specification 3-1 UHF PLL Single Channel Diversity Receiver // IN164R 3-2 UHF PLL Handheld Transmitter // IN264TH 3-3 UHF PLL Body-Pack Transmitter // IN264TB 3-4 Optional Condenser Microphone 4. Part Identification & Accessories 4-1 UHF PLL Single Channel Diversity Receiver // IN164R 4-2 UHF PLL Handheld Transmitter // IN264TH 4-3 UHF PLL Body-Pack Transmitter // IN264TB...

  • Page 4: Important Caution

    Pair the ID codes of the transmitter and the receiver to have proper function. 2. Features JTS IN164 wireless microphone system is designed with the world first RF remote setting func- tion (REMOSET). A user can set the receiver with desired frequency and press the “REMOSET”...

  • Page 5: Specification

    3. Specification 3-1 UHF PLL Single Channel Diversity Receiver // IN164R Frequency Preparation..PLL Synthesized Control Remoset........Radio Frequency : 2.4GHz Effective distance: 10m Carrier Frequency Range 36MHz within 502~960 MHz S/N Ratio........>105dB T.H.D..........<0.6%@1KHz Display........... Display Contents....Channel, Antenna A/B, Mute Display, RF/AF Level Meter, Low battery, ID Number Controls........
  • Page 6 Music INFINITY Life 3-3 UHF PLL Body-Pack Transmitter // IN264TB Frequency Preparation.... PLL Synthesized Control Carrier Frequency Range..502~960 MHz RF Outputs........10mW / 50mW (Depend on Local Regulation) Stability..........±10KHz Frequency Deviation....±48KHz LCD Display........Channel, Battery Fuel Gauge, ID Number Controls..........

  • Page 7: Headset Microphone

    Headset Microphone Model No....... CM-204 CM-204U CM-204UL Connector......4P Mini XLR 4P Mini XLR 801C3 (3 pin mini XLR) 801C4 (4 pin mini XLR) 801CS (3.5 stereo plug) Frequency Response..60~15,000 Hz 30~18,000 Hz 100 ~ 18,000Hz Polar Pattern......Omni-directional Cardioid Cardioid Sensitivity (at 1000Hz)
  • Page 8 Music INFINITY Life Ear-hook Microphone Model No....... CM-801/CM-804i CM-8015/CM-825i Connector......801C4 (4 pin mini XLR) 801C4 (4 pin mini XLR) Option Connector... 801C3 (3 pin mini XLR) 801C3 (3 pin mini XLR) 801CS (3.5 stereo plug) 801CS (3.5 stereo plug) Frequency Response..

  • Page 9: Parts Identification & Accessories

    4. Parts Identification & Accessories 4-1 UHF PLL Single Channel Diversity Receiver // IN164R Front panel Power Switch Channel Select: Up button Channel Select: Down button Channel Select: Set button LCD Panel REMOSET Key: press it to send a desired channel data to a transmitter Volume Contol Rear panel BNC antenna connector...
  • Page 10 Music INFINITY Life LCD Panel of the Receiver AF Level: display the strength of audio signal RF Level: display the strength of radio signal Antenna Status: the receiver will automatically select an antenna with stronger signal level Low battery indicator: display the low battery status of its transmitter Group &...

  • Page 11: Optional Condenser Microphone

    4-3 UHF PLL Body-Pack Transmitter // IN264TB LCD Display Battery Tray Set button: set the configuration of bodypack transmitter Up button: select the settings of transmitter Down button: select the settings of transmitter 4 Pin mini XLR mic. input Power Switch Gain control: control sensitivity of the transmitter Pad: -20dB, -6dB, 0dB LCD Panel of the Body-Pack Transmitter...
  • Page 12 Music INFINITY Life Headset Microphone // CM-204 / CM-204U / CM-204UL / CM-225 / CX-504 Gooseneck Headband 4 Pin Mini XLR Windscreen CM-204 CM-204U CM-204UL Standard : 4 Pin Mini XLR 3 Pin Mini XLR 3.5 Stereo Plug CM-225 CX-504...
  • Page 13 Ear-hook Microphone // CM-801 CM-804i CM-8015 CM-825i Boom Adjustable Headband Adjustable ear hook Detchable Cable CM-801 Cable Clip Windscreen 4 Pin Mini XLR Option 3 Pin Mini XLR 3.5 Stereo Plug Option CM-804i CM-8015 CM-825i...
  • Page 14 Music INFINITY Life Compatible Instrument Microphone // CX-500 / CX-500F / CX-520 / CX-508W / CX-516W Gooseneck Clip Bracket Volume Control Windscreen 4 Pin Mini XLR CX-500 CX-500F CX-520 CX-508W CX-516W...
  • Page 15 4-5 Accessories AC/DC adaptor Switching Power Supply(100V~240V , 50~60Hz) Linear Power Supply (220V , 50Hz) Option Linear Power Supply (220V , 60Hz) Option Screwdriver DR-900 dual rack adaptor Option RP-900 panel cover Option AF output cable (with Φ6.3 plug at both ends) GC-80/GC-100 Guitar Cable Option GC-80L/GC-100L Guitar Cable...
  • Page 16 Music INFINITY Life 5. Connection 5-1 Receiver // (1) Connect to the subsequent unit (e.g. mixer, or amplifier) Connect one end of a proper AF cable to the AF Output or Balanced XLR Output socket , then plug another end to the “MIC IN” input socket of a mixer or a amplifier (Step 1 of Figure 1) (2) Connect the power supply unit Plug in one end of AC/DC adaptor cable...

  • Page 17: Operation

    (4) Install the antennas in a vertical position 6-2 Set up ID code In order to match one receiver to only one transmitter, IN164 is designed with“ ID code”. If and only if both ID codes of a receiver and a transmitter match each other, the “REMOSET”...
  • Page 18 Music INFINITY Life Handheld and BodyPack transmitter ID code ON/OFF setting (1) Press “Set” button for 3 seconds, LCD Panel will start flashing. (2) Press “Set” a couple of times until “ID Code ON/OFF” setting window shows. (3) Press“ Up ”...

  • Page 19: Check System Status

    6-3 Synchronize the channel (1) Press “Set” button fon the receiver for 3 Seconds, the group (G) in the “Group & Channel” area will flash. (Figure 4) (2) Press “ Up ” or “ Down ” button to select a desired group (3) Press “Set”...
  • Page 20 Music INFINITY Life 6-5 Manual select channel Receiver (1) Press“Set” button for 3 seconds, the group (G) in the “Group & Channel” area will flash. (Figure 8) (2) Press “ Up ” or “ Down ” button to select a desired group. (3) Press “Set”...
  • Page 21 6-6 Lock ON Function Receiver (1) Press “Set” button for 3 seconds to enter setting window (2) Press “Set” again until the Lock setting window shows. (Figure 10) Notice: Original setting is lock off (Lo OF). (3) Press “ Up ” or “ Down ” button to select the mode between “Lock On” and “Lock off ”.

  • Page 22: Bodypack Transmitter

    Music INFINITY Life 6-7 Adjust the sensitivity of the microphone Handheld transmitter (1) Press “Set” button for 3 seconds to enter setting window. (Figure 12) 21 29 (2) Short press “Set” until the sensitivity setting window shows. (3) Press “ Up ”...
  • Page 23 Handheld and Body Pack Setting List Sensitivity 0 dB is the highest sensitivity Settings Synchronization ON/OFF When ID code is OFF (id OFF), the transmitter will ID code ON/OFF accept any synchronization from any IN164R. There are 100 ID codes. ID code select button unlock Lock ON...

  • Page 24: Installation Of Condenser Microphones

    Plug the connector into input socket on the body-pack transmitter. MIC IN (3) Instrument Microphones The system is compatible with JTS various instrument microphones. For detail please refer to user’ s manuals of these microphones.
  • Page 25 (4) Ear-hook Microphone 1. Lightweight Dual Ear Hook Microphone Try on whether the headset is fit. Adjust the headband to a suitable width. Tighten or loosen the curve of the ear-hook by twisting the loop or expanding it. Curve and bend the boom to fit your face. Attach the detachable cable to a suitable place by a cable clip.
  • Page 26 Music INFINITY Life 7. Recommendation (1) In order to achieve the optimum reception condition and also extend the operating distance, please leave a “open space” between the receiver and transmitter. (2) Keep the devices away from the metal objects or any interference sources, at least 50 cm. (3) To avoid the feed-back effect, don’t leave the mic.

  • Page 27: Important Notice

    8. Important Notice (1) JTS offers wireless systems in a selection of bands that conform to the different government regulations of specific nations or geographic regions. These regulations help limit radio frequency (RF) interference among different wireless devices and prevent interference with local public communications channels, such as television and emergency broadcasts.
  • Page 28 1856 59508-032-01...
