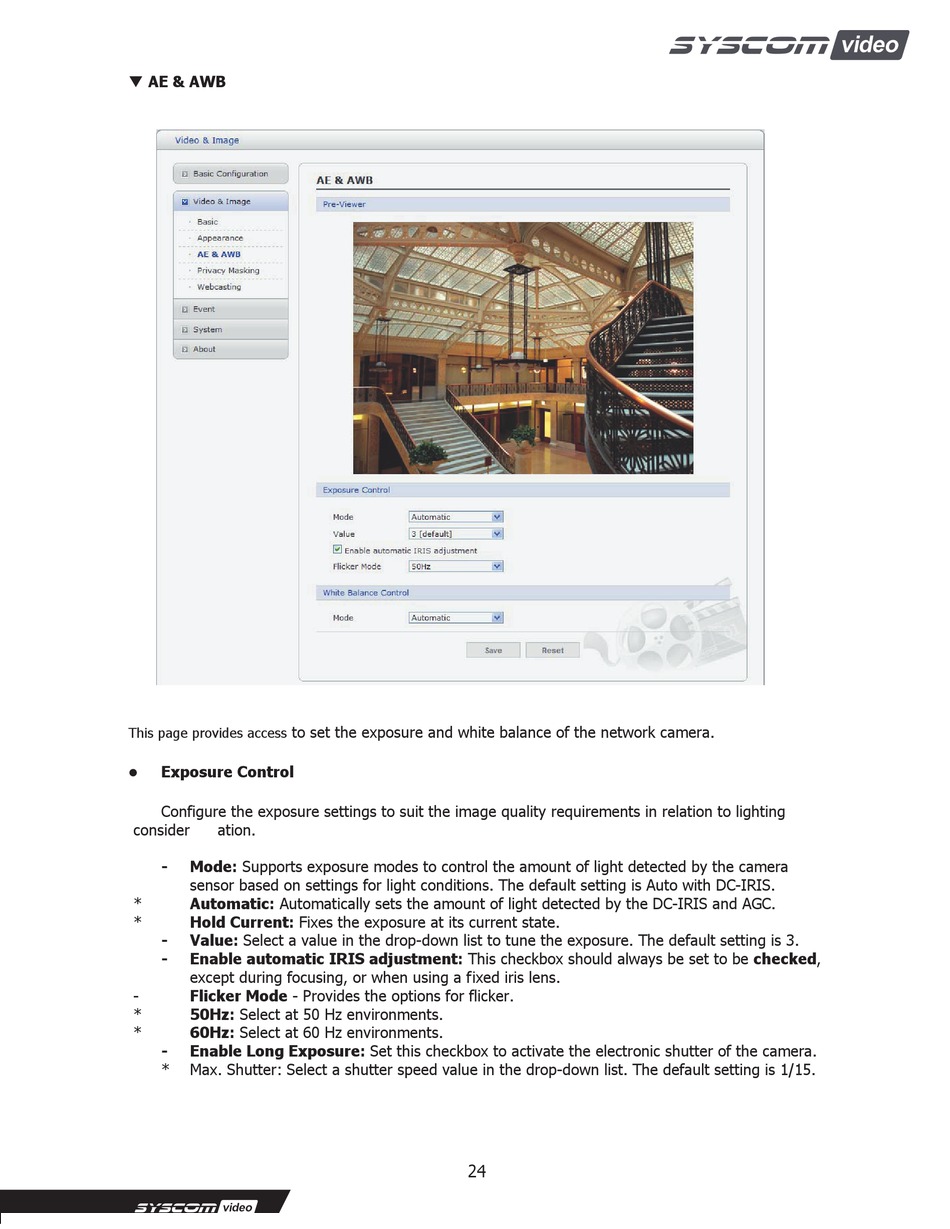

Syscom Video Full-HD IR Bullet Network Camera Instruction Manual page 24

 AE & AWB
to set the exposure and white balance of the network camera.
This page provides access
• Exposure Control
Configure the exposure settings to suit the image quality requirements in relation to lighting
consider ation.
Mode: Supports exposure modes to control the amount of light detected by the camera
-
sensor based on settings for light conditions. The default setting is Auto with DC-IRIS.
* Automatic: Automatically sets the amount of light detected by the DC-IRIS and AGC.
* Hold Current: Fixes the exposure at its current state.
- Value: Select a value in the drop-down list to tune the exposure. The default setting is 3.
- Enable automatic IRIS adjustment: This checkbox should always be set to be checked,
except during focusing, or when using a fixed iris lens.
- Flicker Mode - Provides the options for flicker.
* 50Hz: Select at 50 Hz environments.
* 60Hz: Select at 60 Hz environments.
- Enable Long Exposure: Set this checkbox to activate the electronic shutter of the camera.
* Max. Shutter: Select a shutter speed value in the drop-down list. The default setting is 1/15.
