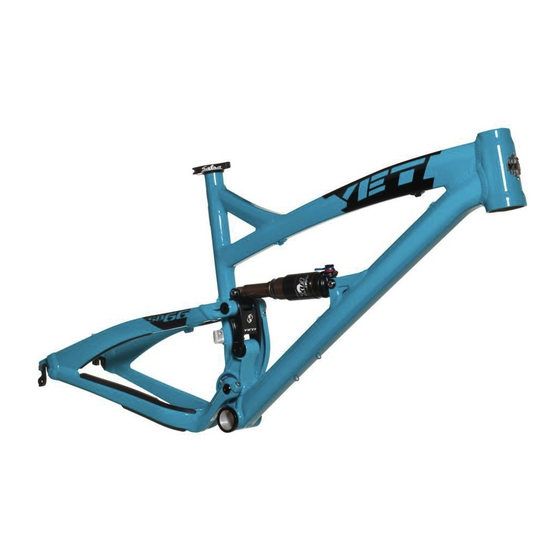

- Page 1 2013 yeti sb 66 YETI CYCLES 600 Corporate Circle, Unit D Golden, CO 80401 888.576.9384 www.yeticycles.com...
-
Page 2: Table Of Contents
table of Contents BranD Overview Frame FeatUres GeOmetery maintenanCe sCheDUle setup Overview shOCk setUp QUiCk start GUiDe CaBle/line setUp technical assemBly Overview Chip system explODeD views reBUilD kits legal warranty COntaCt inFOrmatiOn... - Page 3 welCome to the tribe. Congratulations on your purChase of a new yeti. we are confident your new bicycle will exceed this manual outlines basic setup and your expectations for value, performance, and maintenance recommendations of your new ride quality. each frameset and component yeti.
- Page 4 sb-66 our most the sB66 delivers 6 inches of travel with our new switch technology. efficient pedaling performance while still smooth and teChnologiCally continuous when the going gets rough. Compact, stiff, and fully sealed, the eccentric assembly is the key advanCed bike.
-
Page 5: Geometery
geometry fox 32 150 mm fork 16.5 18.0 19.5 21.0 23.1 24.1 25.1 25.9 67.0 67.0 67.0 67.0 72.0 72.0 72.0 72.0 17.1 17.1 17.1 17.1 44.2 45.2 46.3 47.1 13.4 13.4 13.4 13.4 27.0 28.1 29.3 30.1 20.5 20.5 20.5 20.5 fox 34 150 mm fork... - Page 6 keep your new yeti fresh and Clean overview torque Following these guidelines will help maintain the performance of your bicycle and prevent yeti strongly recommends using a torque wrench when assembling your frame. torque more serious problems from arising. it is important to remember that service intervals can vary specifications for individual parts on the sB-66 are listed below, as well as in the step by step depending on climate, trail conditions and riding frequency.
-
Page 7: Shock Setup
shoCk setup yeti tips tools needed inspect your shock for any visible damage. • shock pump if oil is leaking or you notice any damage to • tape measue the surfaces or seals, please contact the Fox racing shox service center for repair at 800. FOx.shOx. -
Page 8: Quick Start Guide
shoCk setup 05. trail adjust 04. Compression damping the compression dampening has three levels the trail adjust dial controls the “trail” mode low of adjustment and is controlled by the blue speed compression adjustment. it has three lever on the shock. the “climb” mode engages levels of adjustment and is controlled by the the firmest low-speed compression setting for black dial on the shock body. -
Page 9: Front Derailleur
Cable setup yeti tips the sB66 has full cable housing. By using full cable housing, we have eliminated break points in the line of your shifter housing. this allows riders to experience better overall shifting performance by reducing the entrance of unwanted elements such as sweat and sediment. Use of full cable housing helps prevent corrosion from the elements and keeps the shifting smoother for a longer period of time. - Page 10 60mm OD quad o-ring on the non-drive side of the main pivot. Warning: service on Yeti bicycles requires special knowledge and tools. Yeti cycles recommends that all service and repairs be performed by an authorized Yeti Dealer lightly grease the 40mm integrated axle and prepare a ti male bolt with blue loctite and install insert it through the drive side main pivot bearing.
- Page 11 assembly assembly lightly grease the threads on the stop bolt and Grease the inside surface of the inner race slide the rear triangle over the integrated axles Grease the main pivot axle and install it through tighten into the eccentric housing with a 6mm extender and place over the drive side dogbone and align it with the pivot pin axle hole.
- Page 12 assembly assembly install the shock onto the frame. insert a 34 mm repeat the process for the shock and upper link apply blue loctite to four m6x1x20 socket head Double check the alignment of all frame ti female bolt with a shock bolt washer through interface.
-
Page 13: Chip System
Chip system Use a 2.5mm allen key to loosen the two Fit the 12mm insert hanger into the groove on m4x9mm flat head bolts holding the Qr insert the inside of the drive side chainstay. the hanger derailleur hanger in place. remove the bolts and should be flush with the chainstay. -
Page 14: Exploded Views
exploded views part # DesCriptiOn FrOnt trianGle sB-66 rear trianGle sB-66 300040423 axle main pivOt 300040424 axle link pivOt Upper 300040425 axle link pivOt lOwer 300040426 axle 45mm inteGrateD 300040427 link Upper allOy 300040428 Cap axle link 300040429 O rinG QUaD 50.4x54x1.6 300030016 BOlt sCkt heaD m6x1x16 300040430... -
Page 15: Rebuild Kits
rebuild kits part # DesCriptiOn h12s66a00000000000001 sB66a 2012 BearinG reBUilD kit 300040424 axle link pivOt Upper 300020039 BearinG 40x52x7 6808 2rs max 300040425 axle link pivOt lOwer 300020040 BearinG 45x58x7 6809 2rs max 300040426 axle 45mm inteGrateD 300020041 BearinG 15x24x7 3802 2rs max 300040427 link Uper allOy 300020042... -
Page 16: Warranty
Cycles will make replacement parts available at a minimum charge to the original owner in the event of a crash or any other non-warranty situation. yeti Cycles does this at its sole discretion and reserves the right to refuse this offer.
