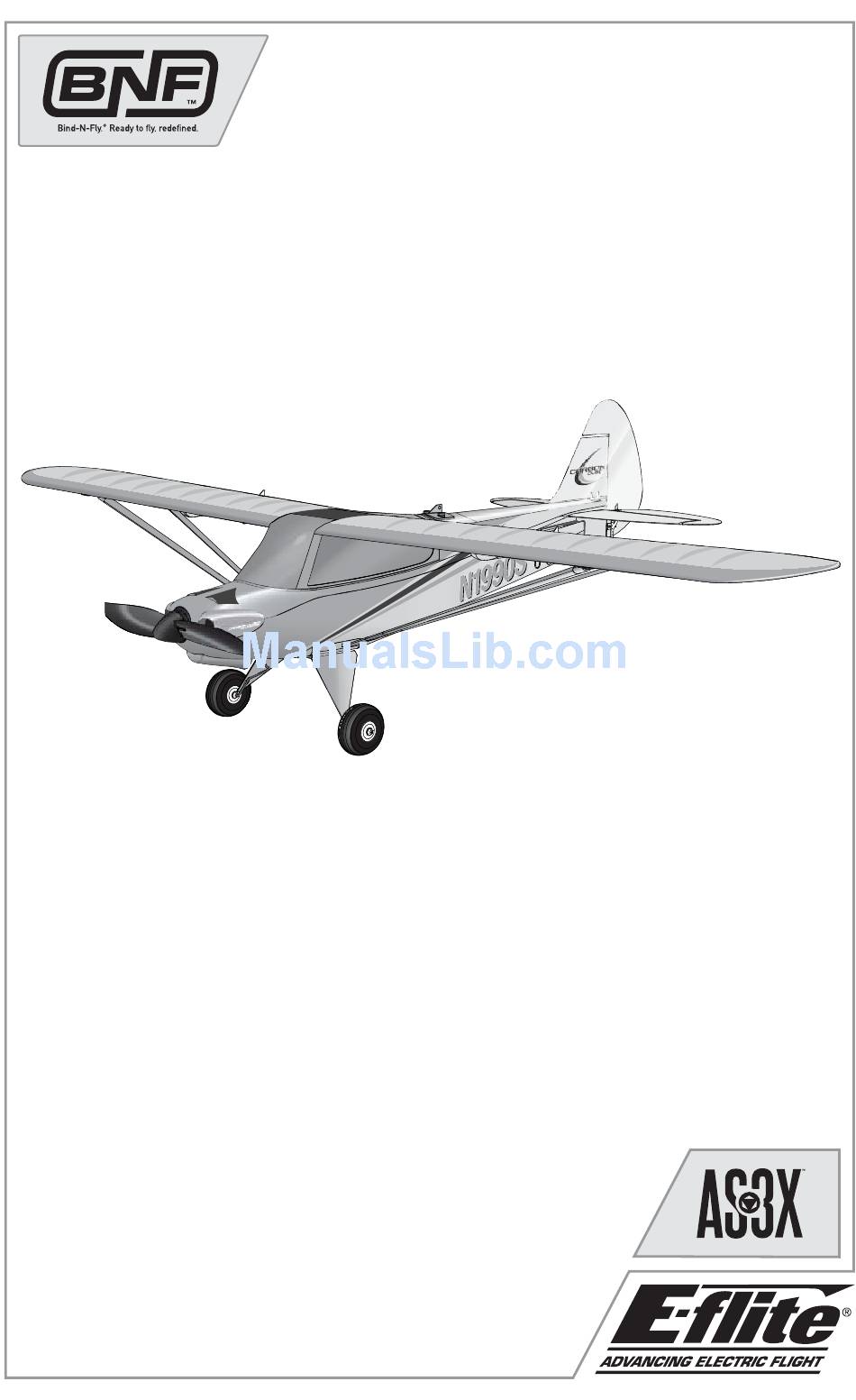

- Page 1 ™ Carbon Cub SS Instruction Manual...
- Page 2 NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language: The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
-
Page 3: Table Of Contents

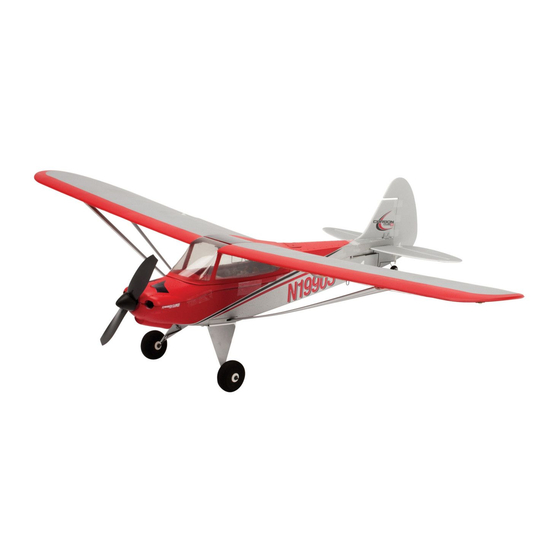

® ™ The E-fl ite Carbon Cub SS BNF is a feature-rich scale BNF model that’s an escape from the ordinary. Its high-output brushless power system will allow you to leap from tight spots and, with its fully-functional ™ fl aps, is simply a joy to fl y. Large credit for its gentle manners go to the onboard AS3X system, which makes handling super-smooth, even in moderate winds, and provides rock solid control agility. -
Page 4: Prefl Ight Checklist
Prefl ight Checklist 1. Charge fl ight battery. 6. Adjust center of gravity. 2. Install fl ight battery in aircraft 7. Perform a radio system Range Check. (once it has been fully charged). 8. Find a safe and open area. 3. -
Page 5: Charging The Battery
Charging the Battery Your aircraft comes with a 2-Cell 7.4V 180mAh 20C Li-Po battery and a Celectra ™ 2S 7.4V DC Li-Po Charger that requires a 12V (11V-14V) DC power source. Refer to the battery warnings. It is recommended to charge the battery pack while you are inspecting the aircraft. -
Page 6: Transmitter And Receiver Binding
Transmitter and Receiver Binding Binding is the process of programming the receiver of the control unit to recognize the GUID (Globally Unique Identifi er) code of a single specifi c transmitter. You need to ‘bind’ your chosen Spektrum ™ DSM2 ®... -
Page 7: Arming The Esc
Arming the ESC Arming the ESC also occurs after binding as previously described, but subsequent connection of a fl ight battery requires the steps below. Lower throttle and throttle Install fl ight battery and Keep plane immobile trim to lowest settings. and away from wind for connect it to the ESC. -
Page 8: Control Centering
Control Centering Before the fi rst fl ights, or in the event of an accident, make sure the fl ight control surfaces are centered. Adjust the linkages mechanically if the control surfaces are not centered. Use of the transmitter sub-trims may not correctly center the aircraft control surfaces due to the mechanical limits of linear servos. -
Page 9: Adjusting Center Of Gravity (Cg)
fl ap control. Tip: If you are using a computer radio to fl y your UMX Carbon Cub SS, we recommend that you cre- ate a mix to compensate for pitching up tendencies when the fl aps are in the down position. Enter the... -
Page 10: Optional Tow Plate Installation
Optional Tow Plate Installation 1. Align the two screws and holes in the tow plate with the holes in the mount on top of the fuselage. The hole for the tow line in the bracket should be toward the back of the aircraft (see illustration). -
Page 11: Tips For Towing
Recommended Aircraft Towing Positions When Flying 28 ft (8.5 m) Tips for Towing If a problem occurs, the pilot of the sailplane should • Continually communicate with the pilot of the release the tow line from the nose of his sailplane sailplane to make the pilot aware when you are so that both aircraft can be safely landed. -
Page 12: Optional Float Installation
Optional Float Installation 1. Remove all 4 screws and the cover plates from the bottom of the fuselage. Keep these materials to reuse in step 4. 2. Carefully remove and retain the landing gear from the fuselage. 3. Push the square loops of the front and rear float struts into the slots in the bottom of the fuselage. -
Page 13: Flying Tips And Repairs
Flying Tips and Repairs Flying Failure to lower the throttle CAUTION stick and trim to the lowest We recommend fl ying your E-fl ite ® UMX Carbon possible positions during a Cub SS outside in no greater than moderate winds crash could result in damage or inside in a large gymnasium. -
Page 14: Additional Safety Precautions And Warnings
Additional Safety Precautions and Warnings As the user of this product, you are solely This aircraft is controlled by a radio signal subject responsible for operating it in a manner that does to interference from many sources outside your not endanger yourself and others or result in control. -
Page 15: Service Of Power Components
Service of Power Components Disassembly CAUTION: DO NOT handle propeller parts while the fl ight battery is connected. Personal injury could result. Propeller 1. Remove the spinner (A) from the propeller (B). Since the propeller and spinner are glued together, glue residue will need to be cleaned from the spinner or propeller when these parts are used again. -
Page 16: Opening The Fuselage
Opening the Fuselage When the fuselage must be opened for access to the motor, servos or receiver: 1. At the fuselage, push the left and right struts (marked L and R) forward, then pull the struts from the fuselage. 2. Push the struts together until they pull free from the wing. -
Page 17: Troubleshooting Guide (Continued)
Troubleshooting Guide (Continued) Problem Possible Cause Solution Aircraft will not respond Throttle stick and/or throttle trim too high Reset controls with throttle stick and throttle to throttle but responds trim at lowest setting to other controls Throttle channel is reversed Reverse throttle channel on transmitter Motor disconnected from receiver Open fuselage and make sure motor is... -
Page 18: Limited Warranty
Limited Warranty What this Warranty Covers WARRANTY SERVICES Horizon Hobby, Inc. (“Horizon”) warrants to the original Questions, Assistance, and Services purchaser that the product purchased (the “Product”) will Your local hobby store and/or place of purchase cannot be free from defects in materials and workmanship at the provide warranty support or service. -
Page 19: Warranty And Service Information
Compliance Information for the European Union Declaration of Conformity (in aclineance with ISO/IEC 17050-1) No. HH2011121701 Product(s): UMX Carbon Cub SS BNF Item Number(s): EFLU1180 Equipment class: The object of declaration described above is in conformity with the requirements of the specifi cations listed below, following the provisions of the European R&TTE directive 1999/5/EC and EMC Directive 2004/108/EC:... -
Page 20: Replacement Parts
Carbon Cub SS Carbon Cub SS Landing Gear Set: Fahrwerkset: UMX Jeu de train Set del carrello di EFLU1103 UMX Carbon Cub SS Carbon Cub SS d’atterrissage : UMX atterraggio: UMX Carbon Cub SS Carbon Cub SS Spinner (3): UMX Spinner (3): UMX Cône d’hélice (3) :... -
Page 21: Optional Parts And Accessories
Float Set: UMX Carbon Schwimmer Set: UMX Flotteurs : UMX Set di galleggianti: EFLUA1190 Cub SS Carbon Cub SS Carbon Cub SS UMX Carbon Cub SS Charger Plug Adapter: Ladekabel Adapter Prise d’adaptation Adattatore per la EFLA700UM chargeur: EFL carica: EFL Charger Plug Adapter: Ladekabel Adapter TP Prise d’adaptation... -
Page 22: Parts Contact Information
– Parts Contact Information – – Intaktinformationen für Ersatzteile – – Coordonnés pour obtenir de piéces détachées – – Recapiti per i ricambi – Country of Horizon Hobby Address Phone Number/Email Address Purchase 4105 Fieldstone Rd 800-338-4639 United States Sales Champaign, Illinois, 61822 USA sales@horizonhobby.com Units 1-4 Ployters Rd... - Page 23 © 2013 Horizon Hobby, Inc. UMX, AS3X, E-fl ite, JR, Celectra, DSM, DSM2, ModelMatch and Bind-N-Fly are trademarks or registered trademarks of Horizon Hobby, Inc. DSMX is a trademark of Horizon Hobby, Inc., registered in the U.S.. The Spektrum trademark is used with permission of Bachmann Industries, Inc. Futaba is a registered trademark of Futaba Denshi Kogyo Kabushiki Kaisha Corporation of Japan.
- Page 24 required by your city, county, state or country. Damage Limits Lagerung und Gebrauch. Garantieeinschränkungen Wenn Sie als Käufer diese Garantiebestimmungen Lithium Ion Battery Contact the appropriate Horizon Product Support nicht akzeptieren und annehmen wollen, sollten • Stechen, Drücken oder Bauen Sie niemals Alle Dokumente, Aussagen und Hinweise HORIZON SHALL NOT BE LIABLE FOR SPECIAL, Safety Guidelines...
- Page 25 Directives et avertissements avant la (a) Cette garantie est limitée à l’acheteur • Caricare sempre queste batterie in uno spazio la prova di acquisto. che ne deriva. première charge initial (« Acheteur ») et n’est pas transférable. aperto lontano da materiali, liquidi e superfici (b) Limitazioni- HORIZON ESCLUDE QUALSIASI Se l’Acquirente o l’utente non è disposto ad UN REMPLACEMENT CONFORMEMENT A LA Instructions relatives à...
