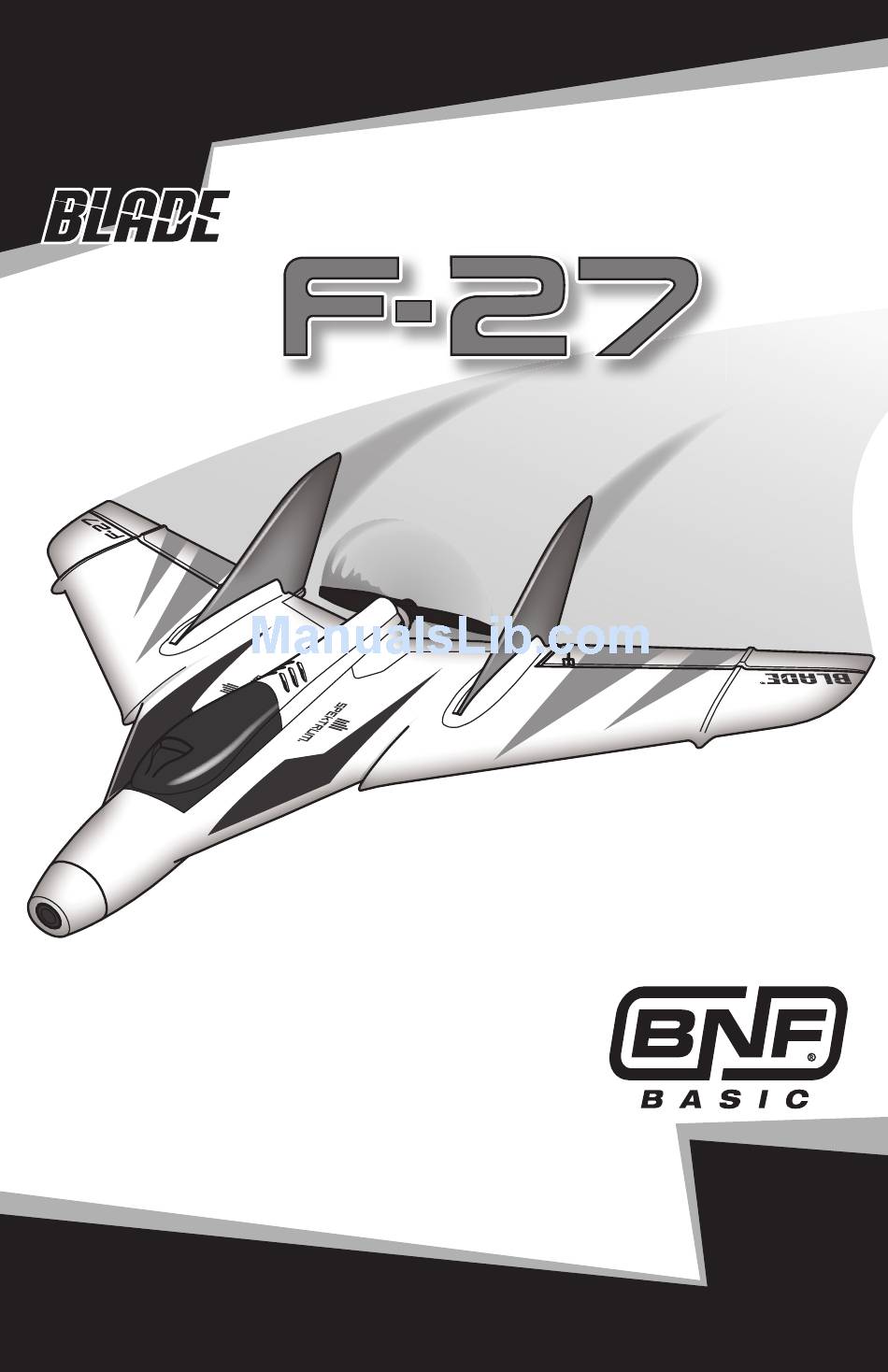

- Page 1 ® Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni...
-
Page 2: Safety Precautions And Warnings
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product. Meaning of Special Language The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury. -
Page 3: Table Of Contents
® Table of Contents First Flight Preparation .............4 Using the Video Transmitter ..........10 Transmitter Setup ............4 Changing the Propeller...........11 Flying Checklist ...............4 Motor Service ..............11 Installing the Flight Battery ..........5 AS3X Troubleshooting Guide ..........11 Transmitter and Receiver Binding ........5 Troubleshooting Guide ...........12 Control Horn Settings ............6 Parts Explosion ..............13 Control Centering ............6... -
Page 4: First Flight Preparation
First Flight Preparation Flying Checklist ❏ Always turn the transmitter on fi rst • Remove and inspect contents ❏ Plug the fl ight battery into the lead from the ESC • Begin charging the fl ight battery ❏ Allow the ESC to initialize and arm properly •... -
Page 5: Installing The Flight Battery
Installing the Flight Battery 1. Remove the canopy. 2. Insert the fl ight battery in the battery compartment. The recommended battery is a snug fi t and should not require any other means of restraint. If the battery fi ts loosely in the battery compartment, apply hook and loop material to the battery and inside the compart- ment to hold the battery in place. -
Page 6: Control Horn Settings
Control Horn Settings The table at the right shows the factory settings for the Control Horns Servo elevon control horns and servo arms. Do not make changes to the elevon linkages. Control Centering Before the first flights, or in the event of an accident, make sure control surfaces are centered when the transmitter controls and trims are neutral. -
Page 7: Flight Control Direction Tests
Flight Control Direction Tests Transmitter input test This test ensures that the fl ight control system is reacting Transmitter Control Surface Reaction properly to your transmitter inputs. Assemble the aircraft Input (viewed from the rear) and bind your transmitter to the aircraft receiver prior to performing this test. -
Page 8: Flight Modes
Flight Modes The aircraft has two fl ight modes pre-programmed into the receiver: ® SAFE Mode (switch position 0 or 1) Acro Mode (switch position 2) In SAFE ® Mode the aircraft has bank and pitch limiting to Experienced Mode has no bank or pitch limiting, giving help prevent the pilot from over-controlling. -
Page 9: In Flight Trimming
In Flight Trimming Familiarize yourself with the Flying Your Aircraft section 5. Set the fl ight mode back to AS3X mode if it was prior to trimming your aircraft. Trimming should be done in changed for landing. Power cycle the aircraft. Do not calm wind conditions and with a fully charged transmitter activate the throttle. -
Page 10: Using The Video Transmitter
Using the Video Transmitter Consult local laws and ordinances before operating FPV equipment. In some areas, FPV operation may be LEDs Channel button limited or prohibited. You are responsible for operating this product in a legal and responsible manner. We recommend becoming familiar with the flight characteristics of the aircraft using line-of-sight prior to attempting to fly through the FPV system. -
Page 11: Changing The Propeller
Changing the Propeller CAUTION: Always disconnect the flight battery before performing propeller service. 1. Remove the 5mm washer head propeller screw. 2. Pull the propeller from the propeller adapter. 3. Place the new propeller on the propeller adapter with the raised numbers on the prop facing toward the motor and the front of the aircraft. -
Page 12: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Reset controls with throttle stick and throttle trim Throttle stick and/or throttle trim is too high at lowest setting Aircraft will not respond to throttle but responds Throttle channel is reversed Reverse throttle channel on transmitter to other controls Open fuselage and ensure the plug for the motor is Motor is unplugged from receiver... -
Page 13: Parts Explosion
Parts Explosion Replacement Parts Optional Parts Part # Description Part # Description 1 BLH03201 Flight Control: UM F-27 FPV EFLB2802S30 280mAh 2S 7.4V 30C Li-Po 2 BLH03202 Motor Mount: UM F-27 FPV FSV1063 Dominator V3 Modular WVGA Headset 3 BLH03203 Control Horn Set: UM F-27 FPV DUB916 Electric Flyer Hinge Tape... -
Page 14: Limited Warranty
Limited Warranty What this Warranty Covers questions and service you in the event that you may need any assistance. For questions or assistance, please visit our website Horizon Hobby, LLC, (Horizon) warrants to the original purchaser at www.horizonhobby.com, submit a Product Support Inquiry, or that the product purchased (the “Product”) will be free from call the toll free telephone number referenced in the Warranty defects in materials and workmanship at the date of purchase. -
Page 15: Warranty And Service Contact Information
Warranty and Service Contact Information Country of Purchase Horizon Hobby Contact Information Address Horizon Service Center servicecenter.horizonhobby.com/ (Repairs and Repair Requests) RequestForm/ productsupport@horizonhobby.com Horizon Product Support United States 4105 Fieldstone Rd (Product Technical Assistance) of America 877-504-0233 Champaign, Illinois, 61822 USA websales@horizonhobby.com Sales 800-338-4639... - Page 16 © 2017 Horizon Hobby, LLC. Blade, UMX, Celectra, DSM, DSM2, DSMX, AS3X, ModelMatch, Bind-N-Fly, BNF, the BNF logo, are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. All other trademarks, service marks and logos are property of their respective owners.
