Summary of Contents for BNF UMX MiG 15 DF

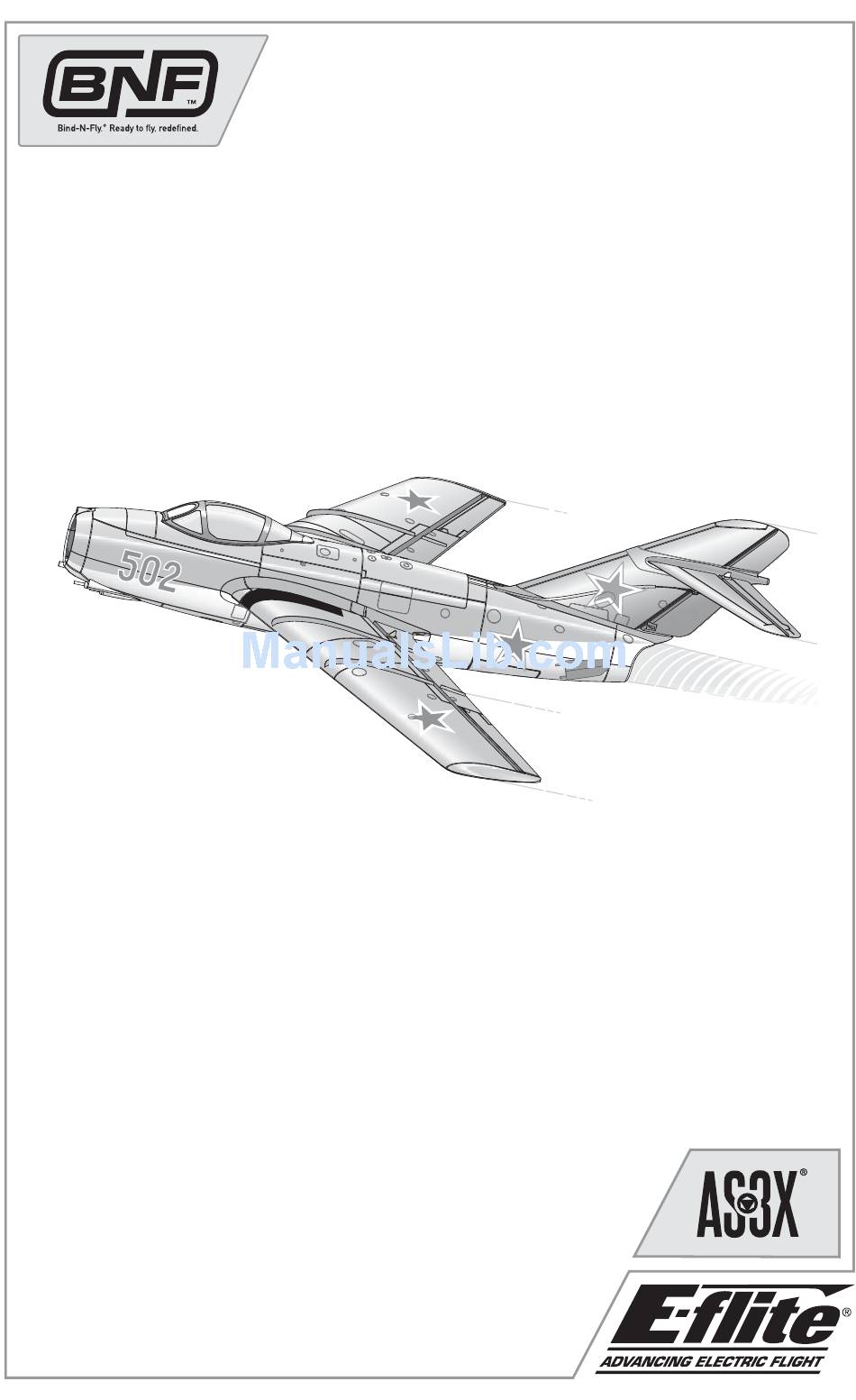

- Page 1 ™ MiG 15 DF Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni...
- Page 2 NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language: The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
-
Page 3: Table Of Contents
180m EDF system without the need of any unsightly cheater holes on the bottom of the model. And so that you also enjoy the most realistic jet fl ight experience possible, your UMX MiG 15 DF is also equipped with ®... -
Page 4: Prefl Ight Checklist
Prefl ight Checklist 1. Charge fl ight battery. 6. Set dual rates and exponential. 2. Install fl ight battery in aircraft 7. Adjust center of gravity. (once it has been fully charged). 8. Perform a radio system Range Check. 3. -
Page 5: Charging The Battery
Charging the Battery Your aircraft comes with a 2-Cell 7.4V 200mAh 25C Li-Po battery and a Celectra ™ 2S 7.4V DC Li-Po Charger that requires a 12V (11V–14V) DC power source. Refer to the battery warnings. It is recommended to charge the battery pack while you are inspecting the aircraft. -
Page 6: Transmitter And Receiver Binding
Transmitter and Receiver Binding Binding is the process of programming the receiver of the control unit to recognize the GUID (Globally Unique Identifi er) code of a single specifi c transmitter. You need to ‘bind’ your chosen Spektrum ® DSM2 ®... -
Page 7: Arming The Esc
Arming the ESC Arming the ESC also occurs after binding as previously described, but subsequent connection of a fl ight battery requires the steps below. Lower throttle and throttle Install fl ight battery and Keep plane immobile trim to lowest settings. and away from wind for connect it to the ESC. -
Page 8: Control Centering
Control Centering Before the fi rst fl ights, or in the event of an accident, make sure the fl ight control surfaces are centered. Adjust the linkages mechanically if the control surfaces are not centered. Use of the transmitter sub-trims may not correctly center the aircraft control surfaces due to the mechanical limits of linear servos. -
Page 9: Dual Rates And Expos
Dual Rates and Expos To obtain the best fl ight performance, we High Rate Low Rate recommend using a DSM2/DSMX radio capable of Dual Rates. The suggested settings shown here Aileron 100% are the recommended starting settings. Adjust Elevator 100% according to the individual preferences after the initial fl... -
Page 10: Adjusting Center Of Gravity (Cg)
Adjusting Center of Gravity (CG) The CG location is 58mm back from leading edge The battery tray is oversized to allow for Center of of the wing at the root. This CG location has been Gravity adjustment. Start by placing the battery near determined with the included 2S 200mAh 7.4V the rear edge of the battery tray with the connector Li-Po battery. -
Page 11: Flying Tips And Repairs
Flying Tips and Repairs Range Check your Radio System Landing After fi nal assembly, range check the radio system Always land into the wind. Fly the landing pattern with the aircraft. Refer to your specifi c transmitter with a slightly nose high attitude. Use throttle instruction manual for range test information. -
Page 12: Installing Optional Cannons
Installing Optional Cannons 1. Install the cannons in the nose of your aircraft as shown. Use the sharp end of the cannons to make a hole in the foam of each location. The cannons can be glued in or flown with just a friction fit. -
Page 13: Service Of Power Components
Service of Power Components Disassembly CAUTION: DO NOT handle the rotor or motor while the fl ight battery is connected. Personal injury could result 1. The canopy hatch is secured to the fuselage using double-sided tape under the outside edge. Carefully remove the canopy hatch, the screw (A) and nose gear arm (B);... -
Page 14: Troubleshooting Guide
Troubleshooting Guide AS3X Problem Possible Cause Solution Control surfaces not Control surfaces may not have been Center control surfaces mechanically by at neutral position mechanically centered from factory adjusting the U-bends on control linkages when transmitter Aircraft was moved after the fl ight battery Disconnect and reconnect the fl... -
Page 15: Troubleshooting Guide (Continued)
Troubleshooting Guide (Continued) Problem Possible Cause Solution Control surface does Control surface, control horn, linkage or Replace or repair damaged parts and adjust not move servo damage controls Wire damaged or connections loose Do a check of wires and connections, connect or replace as needed Flight battery charge is low Fully recharge fl... -
Page 16: Limited Warranty
Limited Warranty What this Warranty Covers setup or use of the Product has been started, you must Horizon Hobby, Inc. (“Horizon”) warrants to the original contact your local distributor or Horizon directly. This will purchaser that the product purchased (the “Product”) will enable Horizon to better answer your questions and servi- be free from defects in materials and workmanship at the ce you in the event that you may need any assistance. -
Page 17: Warranty And Service Information
Compliance Information for the European Union Declaration of Conformity (in accordance with ISO/IEC 17050-1) No. HH2012030803 Product(s): EFL UMX Mig 15 EDF BNF Item Number(s): EFLU1680 Equipment class: The object of declaration described above is in conformity with the requirements of the specifi cations listed below, following the provisions of the European R&TTE directive 1999/5/EC and EMC Directive 2004/108/EC:... -
Page 18: Replacement Parts
MiG 15 BNF Zubehör accessoires Wing: UMX MiG 15 E-fl ite UMX MiG 15 UMX MiG 15 BNF -Aile Ala: UMX MiG 15 BNF EFLU1659 BNF: Tragfl ächen Tail Set w/Acc: UMX E-fl ite UMX MiG 15 UMX MiG 15 BNF -Set... -
Page 19: Optional Parts And Accessories
Optional Parts and Accessories Optionale Bauteile und Zubehörteile Piéces optionnelles et accessoires – Parti opzionali e accessori Part # • Nummer Description Beschreibung Description Descrizione Numéro • Codice Charger Plug Adapter: Ladekabel Adapter Prise d’adaptation Adattatore per la EFLA700UM chargeur: EFL carica: EFL Charger Plug Adapter: Ladekabel Adapter TP Prise d’adaptation... - Page 20 © 2012 Horizon Hobby, Inc. UMX, AS3X, E-fl ite, Delta-V, JR, Celectra, DSM, DSM2, ModelMatch and Bind-N-Fly are trademarks or registered trademarks of Horizon Hobby, Inc. DSMX is a trademark of Horizon Hobby, Inc., registered in the U.S.. The Spektrum trademark is used with permission of Bachmann Industries, Inc. Futaba is a registered trademark of Futaba Denshi Kogyo Kabushiki Kaisha Corporation of Japan.
