Eltek Valere Theia He-t User Manual page 23

Stringbox with DC Switch and no DC Fuse Holders

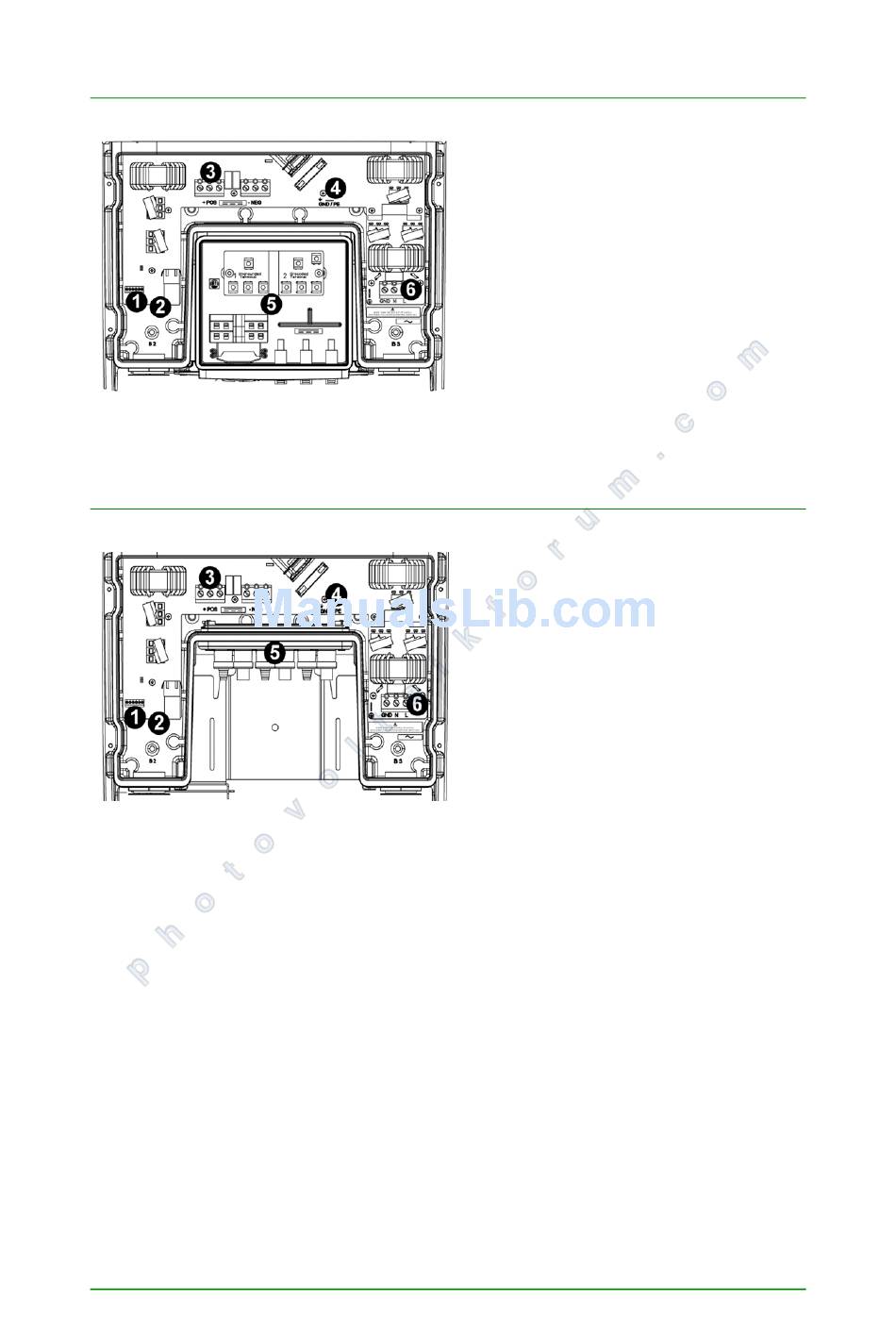

Figure 4.3.2: Customer connection area with
stringbox with DC switch
No Stringbox: Connector Panel
Figure 4.3.3: Customer connection area with
connector panel
User Manual THEIA HE-t String Inverters
1. CAN terminal
2. Ethernet connection
3. Internal DC terminal blocks
4. DC ground terminal
5. Stringbox with no fuse holders and DC
switch
6. AC terminal block
1. CAN terminal
2. Ethernet connection
3. Internal DC terminal blocks
4. DC ground terminal
5. Connector panel
6. AC terminal block
,
357115.013 Issue 1.0, 2011 April
