CAUTION: Use the correct conductors!
The conductors must be listed for PV applications and the site environment and
have the correct color coding to avoid material damage and bodily harm.
• To ensure safe and efficient installation, maintenance and repairs the insulation color-
coding of the electrical conductors must be understood. Ensure compliance with the local
and national electrical regulations!
• Lead the conductors away from objects that can damage the insulation (sharp edges etc.).

4.3.2. Connection Area

The DC connections can be configured in three different ways; either by using a stringbox
with DC fuse holders, a stringbox with no DC fuse holders or a connector panel. The
configuration of the AC connections and the network connections are the same regardless
of the different DC connection options.
Prior to the electrical connection the inverter lower cover must be removed (See
Inverter Structure).
Stringbox with DC Fuse Holders and DC Switch

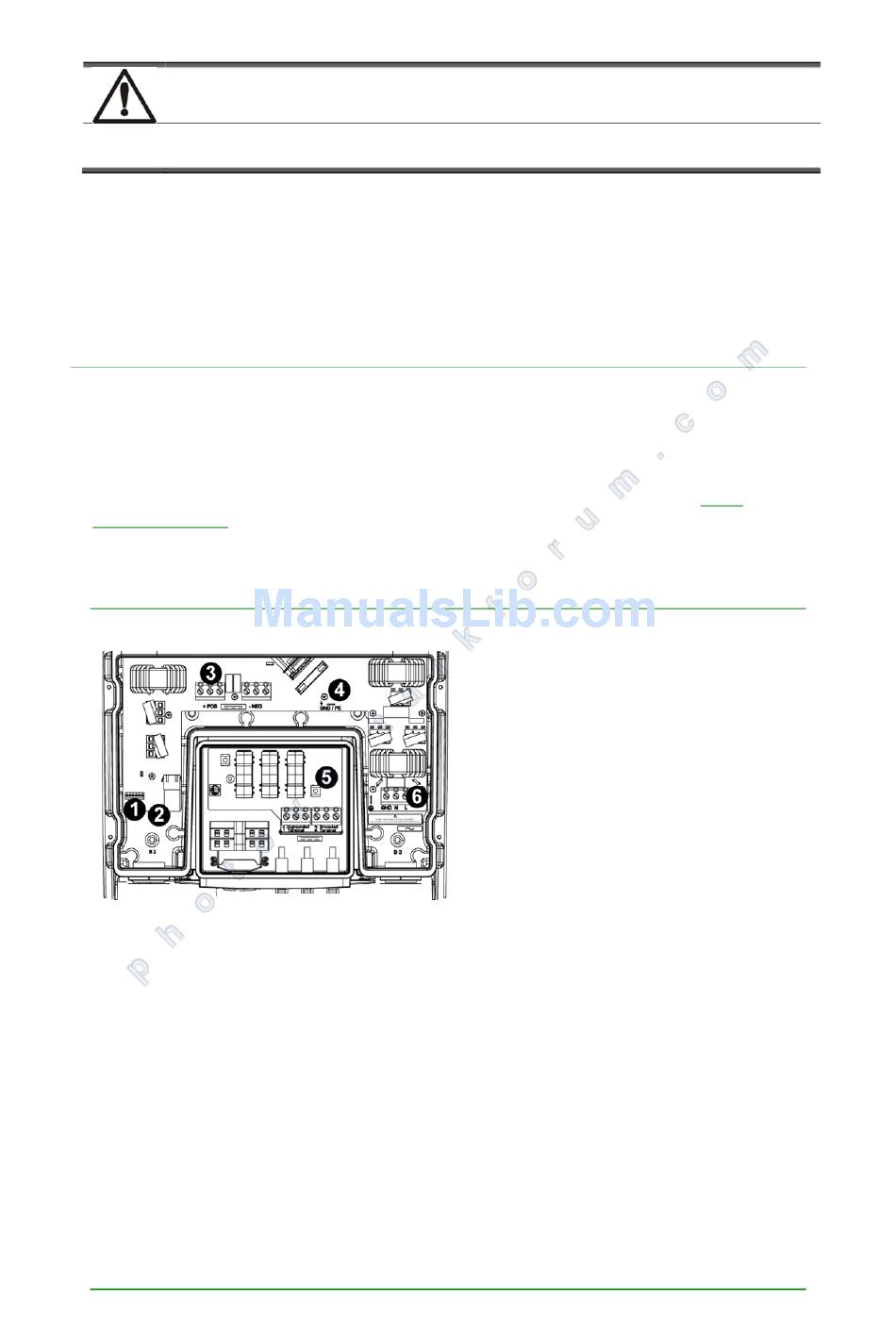

Figure 4.3.1: Customer connection area with
stringbox with DC fuse holders and DC switch
22
1. CAN terminal
2. Ethernet connection
3. Internal DC terminal blocks
4. DC ground terminal
5. Stringbox with fuse holders and DC
switch
6. AC terminal block
