4.2.2. Inverter
Attach the inverter to the mounting bracket as follows:

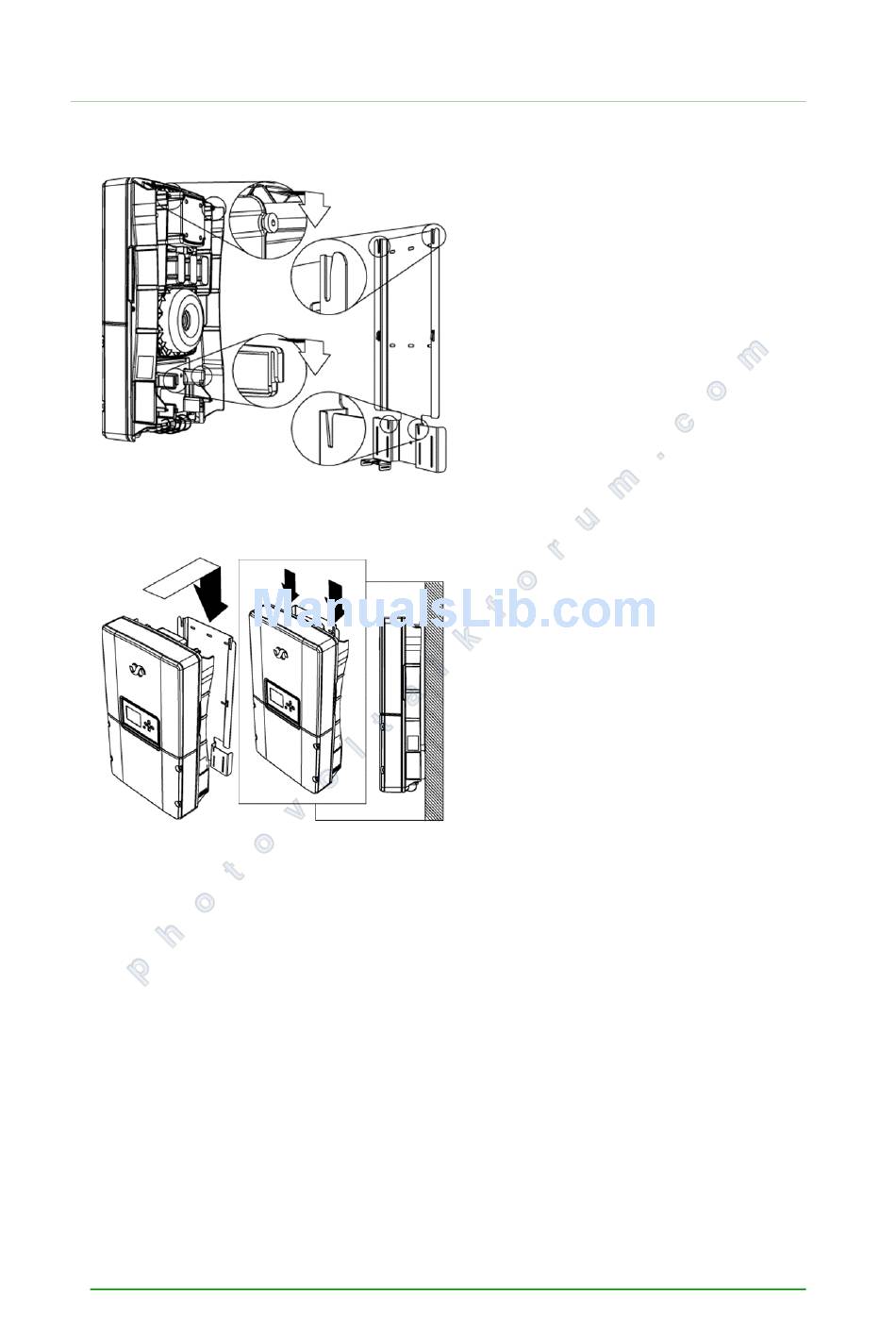

Figure 4.2.3: Hooks on the back of the inverter
Figure 4.2.4: Inverter onto bracket
User Manual THEIA HE-t String Inverters
• Locate the hooks for the carrier slots on the
upper back of the inverter.
• Locate the hooks for the steering slots on
the lower back of the inverter.
• With stringbox included: Use the locating
pin taps on the stringbox.
• Lift the inverter and guide the upper hooks
into the slots on the bracket.
• Align the lower hooks into the slots.
• Slide the inverter onto the bracket.
,
