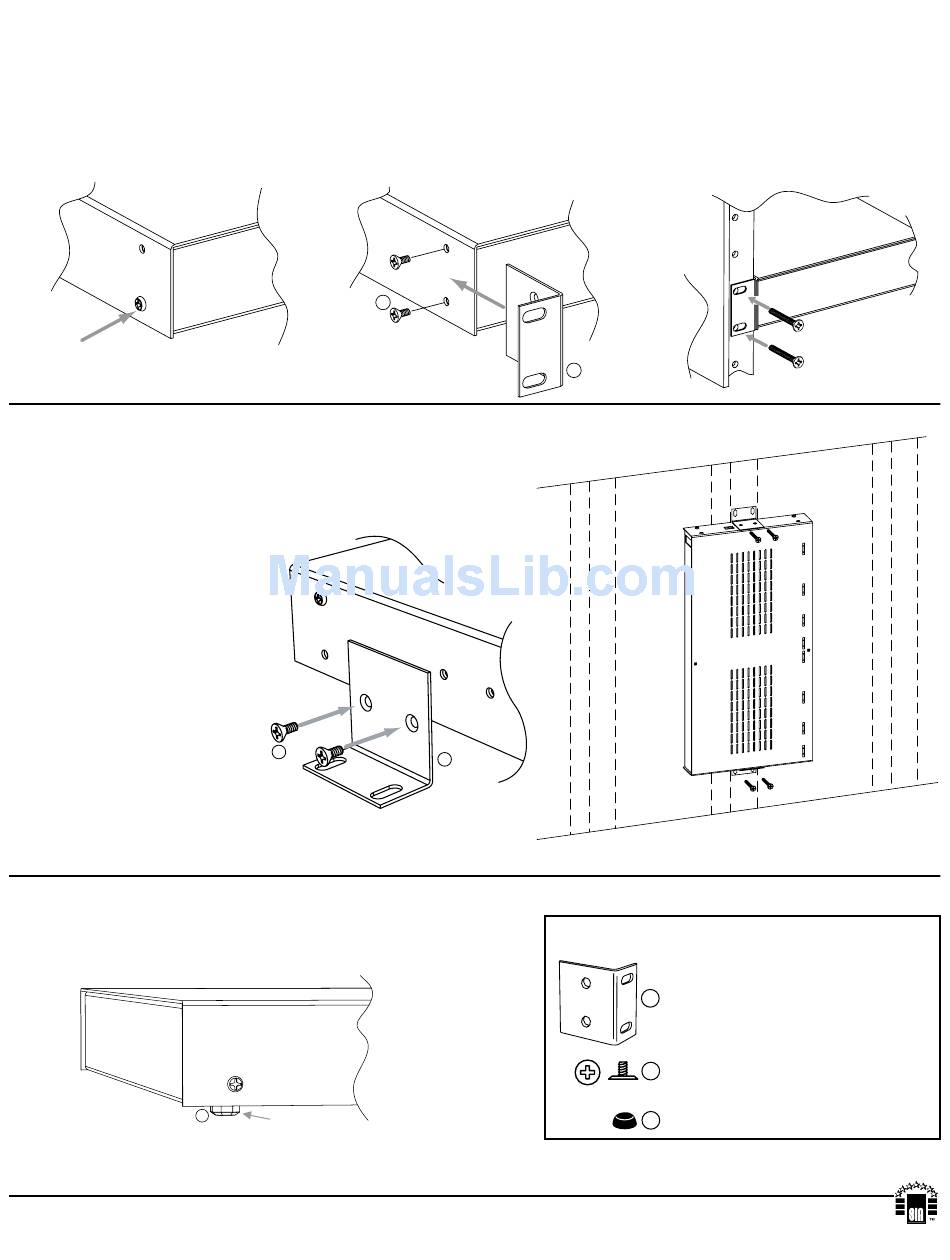

Rack Mount Installation

1- Remove and discard factory installed screws from both sides of rack chassis (Fig. 7a).
2- Install mounting brackets (A) on the left and right side of rack chassis using the
four (4) flat head screws (B) (included) (Fig. 7b).
3- Place unit into desired EIA 19" rack position and secure with mounting screws (not included) (Fig. 7c).
Fig. 7
Fig. 7a
Top
Remove

Wall Mount Installation

1- Install mounting brackets (A) on the left and right side of rack chassis using
four (4) flat head screws (B) (included) (Fig. 8a).
2- Place unit at desired location and secure with mounting screws
(not included) (Fig. 8b).
Caution: It is necessary to
make sure mounting screws
are securely fastened to a
beam when installing the
unit vertically.

Shelf Installation

1- Position and affix rubber pads (C) (included) at each
corner on the bottom of the unit (Fig. 9).
2- Place unit in desired location.
Fig. 9
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
website: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A.
IIHubWayEX16S
- 8 -

Mounting Options:

Fig. 7b
Front
Left
Fig. 8
Fig. 8a
B
Left Side
C
Rubber Pad
Top
Front
Left
B
Fig. 8b
A
C19O
Fig. 7c
A
Dotted lines indicate studs
behind sheetrock.
Mounting Hardware
Two (2) mounting brackets
A
Six (6) flat head screws
B
for mounting brackets.
Four (4) rubber pads.
C
Top
Front Left
(Included):
MEMBER
HubWayEX16S Active Hub Unit
