Rack Mount Installation; Mounting Options; Wall Mount Installation; Shelf Installation - Altronix HubWayLD8DS Installation Manual

Rack Mount Installation

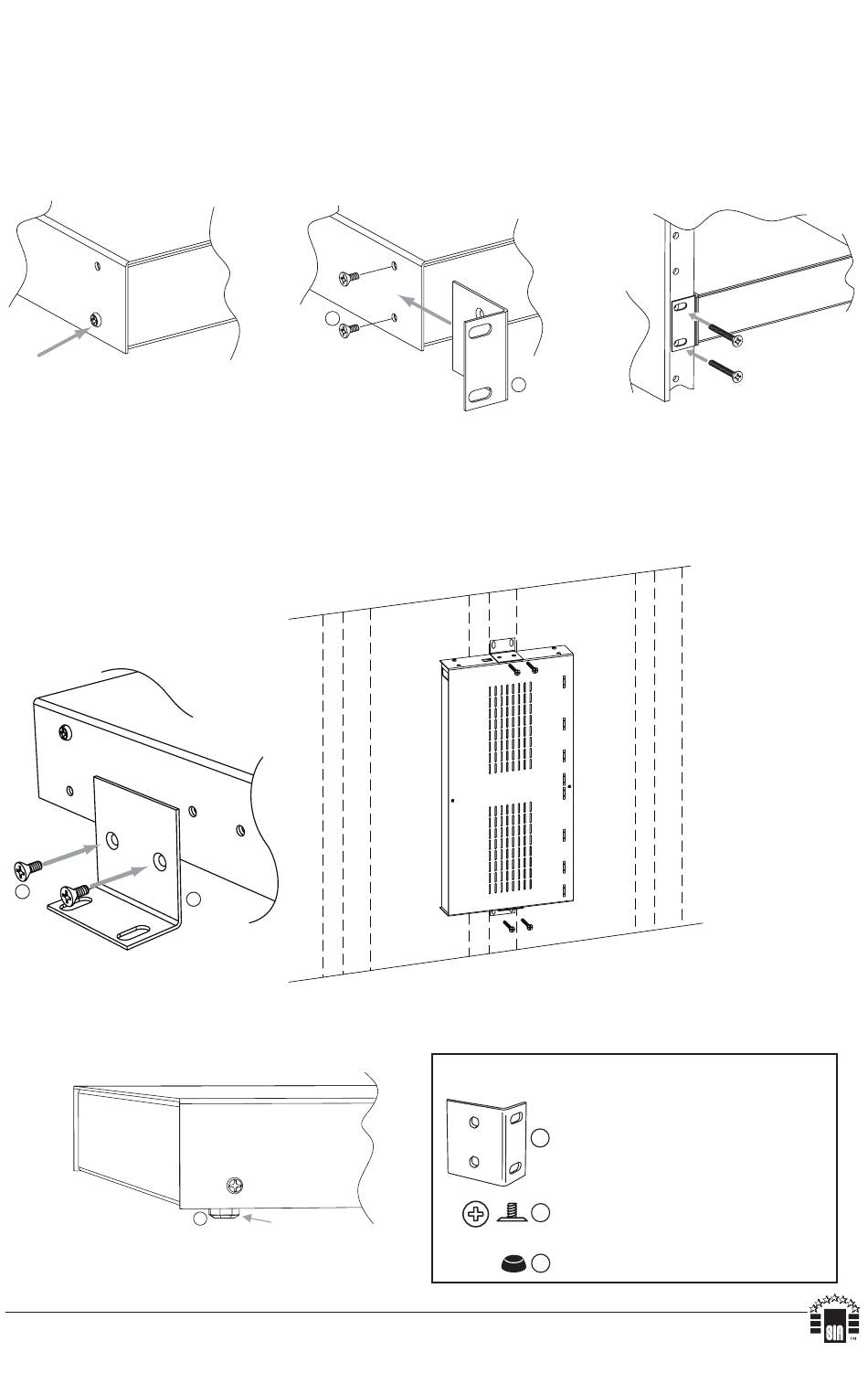

1. Remove and discard factory installed screws from both sides of rack chassis (Fig. 6a).
2. Install mounting brackets (A) on the left and right side of rack chassis using the four (4) flat head screws (B)
(included) (Fig. 6b).
3. Place unit into desired EIA 19" rack position and secure with mounting screws (not included) (Fig. 6c).
Fig. 6
Fig. 6a
Top
Front
Left
Remove

Wall Mount Installation

1. Install mounting brackets (A) on the left and right side of rack chassis using four (4) flat head screws (B)
(included) (Fig. 7a).
2. Place unit at desired location and secure with #6 size screws or larger (not included) (Fig. 7b).
Caution: It is necessary to make sure mounting screws are securely fastened
to a beam when installing the unit vertically.
Fig. 7
Fig. 7a
B

Shelf Installation

1- Position and affix rubber pads (C) (included) at each corner on the bottom of the unit (Fig. 8).
2- Place unit in desired location.
Fig. 8
