Quooker PRO3-VAQ E Installation Manual

Hide thumbs Also See for PRO3-VAQ E:

Advertisement

Table of Contents

Installation guide VAQ E
Before installing read this guide first

Advertisement

Table of Contents
loading

Related Manuals for Quooker PRO3-VAQ E

Summary of Contents for Quooker PRO3-VAQ E

  • Page 1 Installation guide VAQ E Before installing read this guide first...
  • Page 2 13 amp socket, water supply and waste. The Quooker tank must be fitted in an upright position. If the tank is to be fitted in a cabinet with drawers, an optional bracket can be purchased to suspend the tank from the cabinet wall.

  • Page 3: Technical Specifications

    Technical specifications Tank PRO3-VAQ E PRO7-VAQ E Voltage 230 V 230 V Wattage* 1600 W 2900 W Capacity 3 litres 7 litres Heating-up time* 10 minutes 15 minutes Standby power consumption* 10 W 10 W Tank height 40 cm 47 cm...

  • Page 4: Contents Of The Pack

    Fusion tap, small washers, brass fixing plate, fixing nut, white tap support (for thin work tops) and two inlet hose screens 3. Quooker inlet combination 4. Pressure reducing valve 5. PVC connector, Quooker drill bit, large fibre washers and waste hose - Brochure, installation guide and ‘Tips for use’...
  • Page 5 Overview of Nordic tap installation It is recommended that you install the Quooker in the following order: A. Drilling hole B1. Fitting Nordic tap C. Connecting water D. Connecting waste E1. Connecting tank with Nordic tap NOTE: Bear in mind that the tank, inlet combination, mixing valve and socket must remain accessible for servicing.

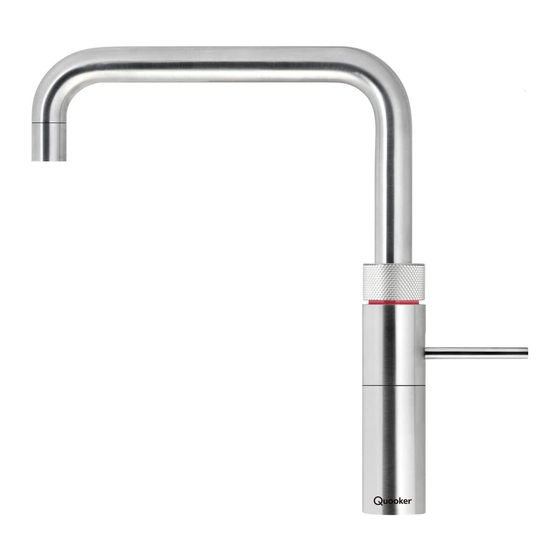

  • Page 6 Overview of Fusion tap installation It is recommended that you install the Quooker in the following order: A. Drilling hole B2. Fitting Fusion tap C. Connecting water D. Connecting waste E2. Connecting tank with Fusion tap NOTE: Bear in mind that the tank, inlet combination, mixing valve and socket...
  • Page 7 Drilling hole • NOTE: The tap hole for the Nordic boiling-water tap should be 32 mm in diameter. The Fusion tap hole should be 35 mm in diameter. • For drilling the hole for the Fusion tap, see step 3 below. •...
  • Page 8 Fitting Nordic tap • NOTE: The total length of the hose between the boiling-water tap and tank is only 70 cm. The tank must therefore be fitted close to the tap. Extension hoses are available in different lengths but are not normally required. •...

  • Page 9: Connecting Hoses

    Position the brass fixing plate around the hoses. Screw the fixing nut onto the tap thread. Adjust the position of the tap to ensure that the Quooker logo is facing the user. When the handle is in the cold position, it will be parallel to the edge of the work top.

  • Page 10: Connecting Water

    Connecting water • NOTE: The VAQ E operates under mains water pressure and must always be fitted with the supplied inlet combination and pressure reducing valve. • The Nordic boiling-water tap or the Fusion tap must be installed according to the locally applicable regulations.

  • Page 11: Inlet Combination

    Connecting waste The Quooker tank releases expansion water via the inlet combination which is fed into the grey funnel. The funnel is connected to the waste pipe via the supplied waste hose. The drilling kit, also supplied, can be used to make a connection to the waste pipe.

  • Page 12: Electrical Connection

    Connecting tank with Nordic tap • The Quooker tank is supplied with a UK 3 pin plug and requires a standard 13 amp earthed socket. • If the mains lead is damaged it should be replaced by the manufacturer, their agent or a qualified technician to prevent hazard.
  • Page 13 Connecting tank with Fusion tap • The Quooker tank is supplied with a UK 3 pin plug and requires a standard 13 amp earthed socket. • If the mains lead is damaged it should be replaced by the manufacturer, their agent or a qualified technician to prevent hazard.

  • Page 14: Switching Off

    Close the main shut-off valve or the stop valve on the inlet combination (small grey knob). Check that the Quooker is depressurized by opening the Nordic boiling-water tap or the boiling-water handle of the Fusion tap again. If it is depressurized, no water should flow out of it.

  • Page 15: Declaration Of Conformity

    Declaration of conformity Quooker B.V., Staalstraat 13, 2984 AJ Ridderkerk (The Netherlands) herewith declares, on our own responsibility, that the products Quooker PRO3-VAQ E and PRO7-VAQ E are in accordance with the conditions of the following directives: - 2006/95/EC Low voltage Directive...
  • Page 16 Q U O O K E R U K L T D 3 Waterpark Hall Montpellier Mews Salford M7 4ZY (UK) P +44 (0)207 9233355 F +44 (0)207 9001590 E-mail info@quooker.co.uk Internet quooker.co.uk...
