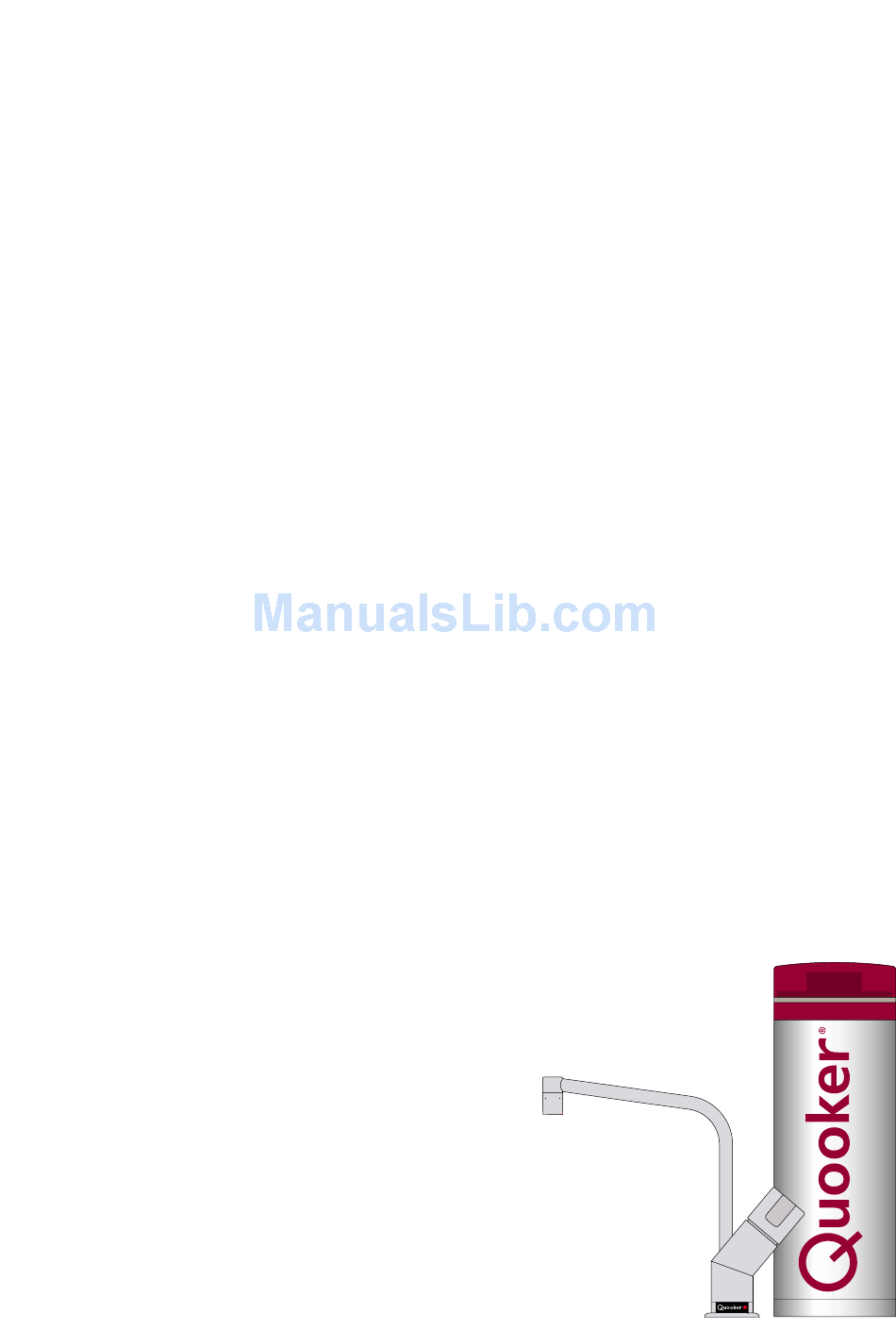

  • Page 1: Installation Guide

    Installation guide Before installing read this guide first...
  • Page 2: Technical Specifications

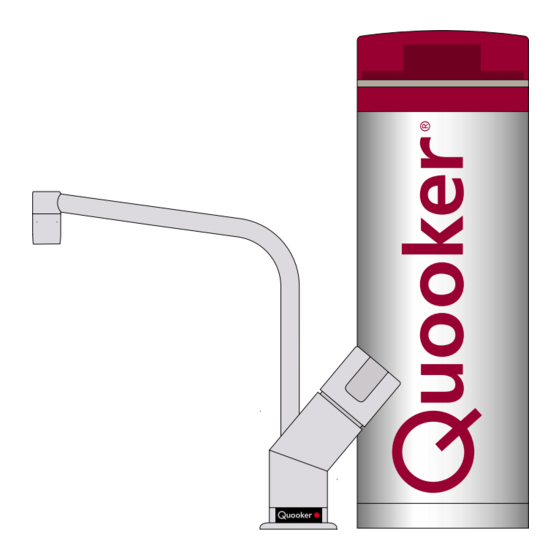

    Introduction The operation of the Quooker The Quooker system consists of a small tank under the sink which is connected to the boiling-water tap. This tank is connected to the water by a so-called inlet combination. The water is heated electrically to approx. 110°C and is kept at this temperature.
  • Page 3: Content Of The Pack

    Content of the pack 1. Quooker tank 2. Quooker tap 3. Quooker inlet combination 4. Quooker drill bit, fibre rings, PVC nipple and drain hose 5. Quooker brochure 6. Installation guide and tips for use...
  • Page 4 Overview of Quooker installation It is recommended that you install the Quooker in the following order: A. Drill hole B. Fit tap C. Connect water D. Connect drain E. Connect tank...
  • Page 5 1 Drilling hole Allowing for the basin and the mixer tap, select a suitable location for the Quooker tap (see examples). Using the correct drill bit, drill a hole of 32-35 mm in the sink. ±70 Hole Ø32-35...
  • Page 6 Fitting tap • N.B. The total length of the boiling water hose is only 50 cm. The tank must therefore be fitted close to the tap. An extension hose is available but is not normally required. 1 Tap through sink Slacken the brass sink nut.
  • Page 7: Connecting Water

    Connecting water • N.B. The Quooker operates under water supply pressure and must always be fitted with the inlet combination (supplied). • The Quooker boiling-water tap must be connected according to the locally applicable regulations. • Position the inlet combination at such a height that the difference in height between it and the drain is the maximum possible to allow the expansion water to run off (see D4).
  • Page 8 Connecting drain The Quooker tank releases expansion water via the inlet combination during heating, this water being fed into the transparent funnel. The funnel can easily be connected to the drain by means of the drain hose supplied. The drilling kit also supplied can be used to make a connection to the drain pipe.
  • Page 9: Electrical Connection

    Connecting tank • N.B. Do not switch on the Quooker until the tank is filled with water. • The Quooker tank is supplied with a 3-core mains cord with earthed plug. All that is required is an earthed socket close to the appliance.
  • Page 10 P E T E R I B . V . Staalstraat 13 2984 AJ Ridderkerk (NL) P.O. Box 155 2980 AD Ridderkerk (NL) Phone +31 (0)180 420488 Fax +31 (0)180 428809 Internet www.quooker.nl E-mail info@quooker.nl...

This manual is also suitable for:

Pro7-vaqPro3-vaq
