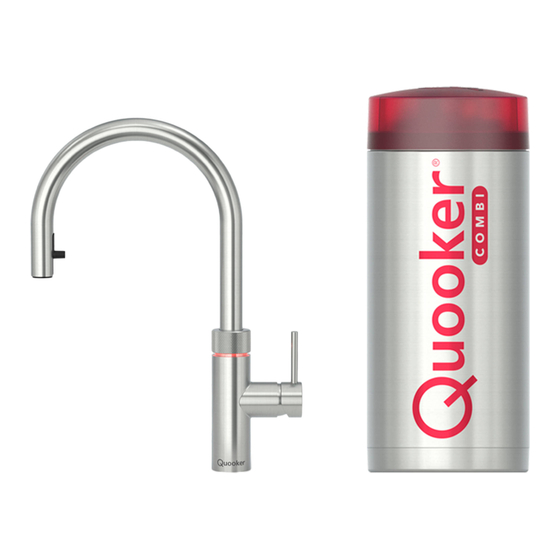

Summary of Contents for Quooker Combi+
- Page 1 Installation guide COMBI+ Before installing read this guide first...
- Page 2 13 amp socket, water supply and waste pipe. The Quooker tank must be fitted in an upright position. If the tank is to be fitted in a cabinet with drawers, an optional bracket can be purchased to suspend the tank from the cabinet wall.
- Page 3 Make sure you let the tank cool off adequately before disconnecting it. The fastest way to do this is as follows: turn off the Quooker, but leave the plug in the socket. Then open the boiling-water tap and turn it off once the water runs cold.
-
Page 4: Declaration Of Conformity
Declaration of conformity Quooker Nederland b.v., Staalstraat 13, 2984 AJ Ridderkerk (The Netherlands) herewith declares, on our own responsibility, that the products Quooker COMBI and Quooker COMBI+ are in accordance with the conditions of the following directives: - 2014/35/EU Low Voltage Directive (LVD) -
Page 5: Technical Specifications
Technical specifications Tank COMBI+ Voltage 230 V Wattage* 2200 W Capacity 7 litres Heating-up time* 20 minutes Standby power consumption* 10 W Tank height 47 cm Required working height 54 cm Tank diameter 20 cm Min. mains pressure 200 kPa (2 bar) Max. - Page 6 Contents of the pack 1. - Nordic single tap, packing ring, centring ring, steel ring, brass sink nut and two screws - or Fusion tap, packing ring, brass fixing plate, fixing nut, white tap support (for thin work tops) and two inlet hose screens - or Flex tap, hoses, fibre washer(s), steel washer, screw ring with two screws, coupling with boiling water hose, white tap support, two inlet hose screens and quick-release tool.
- Page 7 2. COMBI+ tank 3. Quooker inlet combination, waste hose, Quooker drill bit, PVC connector and large packing rings 4. Mixing valve 5. T-joint, pressure reducing valve ‘warm’ with 15-12 adapter, pressure reducing valve ‘cold’, 15 mm olive and adaptor sleeve...
- Page 8 Overview of Nordic single tap installation It is recommended that you install the Quooker in the following order: A. Drilling hole B1. Fitting Nordic single tap C. Connecting water D. Connecting waste E. Connecting tank Note: Bear in mind that the tank, inlet combination, mixing valve and socket must remain accessible for servicing.
- Page 9 Overview of Fusion tap installation It is recommended that you install the Quooker in the following order: A. Drilling hole B2. Fitting Fusion tap C. Connecting water D. Connecting waste E. Connecting tank Note: Bear in mind that the tank, inlet combination, mixing valve and socket must remain accessible for servicing.
- Page 10 Overview of Flex tap installation It is recommended that you install the Quooker in the following order: A. Drilling hole B3. Fitting Flex tap C. Connecting water D. Connecting waste E. Connecting tank Note: Bear in mind that the tank, inlet combination, mixing valve and socket must remain...
- Page 11 Drilling hole • Note: The tap hole for the Nordic single tap should be 32 mm in diameter. The Fusion and Flex tap hole should be 35 mm in diameter. • The Nordic single tap should ideally be positioned at the corner of the sink to enable use above the sink or the work top.
- Page 12 Fitting Nordic single tap • The total length of the hose between the boiling-water tap and tank is only 70 cm. The tank must therefore be fitted close to the tap. Extension hoses are available in different lengths but are not normally required. •...
- Page 13 Screw the fixing nut onto the tap thread. Adjust the position of the tap to ensure that the Quooker logo is facing the user. When the handle is in the cold position, it will be parallel to the edge of the work top.
- Page 14 Fitting Flex tap • When installing the reservoir it is necessary to take into account that the Flex tap coupling must be able to move up and down freely. 1. Fit hoses Fit the hot, cold and mixer water hose to the tap.
- Page 15 5. Attach the coupling Click the pull-out hose into the coupling’s quick-release fitting while ensuring that the hose pillar is fully inserted. 6. Fit the mixer water hose Click the mixer water hose into the coupling’s quick-release fitting while ensuring that the hose pillar is fully inserted.
-
Page 16: Connecting Water
Connecting water • The COMBI+ operates under mains water pressure and must always be fitted with the supplied inlet combination. • The boiling-water tap must be installed according to the locally applicable regulations. • The inlet combination will release drips of expansion water while the water in the tank is heating up in order to regulate the pressure inside the tank. - Page 17 Connecting waste The water in the Quooker tank expands as it heats up. This causes the pressure in the tank to increase with the advantage that the temperature of the water in the tank exceeds its normal boiling point and the water leaves the tap already boiling. During heating, the inlet combination discharges expansion water that ends up in the waste pipe via the supplied waste hose.
- Page 18 Connecting tank • The Quooker tank is supplied with a UK 3 pin plug and requires a standard 13 amp earthed socket. • If the mains lead is damaged it should be replaced by the manufacturer, their agent or a qualified technician to prevent hazard.
- Page 19 3. Isolating Close the main shut-off valve or the stop valve on the inlet combination (small grey knob). Check that the Quooker is On/off depressurized by opening the Nordic single tap or the boiling-water handle of the Fusion or Flex tap again. If it is depressurized, no water should flow out of it.
- Page 20 Quooker Hong Kong Limited 10/F, YF Life Tower 33 Lockhart Road Wanchai Hong Kong info@quooker.hk www.quooker.hk...
