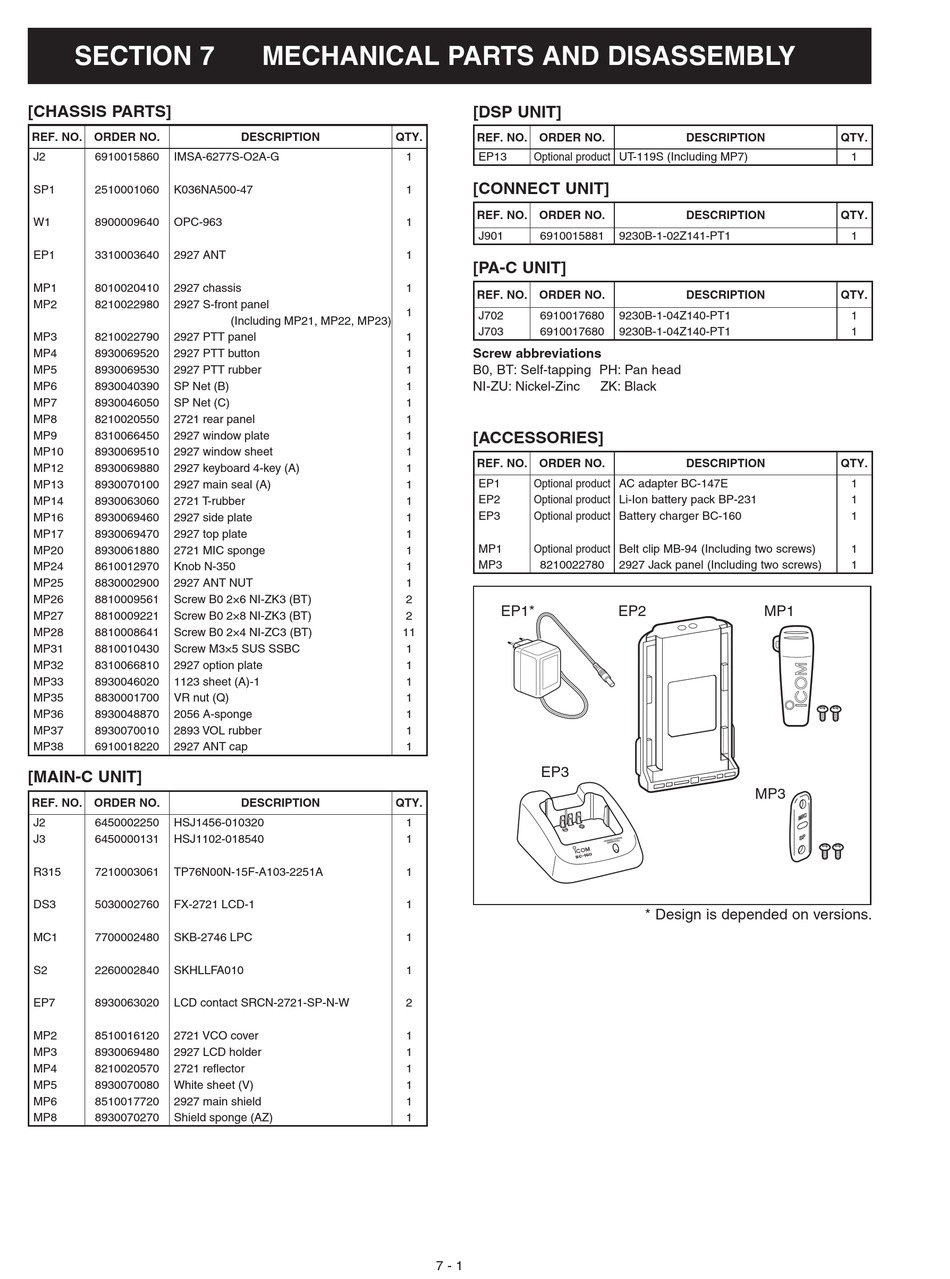

SECTION 7
[CHASSIS PARTS]
REF. NO. ORDER NO.
J2 6910015860 IMSA-6277S-O2A-G
SP1 2510001060 K036NA500-47
W1 8900009640 OPC-963
EP1 3310003640 2927 ANT
MP1 8010020410 2927 chassis
MP2 8210022980 2927 S-front panel
MP3 8210022790 2927 PTT panel
MP4 8930069520 2927 PTT button
MP5 8930069530 2927 PTT rubber
MP6 8930040390 SP Net (B)
MP7 8930046050 SP Net (C)
MP8 8210020550 2721 rear panel
MP9 8310066450 2927 window plate
MP10 8930069510 2927 window sheet
MP12 8930069880 2927 keyboard 4-key (A)
MP13 8930070100 2927 main seal (A)
MP14 8930063060 2721 T-rubber
MP16 8930069460 2927 side plate
MP17 8930069470 2927 top plate
MP20 8930061880 2721 MIC sponge
MP24 8610012970 Knob N-350
MP25 8830002900 2927 ANT NUT
MP26 8810009561 Screw B0 2×6 NI-ZK3 (BT)
MP27 8810009221 Screw B0 2×8 NI-ZK3 (BT)
MP28 8810008641 Screw B0 2×4 NI-ZC3 (BT)
MP31 8810010430 Screw M3×5 SUS SSBC
MP32 8310066810 2927 option plate
MP33 8930046020 1123 sheet (A)-1
MP35 8830001700 VR nut (Q)
MP36 8930048870 2056 A-sponge
MP37 8930070010 2893 VOL rubber
MP38 6910018220 2927 ANT cap
[MAIN-C UNIT]
REF. NO. ORDER NO.
J2 6450002250 HSJ1456-010320
J3 6450000131 HSJ1102-018540
R315 7210003061 TP76N00N-15F-A103-2251A
DS3 5030002760 FX-2721 LCD-1
MC1 7700002480 SKB-2746 LPC
S2 2260002840 SKHLLFA010
EP7 8930063020 LCD contact SRCN-2721-SP-N-W
MP2 8510016120 2721 VCO cover
MP3 8930069480 2927 LCD holder
MP4 8210020570 2721 reflector
MP5 8930070080 White sheet (V)
MP6 8510017720 2927 main shield
MP8 8930070270 Shield sponge (AZ)
MECHANICAL PARTS AND DISASSEMBLY
DESCRIPTION QTY.
1
1
1
1
1
1
(Including MP21, MP22, MP23)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
11
1
1
1
1
1
1
1
DESCRIPTION QTY.
1
1
1
1
1
1
2
1
1
1
1
1
1

[DSP UNIT]

REF. NO. ORDER NO.
EP13 Optional product UT-119S (Including MP7)
[CONNECT UNIT]
REF. NO. ORDER NO.
J901 6910015881
[PA-C UNIT]
REF. NO. ORDER NO.
J702 6910017680
J703 6910017680
Screw abbreviations
B0, BT: Self-tapping PH: Pan head
NI-ZU: Nickel-Zinc ZK: Black
[ACCESSORIES]
REF. NO. ORDER NO.
EP1 Optional product AC adapter BC-147E
EP2 Optional product Li-Ion battery pack BP-231
EP3 Optional product Battery charger BC-160
MP1 Optional product Belt clip MB-94 (Including two screws)
MP3 8210022780
����
���
7 - 1
DESCRIPTION
DESCRIPTION
9230B-1-02Z141-PT1
DESCRIPTION
9230B-1-04Z140-PT1
9230B-1-04Z140-PT1
DESCRIPTION
2927 Jack panel (Including two screws)
��� ���
���
* Design is depended on versions.
QTY.
1
QTY.
1
QTY.
1
1
QTY.
1
1
1
1
1
