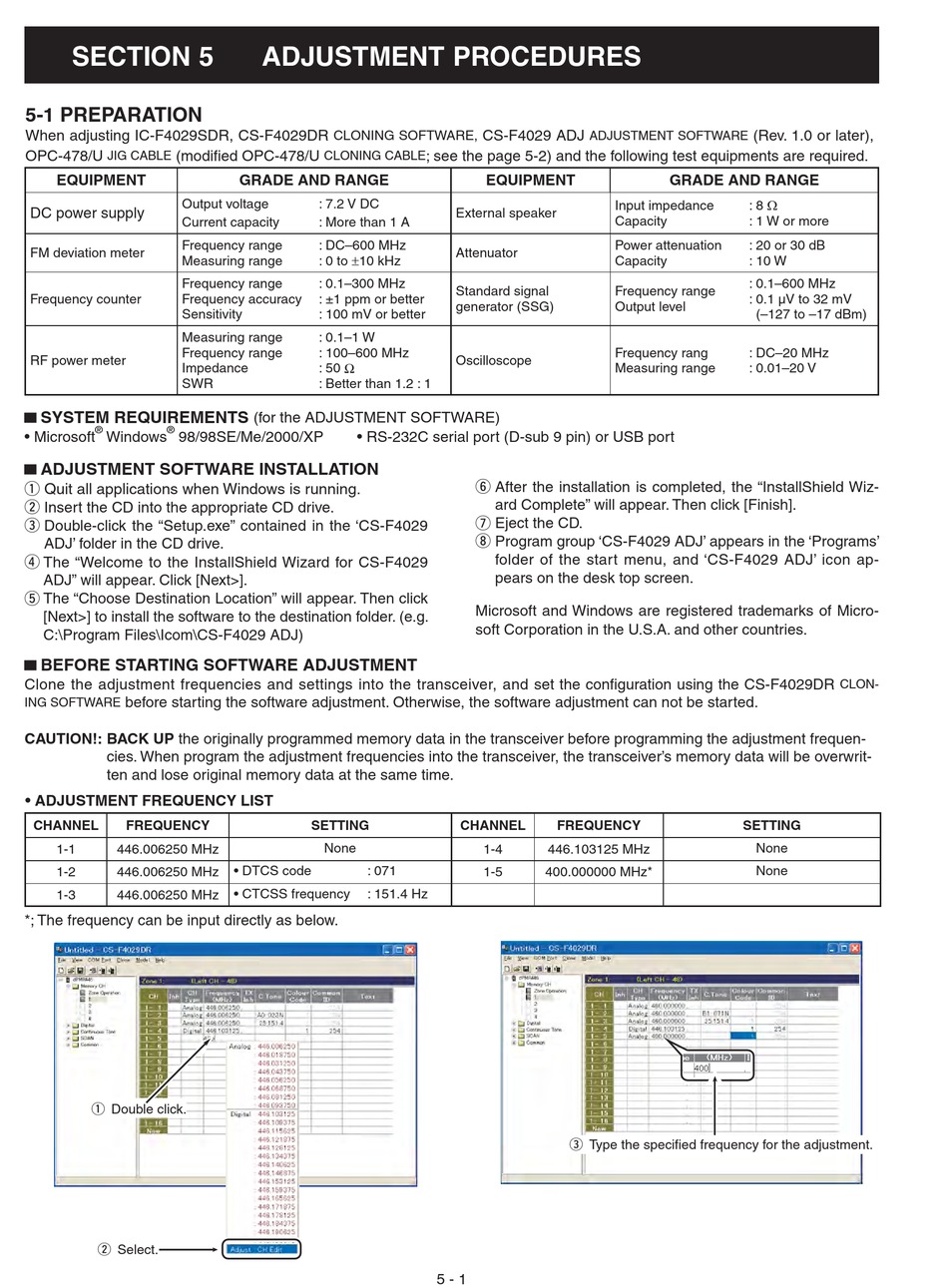

SECTION 5

5-1 PREPARATION

When adjusting IC-F4029SDR, CS-F4029DR
OPC-478/U (modifi ed OPC-478/U
JIG CABLE
EQUIPMENT
Output voltage
DC power supply
Current capacity
Frequency range
FM deviation meter
Measuring range
Frequency range
Frequency counter Frequency accuracy
Sensitivity
Measuring range
Frequency range
RF power meter
Impedance
SWR
▄ SYSTEM REQUIREMENTS
® ®
• Microsoft Windows 98/98SE/Me/2000/XP
▄ ADJUSTMENT SOFTWARE INSTALLATION
q Quit all applications when Windows is running.
w Insert the CD into the appropriate CD drive.
e Double-click the "Setup.exe" contained in the 'CS-F4029
ADJ' folder in the CD drive.
r The "Welcome to the InstallShield Wizard for CS-F4029
ADJ" will appear. Click [Next>].
t The "Choose Destination Location" will appear. Then click
[Next>] to install the software to the destination folder. (e.g.
C:\Program Files\Icom\CS-F4029 ADJ)
▄ BEFORE STARTING SOFTWARE ADJUSTMENT
Clone the adjustment frequencies and settings into the transceiver, and set the confi guration using the CS-F4029DR
before starting the software adjustment. Otherwise, the software adjustment can not be started.
ING SOFTWARE
CAUTION!: BACK UP the originally programmed memory data in the transceiver before programming the adjustment frequen-
cies. When program the adjustment frequencies into the transceiver, the transceiver's memory data will be overwrit-
ten and lose original memory data at the same time.
• ADJUSTMENT FREQUENCY LIST
CHANNEL FREQUENCY
1-1 446.006250 MHz
1-2 446.006250 MHz
1-3 446.006250 MHz
*; The frequency can be input directly as below.
q Double click.
w Select.

ADJUSTMENT PROCEDURES

CLONING SOFTWARE,
CLONING CABLE
GRADE AND RANGE
: 7.2 V DC
: More than 1 A
: DC–600 MHz
: 0 to ±10 kHz
: 0.1–300 MHz
: ±1 ppm or better
: 100 mV or better
: 0.1–1 W
: 100–600 MHz
: 50 Ω
: Better than 1.2 : 1
(for the ADJUSTMENT SOFTWARE)
• RS-232C serial port (D-sub 9 pin) or USB port
SETTING
None
• DTCS code : 071
• CTCSS frequency : 151.4 Hz
CS-F4029 ADJ
ADJUSTMENT SOFTWARE
; see the page 5-2) and the following test equipments are required.
EQUIPMENT
External speaker
Attenuator
Standard signal
generator (SSG)
Oscilloscope
y After the installation is completed, the "InstallShield Wiz-
ard Complete" will appear. Then click [Finish].
u Eject the CD.
i Program group 'CS-F4029 ADJ' appears in the 'Programs'
folder of the start menu, and 'CS-F4029 ADJ' icon ap-
pears on the desk top screen.
Microsoft and Windows are registered trademarks of Micro-
soft Corporation in the U.S.A. and other countries.
CHANNEL FREQUENCY
1-4 446.103125 MHz
1-5 400.000000 MHz*
e Type the specified frequency for the adjustment.
5 - 1
(Rev. 1.0 or later),
GRADE AND RANGE
: 8 Ω
Input impedance
Capacity : 1 W or more
Power attenuation : 20 or 30 dB
Capacity : 10 W
: 0.1–600 MHz
Frequency range
: 0.1 µV to 32 mV
Output level
(–127 to –17 dBm)
Frequency rang : DC–20 MHz
Measuring range : 0.01–20 V
SETTING
None
None
CLON-
