2. CONNECTOR OVERVIEW

2.1 CONNECTOR OVERVIEW

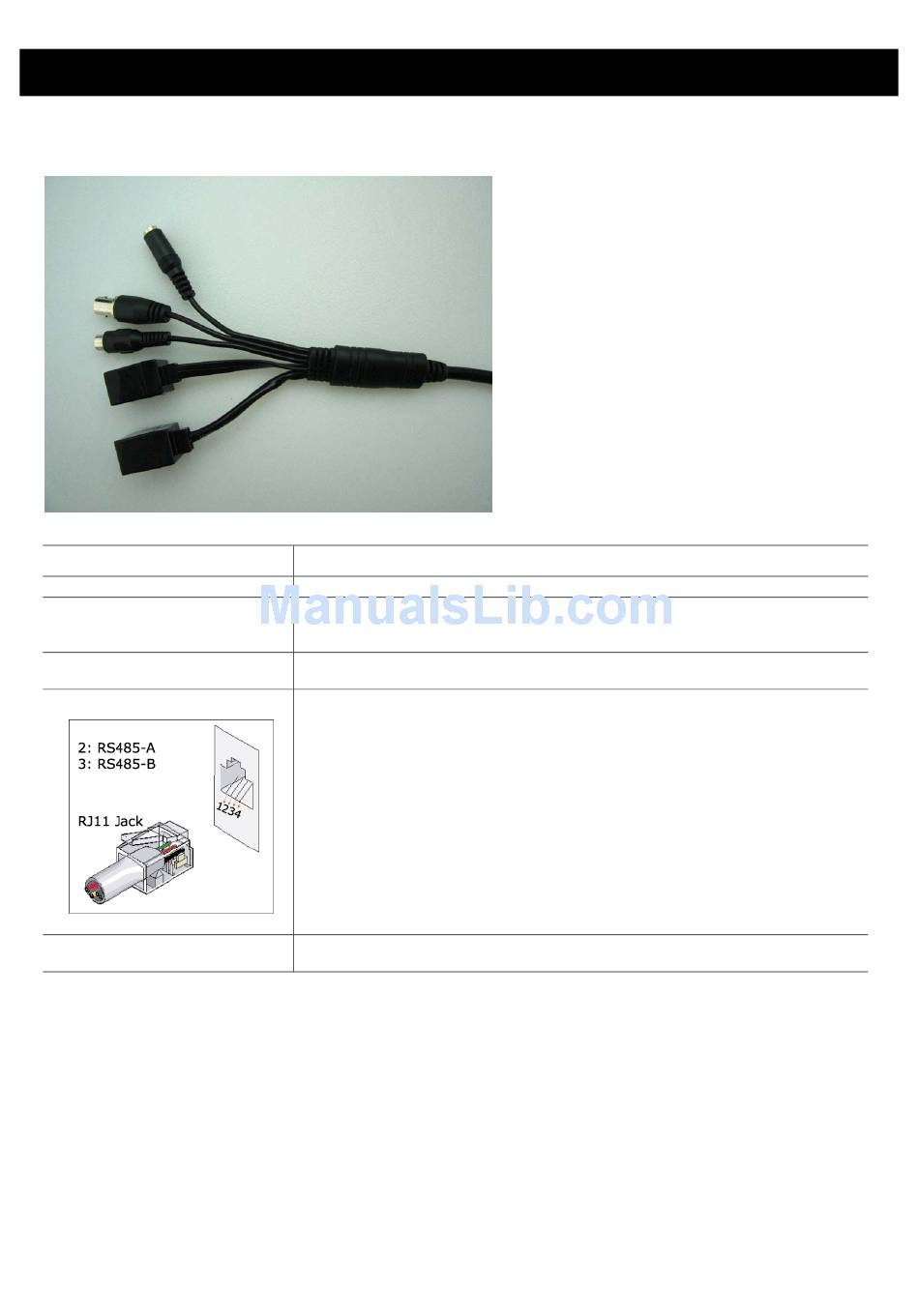

CONNECTOR
Power Connector
Video Output Connector
Audio Input Connector
RJ11 Connector
RJ45 Jack Connector
DESCRIPTION
Connect the DC 12V adapter for power supply.
Connect to the video input connector of your monitor with a video cable (i.e. a RCA line with the
BNC connector, or a coaxial line) for video output.
* The video cable is not included with the sales package.
Support the connection to an audio device, such as a microphone, for voice transmission of the
local side.
Get a RJ11 line with the proper length to your connection.
Different RJ11 line may have different line layout, so the connection might be different. If you
cannot control the PTZ network camera after connection, please reverse the RJ11 line layout and
try again.
Get a R45 network cable with the proper length to your connection. And connect the network
camera to the network.
