IR Bullet Camera User Manual

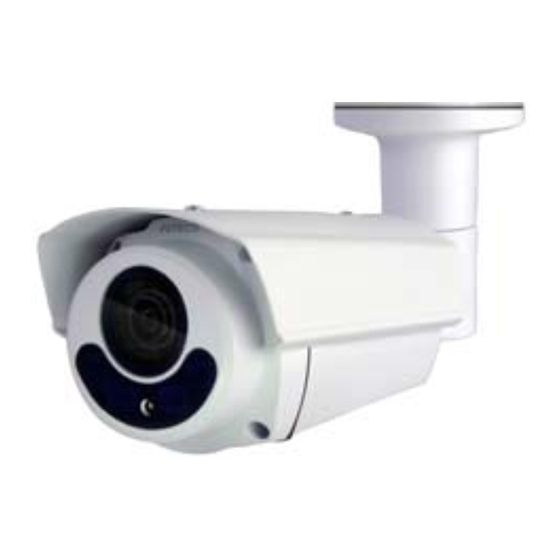

The product image shown above may differ from the actual product.
Please use this camera with a DVR which supports HD video recording.
Please read the instructions thoroughly before using the product.
C
A
U
T
I
O
N
:
C
A
U
T
I
O
N
:
To reduce the risk of electric shock, do not expose this apparatus to rain or moisture.
Only operate this apparatus from the type of power source indicated on the label.
The company shall not be liable for any damages arising out of any improper use, even if we have been advised of the possibility of
such damages.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence
of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
This exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
ROHS Announcement
All lead-free products offered by the company comply with the requirements of the European law on the Restriction
of Hazardous Substances (RoHS) directive, which means our manufacture processes and products are strictly
"lead-free" and without the hazardous substances cited in the directive.
The crossed-out wheeled bin mark symbolizes that within the European Union the product must be collected
separately at the product end-of-life. This applies to your product and any peripherals marked with this symbol. Do
not dispose of these products as unsorted municipal waste.
CE Mark
This apparatus is manufactured to comply with the radio interference.
The company does not warrant that this manual will be uninterrupted or error-free. We reserve the right to revise or
remove any content in this manual at any time.
C
A
U
T
I
O
N
C
A
U
T
I
O
N
R
I
S
K
O
F
E
L
E
C
T
R
I
C
S
H
O
R
I
S
K
O
F
E
L
E
C
T
R
I
C
S
H
C
K
O
C
K
796Z
d1306_V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ezum DGC1306 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Avtech Ezum DGC1306

  • Page 1 796Z IR Bullet Camera User Manual The product image shown above may differ from the actual product. Please use this camera with a DVR which supports HD video recording. Please read the instructions thoroughly before using the product. To reduce the risk of electric shock, do not expose this apparatus to rain or moisture. Only operate this apparatus from the type of power source indicated on the label.
  • Page 2: Package Content

    3. Manual adjustment of the brightness of the IR LEDs 4. Day and night 24-hour surveillance with IR effective distance up to 50 meters 5. IP66 for weather-proof application 6. Camera parameters adjustable when used with AVTECH HD CCTV DVR PACKAGE CONTENT ...
  • Page 3: Installation

    INSTALLATION Step 1: Loosen the screw as indicated below to move down the camera lens. Then, fasten the camera to the ceiling or wall where you want to install. 1. loosen a bit 2. Move down a bit Step 2: Adjust the viewing angle of the camera as indicated below. Vertical Rotate Horizontal...
  • Page 4 FOCAL LENGTH & FOCUS ADJUSTMENT This camera supports remote focal length and focal adjustment remotely from our HD CCTV DVR. On the DVR live view, click the channel which connects this camera to display in the full screen mode, and select to show the control icons: Click to zoom in on the image to the largest / zoom out on the image to its...
  • Page 5: Camera Parameters

    CAMERA PARAMETERS This camera series has its own configuration menu for more advanced settings. Note: The methods below are available only when the camera is used with our brand’s HD CCTV DVR. To know how to access this camera’s own menu via other brand’s DVR, please refer to the DVR’s user manual.
  • Page 6 MENU DESCRIPTION DAY / NIGHT MODE Use the external light sensor we added in the camera to detect the surrounding light condition and switch to color or B/W mode. If you’re not satisfying with the mode switch time, you can go to D TO N / N TO D to manually adjust the sensitivity.
  • Page 7 MENU DESCRIPTION 1/25 Manually choose the shutter speed you need for exposure. (automatic 1/30 exposure) 1/50 1/60 1/100 1/120 1/250 1/500 1/1000 1/3000 1/10000 Enable this function to fix the flicker situation. FLICKER OFF / 50HZ / 60HZ Adjust the image to compensate for an area that is overpowered by 0 ~ 16 brightness because of excessive light.
  • Page 8 MENU DESCRIPTION EFFECT COLOR GAIN 0 ~ 255 Set the level of color saturation. The more the value, the more saturated the color will be, but the more noise the image will get. COLOR HUE 0 ~ 71 Set the level of hue. SHARPNESS 0 ~ 255 Set the level of sharpness to enhance the clarity of image detail by...
