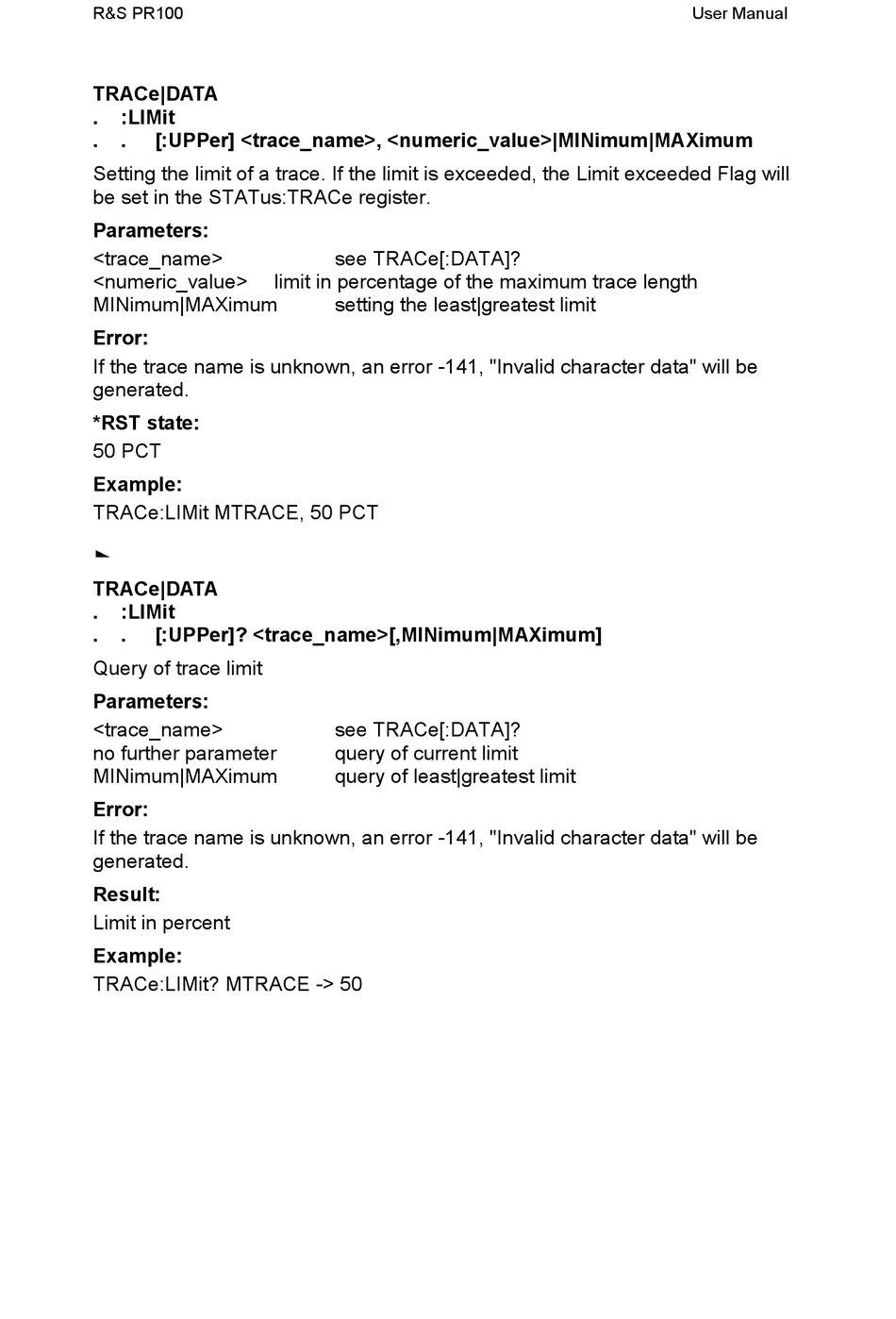

Rohde & Schwarz PR100 Manual page 252

R&S PR100
TRACe|DATA
. :LIMit
. . [:UPPer] <trace_name>, <numeric_value>|MINimum|MAXimum
Setting the limit of a trace. If the limit is exceeded, the Limit exceeded Flag will
be set in the STATus:TRACe register.
Parameters:
<trace_name>
<numeric_value>
MINimum|MAXimum
Error:
If the trace name is unknown, an error -141, "Invalid character data" will be
generated.
*RST state:
50 PCT
Example:
TRACe:LIMit MTRACE, 50 PCT
d
TRACe|DATA
. :LIMit
. . [:UPPer]? <trace_name>[,MINimum|MAXimum]
Query of trace limit
Parameters:
<trace_name>
no further parameter
MINimum|MAXimum
Error:
If the trace name is unknown, an error -141, "Invalid character data" will be
generated.
Result:
Limit in percent
Example:
TRACe:LIMit? MTRACE -> 50
see TRACe[:DATA]?
limit in percentage of the maximum trace length
setting the least|greatest limit
see TRACe[:DATA]?
query of current limit
query of least|greatest limit
