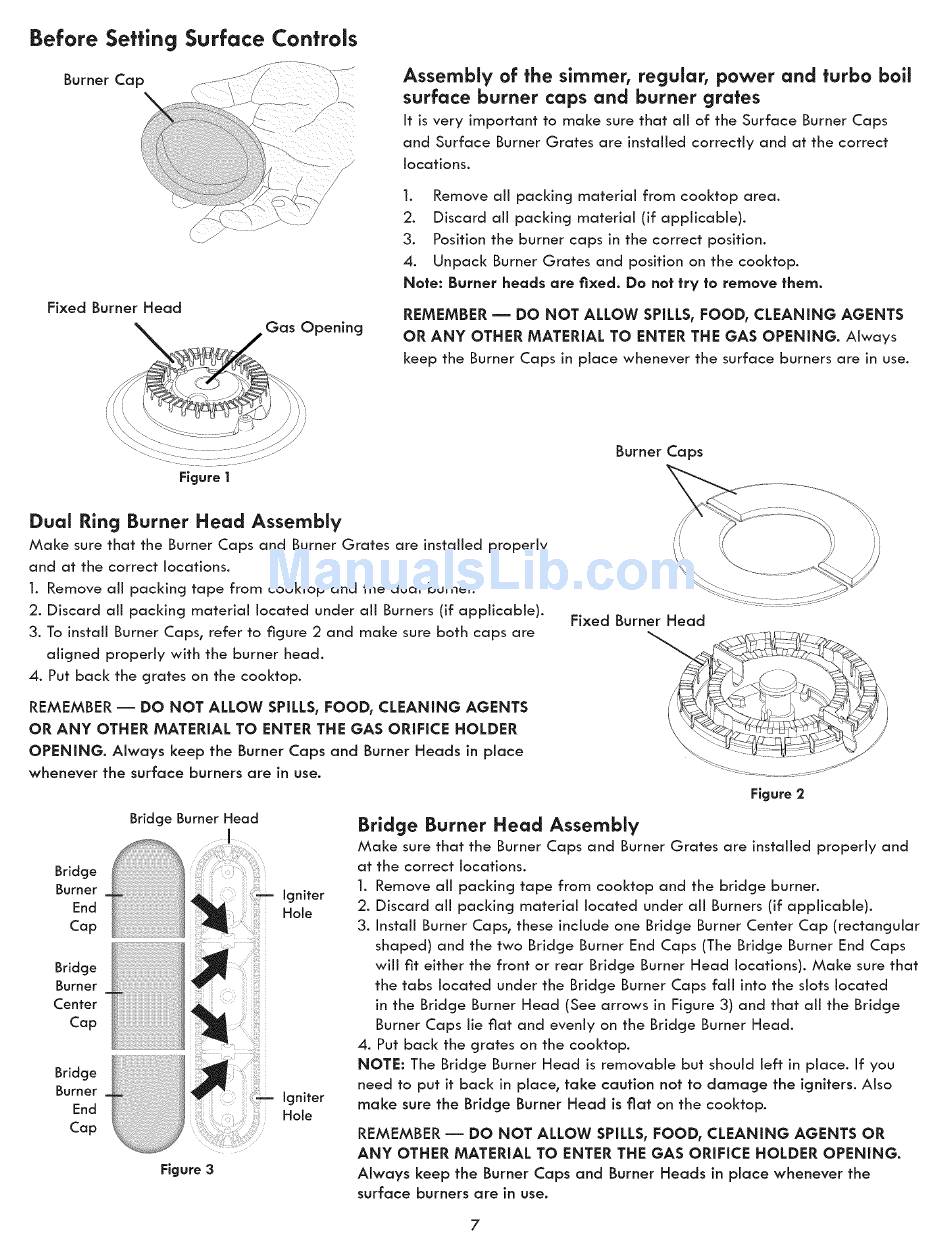

Before Setting Surface Controls
Burner Cap
Fixed Burner Head
\
•Gas Opening
Assembly
of the simmer,
regular,
power
and
turbo
boil
surface burner caps and burner grates
It is very important to make sure that all of the Surface
Burner Caps
and Surface
Burner Grates
are installed correctly
and at the correct
locations.
1.
Remove aii packing
material
from cooktop
area.
2.
Discard all packing
material
(if applicable).
3.
Position the burner caps in the correct
position.
4.
Unpack
Burner Grates and position
on the cooktop.
Note: Burner heads are fixed.
Do not try to remove them.
REMEMBER m DO NOT ALLOW SPILLS, FOOD, CLEANING
AGENTS
OR ANY OTHER MATERIAL
TO ENTER THE GAS OPENING.
Always
keep the Burner Caps in place whenever
the surface burners are in use.
Figure 1
Burner Caps
Dual Ring Burner Head Assembly
Maize sure that the Burner Caps and Burner Grates
are installed properly
and at the correct
locations.
1. Remove aii packing
tape from cooktop
and the dual burner.
2. Discard
aii packing
material
located
under aii Burners (if applicable).
3. To install
Burner Caps, refer to figure 2 and maize sure both caps are
aligned
properly
with the burner head.
4. Put back the grates on the cooktop.
REMEMBER -- DO NOT ALLOW SPILLS,FOOD, CLEANING AGENTS
OR ANY OTHER MATERIAL TO ENTER THE GAS ORIFICE HOLDER
OPENING. Always keep the Burner Caps and Burner Heads in place
whenever the surface burners are in use.
Fixed Burner Head
Figure 2
Bridge
Burner
End
Cap
Bridge
Burner
Center
Cap
Bridge
Burner
End
Cap
Bridge Burner Head
I
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!!!!!!ii!!!iiil
Figure 3
igniter
Hole
igniter
Hole
Bridge Burner Head Assembly
Maize sure that the Burner Caps and Burner Grates are installed properly
and
at the correct
locations.
1. Remove aii packing
tape from cooktop
and the bridge
burner.
2. Discard
aii packing
material
located
under all Burners (if applicable).
3. Install Burner Caps, these include
one Bridge Burner Center Cap (rectangular
shaped) and the two Bridge Burner End Caps (The Bridge Burner End Caps
will fit either the front or rear Bridge Burner Head locations).
Maize sure that
the tabs located
under the Bridge Burner Caps fail into the slots located
in the Bridge Burner Head (See arrows in Figure 3) and that aii the Bridge
Burner Caps lie fiat and evenly on the Bridge Burner Head.
4. Put back the grates on the cooktop.
NOTE: The Bridge Burner Head is removable
but should left in place.
If you
need to put it back in place, take caution
not to damage
the igniters. Also
make sure the Bridge
Burner Head is fiat on the cooktop.
REMEMBER -- DO NOT ALLOW SPILLS, FOOD, CLEANING AGENTS OR
ANY OTHER MATERIAL TO ENTER THE GAS ORIFICE HOLDER OPENING.
Always keep the Burner Caps and Burner Heads in place whenever the
surface burners are in use.
