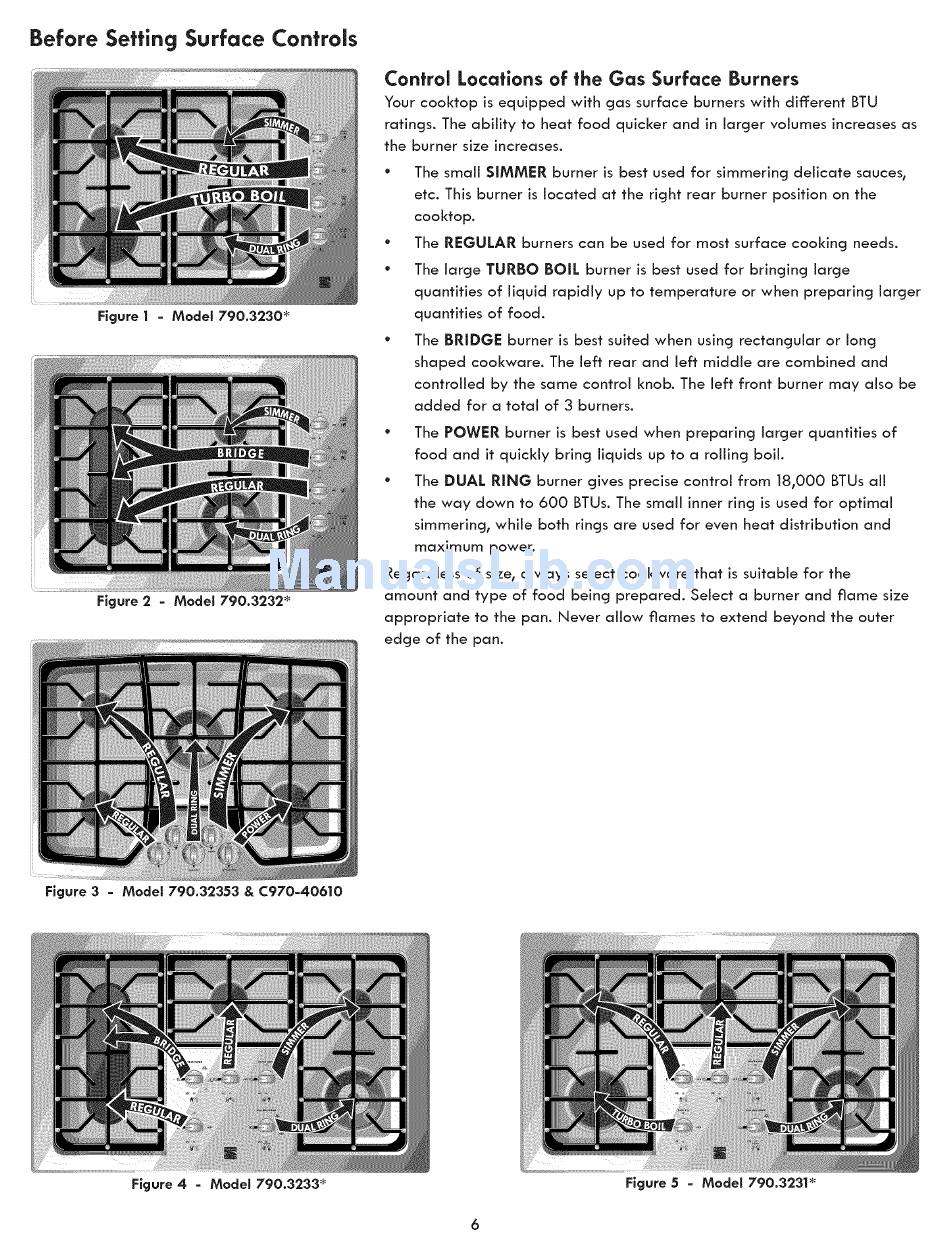

Before Setting Surface Controls
Figure 1 - Model 790.3230 _
Figure 2 - Model 790.3232 _
Figure 3 - Model 790.32353 & C970-40610
Figure 4 - Model 790.3233 _
Control Locations of the Gas Surface Burners
Your cooktop is equipped with gas surface burners with different BTU
ratings. The ability to heat food quicker and in larger volumes increases as
the burner size increases.
° The small SIMMER burner is best used for simmering delicate sauces,
etc. This burner is located at the right rear burner position on the
cooktop.
* The REGULAR burners can be used for most surface cooking needs.
° The large TURBO BOIL burner is best used for bringing large
quantities of liquid rapidly up to temperature or when preparing larger
quantities of food.
° The BRIDGE burner is best suited when using rectangular or long
shaped cookware. The left rear and left middle are combined and
controlled by the same control knob. The left front burner may also be
added for a total of 3 burners.
° The POWER burner is best used when preparing larger quantities of
food and it quickly bring liquids up to a roiling boil.
° The DUAL RING burner gives precise control from 18,000 BTUs aii
the way down to 600 BTUs. The small inner ring is used for optimal
simmering, while both rings are used for even heat distribution and
maximum power.
Regardless of size, always select cookware that is suitable for the
amount and type of food being prepared. Select a burner and flame size
appropriate to the pan. Never allow
flames
to extend beyond the outer
edge of the pan.
Figure 5 - Model 790.3231 _
