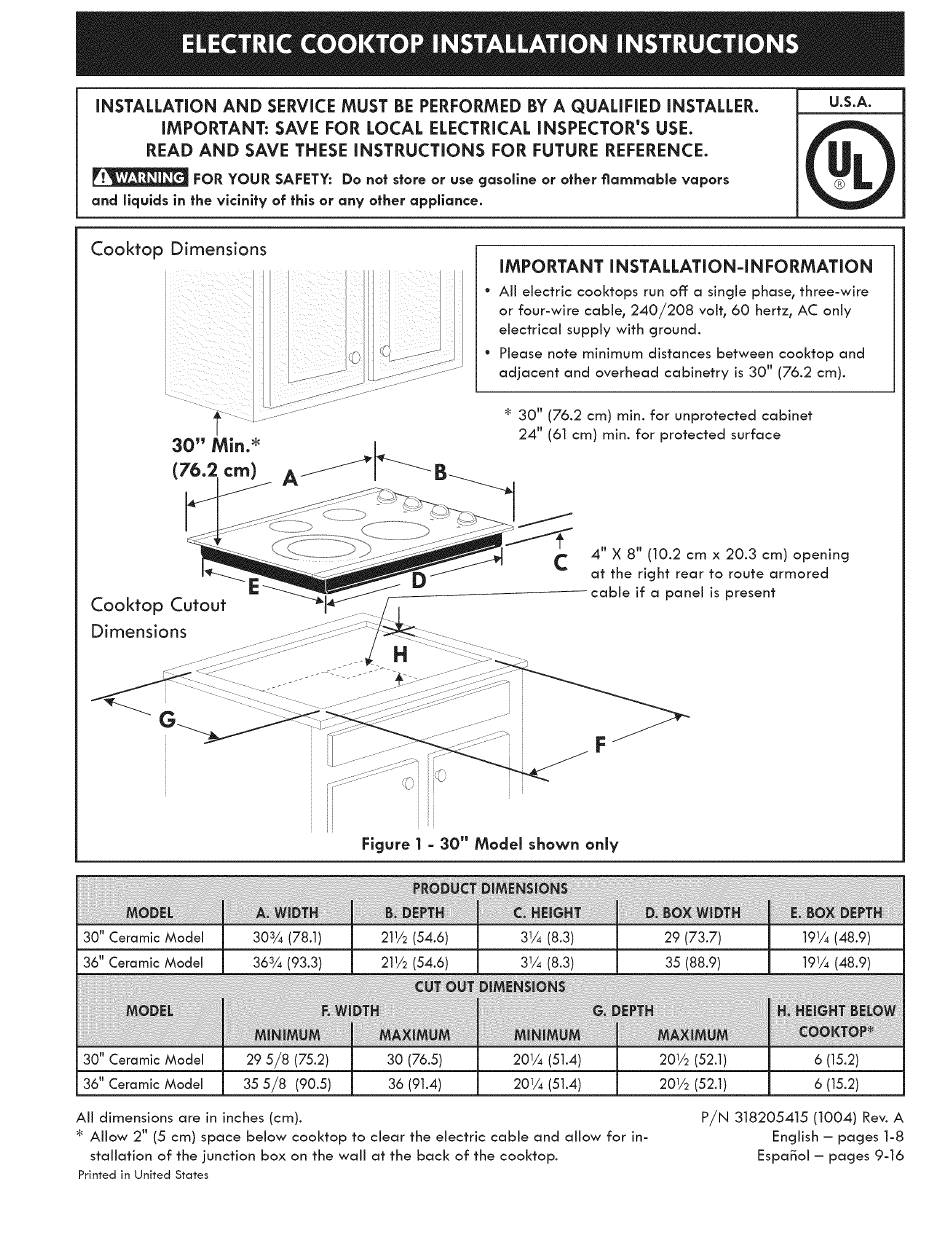

ELECTRIC COOKTOP INSTALLATION INSTRUCTIONS
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER. U.S.A.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Uj
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors ® .
and liquids in the vicinity of this or any other appliance.
Cooktop Dimensions
IMPORTANT INSTALLATION-INFORMATION
* All electric cooktops run off a single phase, three-wire
or four-wire cable, 240/208 volt, 60 hertz, AC only
electrical supply with ground.
|
|
|
|
|
|
|
|
|
—_ * Please note minimum distances between cooktop and
L ae adjacent and overhead cabinetry is 30" (76.2 cm).
poe
aan * 30" (76.2 cm) min. for unprotected cabinet
24" (61 cm) min. for protected surface
4
Cc 4" X 8" (10.2 em x 20.3 em) opening
at the right rear to route armored
cable if a panel is present
Cooktop Cutout
Dimensions
Figure 1 - 30" Model shown only
PRODUCT DIMENSIONS
A. WIDTH B. DEPTH C. HEIGHT OD. BOX WIDTH E. BOX DEPTH
30" Ceramic Model 3034 (78.1) 21" (54.6) 31% (8.3) 29 (73.7) 19% (48.9)
36" Ceramic Model 36% (93.3) 21" (54.6) 31% (8.3) 35 (88.9) 19% (48.9)
CUT OUT DIMENSIONS
FE WIDTH G. DEPTH H, HEIGH] BELOW
MINIMUM MAXIMUM MINIMUM MAXIMUM COOKTOP*
30" Ceramic Model 29 5/8 (75.2) 30 (76.5) 201, (51.4) 201% (52.1) 6 (15.2)
36" Ceramic Model 35 5/8 (90.5) 36 (91.4) 201s (51.4) 201% (52.1) 6 (15.2)
All dimensions are in inches (cm). P/N 318205415 (1004) Rev. A
* Allow 2" (5 cm) space below cooktop to clear the electric cable and allow for in- English — pages 1-8
stallation of the junction box on the wall at the back of the cooktop. Espanol — pages 9-16
Printed in United States
