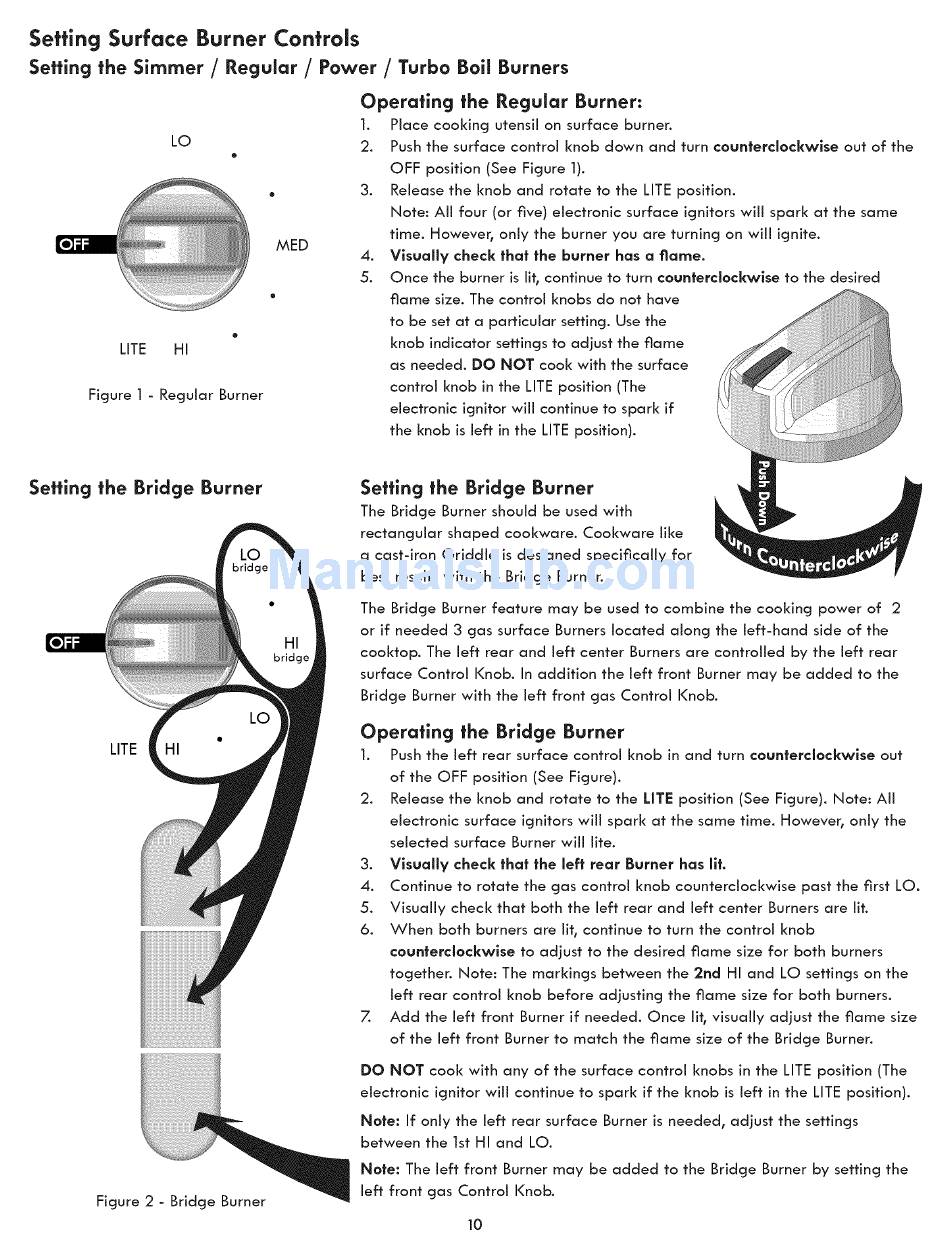

Seffing Surface
Burner Controls
Seffing the Simmer / Regular / Power / Turbo Boil Burners
o
MED
e
LifE
H!
Figure I - Regular Burner
Seffing the Bridge
Burner
LITE
Operating
the Regular
Burner:
1.
Place cooking
utensil on surface
burner.
2.
Push the surface control
knob down and turn counferciockwlse
out of the
OFF position
(See Figure 1).
3.
Release the knob and rotate to the LImE position.
Note: All four (or five) electronic
surface
ignitors will spark at the same
time. However, only the burner you are turning
on will ignite.
4.
Vlsua[ly
check that the burner
has a flame.
5.
Once the burner is lit, continue to turn counterclockwise
to the desired
flame
size. The control knobs do not have
to be set at a particular
setting. Use the
Setting the Bridge
Burner
The Bridge Burner should be used with
rectangular
shaped
cookware.
Cookware
like
a cast-iron
Griddle
is designed
specifically
for
best results with the Bridge Burner.
Figure 2 - Bridge Burner
knob indicator
settings to adjust the flame
as needed. DO NOT cook with the surface
control
knob in the LImE position (The
electronic
ignitor wiJJ continue to spark if
the knob is Jeff in the LImE position).
The Bridge Burner feature
may be used to combine
the cooking
power of 2
or if needed 3 gas surface
Burners located
along the left-hand
side of the
cooktop.
The left rear and left center
Burners are controlled
by the left rear
surface
Control
Knob. In addition
the left front Burner may be added
to the
Bridge Burner with the left front gas Control
Knob.
Operating
the Bridge
Burner
1.
Push the left rear surface control
knob in and turn counterclockwise
out
of the OFF position
(See Figure).
2.
Release the knob and rotate to the UTE position
(See Figure). Note: Aii
electronic
surface
ignitors wiii spark at the same time. However, only the
selected
surface
Burner will life.
3.
Vlsua[[y
check that the left rear Burner has lit.
4.
Continue
to rotate the gas control
knob counterclockwise
past the first LO.
5.
Visually
check that both the left rear and left center Burners are lit.
6.
When
both burners are lit, continue
to turn the control
knob
counterclockwise
to adjust to the desired flame
size for both burners
together.
Note: The markings
between
the 2nd HI and LO settings on the
left rear control
knob before
adjusting
the flame
size for both burners.
7.
Add the left front Burner if needed.
Once lit, visually
adjust the flame
size
of the left front Burner to match the flame size of the Bridge Burner.
DO NOT cool< with any of the surface control
knobs in the LITE position
(The
electronic
ignitor
will continue
to spark if the knob is left in the LITE position).
Note: If only the left rear surface
Burner is needed, adjust the settings
between
the 1st HI and LO.
Note: The left front Burner may be added
to the Bridge Burner by setting the
left front gas Control
Knob.
10
