Kenmore 790.4283 Use & Care Manual

Kenmore cooktop user manual
Hide thumbs

Advertisement

Quick Links

Download this manual

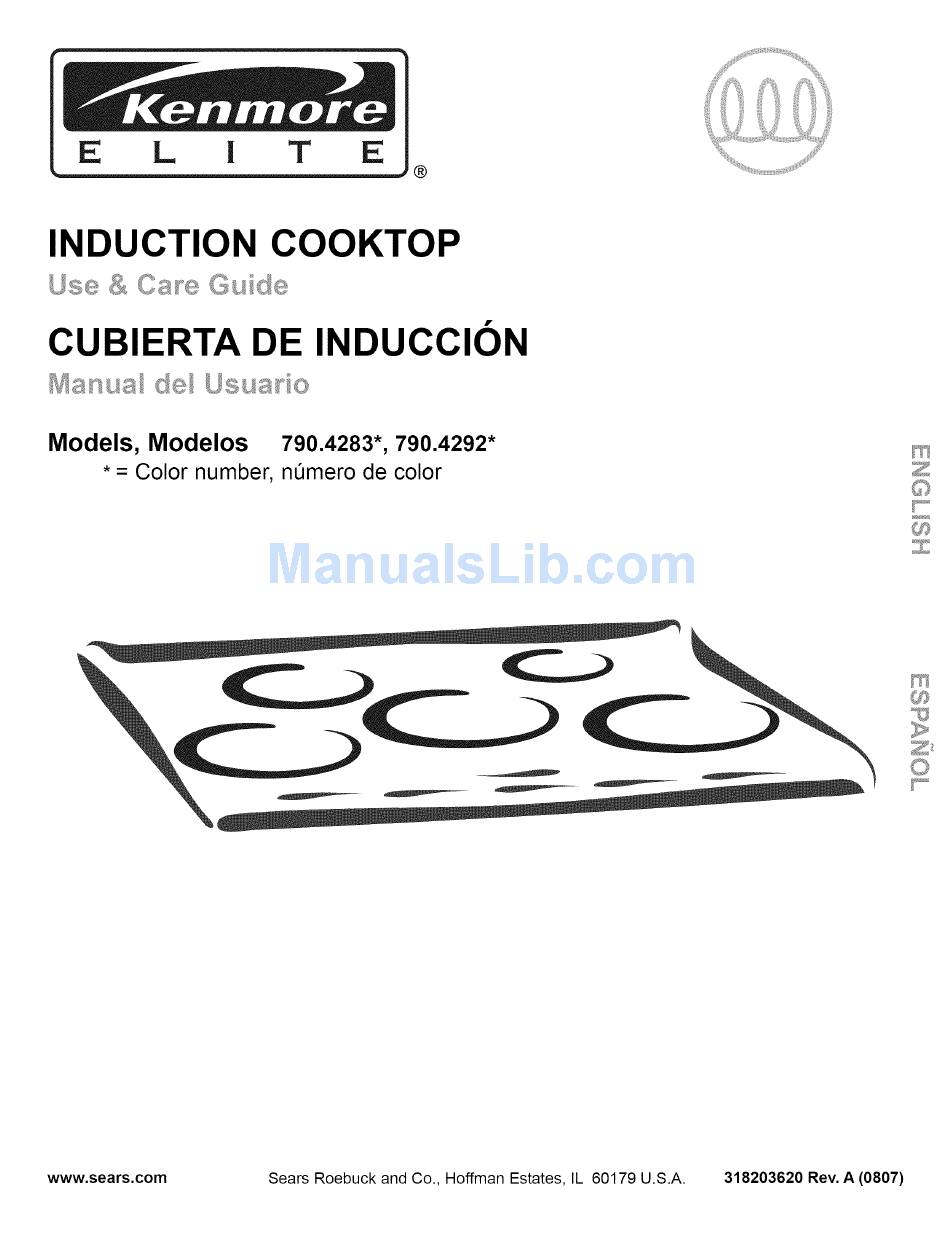

E
L
I
T
E
®
INDUCTION
COOKTOP
CUBIERTA DE INDUCCION
Models, Modelos
790.4283", 790.4292*
*= Color number, nOmero de color
r
www.sears.com
Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
318203620 Rev. A (0807)

Advertisement

loading

  Related Manuals for Kenmore 790.4283

  Summary of Contents for Kenmore 790.4283

  • Page 1 INDUCTION COOKTOP CUBIERTA DE INDUCCION Models, Modelos 790.4283", 790.4292* *= Color number, nOmero de color www.sears.com Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. ® 318203620 Rev. A (0807)
  • Page 2 1-800-4-MY-HOME® to arrange for free repair. For five years from the date of purchase, if the cooktop glass fails due to thermal shock or the cooktop elements are defective, call 1-800-4-MY-HOME®...
  • Page 3 All other servicing should be done only by a qualified technician to reduce the risk of personal injury and damage to the cooktop. Sears Parts & Repair is the recommended repair service for this appliance. • Never modify...
  • Page 4 Induction Cooktop Features A COOLER COOKTOP - A unique feature of the Induction Cooktop is whether turned ON or OFF, the cooktop surface remains cooler than standard ceramic cooktops. The Cooking Zones may appear to be cool while turned ON and after they have been turned OFF. But the glass surface may be HOT from residual heat transferred from the cookware and burns may occur.
  • Page 5 Right Front Cooking Zone (Fig. 1 & 2) Center Cooking Zone (Fig. 2 only) Main Cooktop Controls (Fig 1,2 & 3) Left Rear Cooking Zone Control Pads (Fig. 1 & 2) Left Front Cooking Zone Control Pads (Fig. 1 & 2) Right Rear Cooking Zone Control Pads (Fig.
  • Page 6 RESIDUAL HEAT - Once any Cooking Zone has been used for cooking and turned OFF, and if the Fig. 12 cooktop surface temperature on any of the Cooking Zones is still too HOT, HE (See Fig. 13) will appear in the Alpha-Numeric ture is still too HOT.
  • Page 7 Even quality cookware can scratch the cooktop surface, especially if cookware is slid over the ceramic cooktop surface without being lifted up. Over time sliding ANY type of cookware over the ceramic cooktop will likely alter the overall ap- pearance of the cooktop. Eventually the buildup of scratches will make cleaning the surface difficult and degrade the overall appearance of the cooktop.
  • Page 8 Min. size -_J Pan does not meet the minimum size required for the Cooking Zone used (See Fig. 19). • Pan bottom rests on cooktop trim or does not rest completely on the cooktop surface. • Heavy handle tilts pan.
  • Page 9 2 seconds (or until a beep sounds). The Power LED located above the key pad will turn ON. NOTE: If no other key pad is touched within 10 seconds the request to Power ON the cooktop will clear.
  • Page 10 IMPORTANT OPERATING NOTES: • Fluids spilled or objects lying on the controls area of the cooktop may cause the cooktop to display an error code and turn OFF while cooking. Clean the spills or remove the objects from the cooktop.
  • Page 11 To Turn ON the Controls Lock Feature: The Cooktop Lock will not activate until the cooktop is OFF. If the cooktop power is not OFF, touch and hold the key pad until a beep sounds (about 1 second). The Power LED located above the _ OFF.
  • Page 12 Cleaning Various Parts of Your Cooktop Before cleaning any part of the cooktop, be sure all controls are turned OFF and the cooktop is COOL. REMOVE SPILLOVERS AND HEAVY SOILING AS SOON AS POSSIBLE. DIFFICULTY AND EXTENT OF A MAJOR CLEANING LATER.
  • Page 13 Cleaning Consistent and proper cleaning Prior to using your cooktop for the first time, apply the recommended CookTop® Cleaning Creme to the ceramic surface (on the web visit www.sears.com for replacement cooktop cleaner, item number 40079). Buff with a non-abrasive scratch cleaning pad.
  • Page 14 General Care & Cleaning section. IMPORTANT CLEANING NOTE: Liquid, cleaning towel or objects on the control area of the cooktop could cause the cooktop to display an error code or momentarily disable touch control operation. cooktop...
  • Page 15 The automatic shut-off feature will turn all of the Cooking Zones and the entire Cooktop OFF after any Cooking Zone has been in continuous use for 18 hours. Cooktop internal heat sensor has detected high temperatures appliance. Be sure the appliance vent holes are not blocked. Refer to the Installation Instructions supplied with the cooktop for more detailed cooktop installation information.
  • Page 16 Induction Cooktop main control has detected a fault or error condition. Try turning electrical power supply OFF and back ON to cooktop in order to reset Cooktop main controls. If fault recurs, record fault number and turn power supply to Cooktop OFF.
  • Page 17 Enhorabuena por haber hecho una compra intetigente. Su nuevo producto Your new Kenmore®esta diseSado y fabricado para brindarle aSos de funcionamiento for years of fiable. Pero, como cualquier producto, puede necesitar mantenimiento preventivo o reparaciones de protecci6n podria ahorrarle dinero y molestias.
  • Page 18 For expert troubleshooting For repair - in your home - of all major brand appliances, lawn and garden equipment, no matter For the replacement parts, accessories and owner's manuals that you need to do-it-yourself. For Sears professional and items like garage door openers 1-800-4-MY-HOME Call anytime, www.sears.com...
