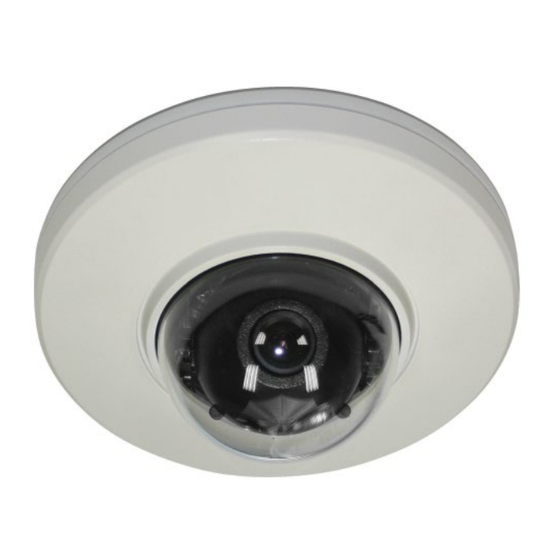

Vicon CE202D-N Installation Manual

Network camera dome
Hide thumbs Also See for CE202D-N:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick Manual

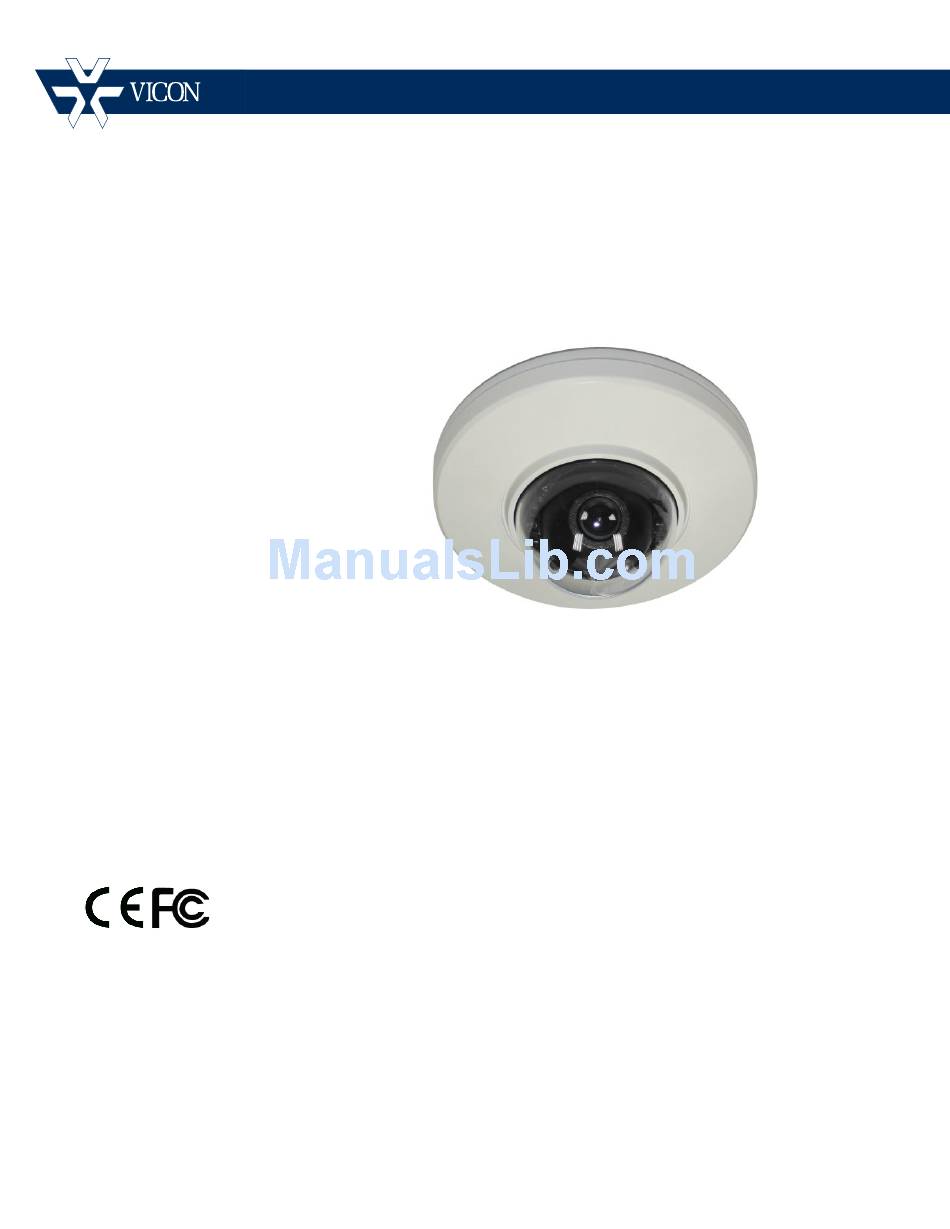

Installation Guide
XX269-30-00
CE202D-N Network

Camera Dome

Vicon Industries Inc.
Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
www.vicon-security.com
Document Number: 8009-8269-30-00
Issued: 314
Product specifications subject to change without notice.
Copyright © 2014 Vicon Industries Inc. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CE202D-N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vicon CE202D-N

Summary of Contents for Vicon CE202D-N

  • Page 1: Camera Dome

    24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.

  • Page 2: Explanation Of Graphical Symbols

    WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the prese nce of unins ulated "da ngerous voltage"...

  • Page 3: Fcc Compliance Statement

    FCC COMPLIANCE STATEMENT : THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE FCC INFORMATION LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROT ECTION AGAINST HARMFUL INT ERFERENCE IN A RESIDENTIAL INS TALLATION.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not blo ck any ventilation openi ngs.

  • Page 5: Table Of Contents

    Contents 1. Description ------------------------------------------------------------------6 1.1 Components--------------------------------------------------------------------------------------------- 6 1.2 Key Features - --------------------------------------------------------------------------------------------7 2. Installation ------------------------------------------------------------------- 7 2.1 Camera Installation -------- ------------------------------------------------------------------------ ----7 2.2 Connection ------------------------------------------------------------------------------------------------9 2.3 Network Connection and IP Assignment ----------------------------------------------------------- 11 3. Operation -------------------------------------------------------------------- 12 3.1 Access from a browser -------------------------------------------------------------------------------- 12 3.2 Access from the internet ------------------------------------------------------------------------------ 13 3.3 Setting the admin password over a secure connection ------------------------------------------- 13 3.4 Live View Page ----------------------------------------------------------------------------------------- 14...

  • Page 6: Description

    Series of Camera Domes. These units should only be installed by a qualified technician using approved materials in conformance with federal, state, and local codes. Read these instructions thoroughly before beginning an installation. Always refer to Vicon’s website to assure you have the most up-to- date manual, www.vicon-security.com.

  • Page 7: Key Features

    1.2 Key Features • Brilliant video quality The network camera offers the highly efficient H.264 video compression, which drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is also supported for increased flexibility. • Triple streams The network camera can deliver triple video streams simultaneously at full frame rate in all resolutions up to 1920 x 1080 using Motion JPEG and H.264 (or MPEG-4).
  • Page 8 3) Secure the dome camera to the ceiling using the anchors (2x) and screws (2x) provided in the accessory kit. 4) Reassemble the camera cover to dome camera by turning the camera cover clockwise until it locks in place. Lock clockwise Camera Dimension ...

  • Page 9: Connection

    2.2 Connection • Connection Description Name Description Alarm Cable Yellow: Alarm input, Black: GND, Blue: Alarm output Power Cable Cable for power source (12 VDC ) Ethernet Cable Cable for Ethernet (PoE) Name Description Button for the factory default setting Factory Default Button Micro-SD memory slot Micro-SD Slot...
  • Page 10 • Connecting to the RJ-45 Connect a standard RJ-45 cable to the network port of the network camera. Generally a cross-over cable is used for directly connection to PC, while a direct cable is used for connection to a hub. Micro SD memory slot ...

  • Page 11: Network Connection And Ip Assignment

    2.3 Network Connection and IP assignment The network camera is designed for use on an Ethernet network and requires an IP address for access. Most networks today have a DHCP server that automatically assigns IP addresses to connected devices. By the factory default, your camera is set to obtain the IP address automatically via DHCP server.

  • Page 12: Operation

    3. Operation The network camera can be used with Windows® operating system and browsers. The recommended browsers are Internet Explorer®, Safari®, Firefox®, Opera® and Google® Chrome with Windows. NOTE: To view streaming video in Microsoft® Internet Explorer, set your browser to allow ActiveX controls.

  • Page 13: Access From The Internet

    3.2. Access from the internet Once connected, the network camera is accessible on your local network (LAN). To access the network camera from the Internet you must configure your broadband router to allow incoming data traffic to the network camera. To do this, enable the NAT-traversal feature, which will attempt to automatically configure the router to allow access to the network camera.

  • Page 14: Live View Page

    3.4 Live View Page The live view page comes in several screen modes, for example 1920x1080, 1280x1024, 1280x720, 800x600, 704x480 (576), 640x480, 352x240 (288) and 320x240. Select the most suitable mode in accordance with your PC specifications and monitoring purposes. 1) General controls Live View Page Search &...

  • Page 15: Network Camera Setup

    3) Video Streams The network camera provides several images and video stream formats. Your requirements and the properties of your network will determine the type you use. The Live View page of the network camera provides access to H.264, MPEG-4 and Motion JPEG video streams and to the list of available video streams.

  • Page 16: Basic Configuration

    3.5.1 Basic Configuration You can see the device information in this information page.

  • Page 17: Users

     Enable WS-Security: Do not check this box to connect and monitor the network camera through Vicon’s viewing software using drivers older than 935. Note: WS-Security is an open format for signing and encryption of message parts, for supplying credentials in the form of security tokens, and for security passing those tokens in a message.

  • Page 18: Network

    2) Network The network camera supports both IP version 4 and IP version 6. Both versions may be enabled simultaneously, and at least one version must always be enabled. When using IPv4, the IP address for the network camera can be set automatically via DHCP, or a static IP address can be set manually. If IPv6 is enabled, the network camera receives an IP address according to the configuration in the network router.

  • Page 19: Video & Image

    3) Video & Image • Stream1 Setting Codec: The codec settings are separated into MPEG4 and H.264. H.264 is also known as MPEG-4 Part 10. This is the new generation compression standard for digital video. This function offers higher video resolution than Motion JPEG or MPEG-4 at the same bit rate and bandwidth, or the same quality video at a lower bit rate.
  • Page 20 Select the GOP (Group of Picture) size. If users want to have a high quality of fast image one by one, decrease the value. For the purpose of general monitoring, do not change a basic value. Such act may cause a problem to the system performance. Vicon recommends that GOP be the same as the fps.

  • Page 21: Date & Time

    • Stream2 Setting Sometimes the image size is large due to low light or complex scenery. Adjusting the frame rate and quality helps to control the bandwidth and storage used by the Motion JPEG video stream in these situations. Limiting the frame rate and quality optimizes bandwidth and storage usage, but may give poor image quality.

  • Page 22: Live View

    • Current Server Time This displays the current date and time (24h clock). The time can be displayed in 12h clock format (see below). • New Server Time Select your time zone from the drop-down list. If you want the server clock to automatically adjust for daylight savings time, select the “Automatically adjusts for daylight saving time changes”.

  • Page 23: Video & Image

    3.5.3 Video & Image  Basic Refer to “3.5.1 Basic Configuration > Video & Image” for more details...
  • Page 24  Image • Image Appearance This page provides access to the advanced image settings for the network camera. Brightness: The image brightness can be adjusted in the range 1-10, where a higher value produces a brighter image. Contrast: Adjust the image's contrast by raising or lowering the value in this field, 1-10. Saturation: Select an appropriate level by entering a value in the range 1-10.
  • Page 25  AE & AWB • Exposure control to set the exposure and white balance of the network camera. This page provides access Configure the exposure settings to suit the image quality requirements in relation to lighting considerations. Mode: Supports exposure modes to control the amount of light detected by the camera sensor based on settings for light conditions.
  • Page 26 • White Balance Control This adjusts the relative amount of red, green and blue primary colors in the image so that the neutral colors are reproduced correctly. The camera can be set to automatically adjust for the type of light and compensate for its color. Alternatively, the type of light source can be set manually.
  • Page 27 • Day & Night Control Mode: Select the day/night mode from among three modes. Automatic: Normally works in day mode; switches automatically to night mode in a dark place. Day: Always works in day mode. Night: Always works in night mode. Threshold: Controls the how fast the change is from day to night or night to day.
  • Page 28 The privacy masks are configured by Mask windows. Each window can be selected by clicking with the mouse. It is also possible to resize, delete or move the window by selecting the appropriate window at the mouse menu on the video screen. To create a mask window, follow steps: Click the right button of mouse to see the mouse menu.

  • Page 29: Event

    3.5.4 Event 1) Event-In  On Boot This is used to trigger the event every time the network camera is started. Select “Enable on boot” to activate the motion event. Enter the Dwell time the event lasts from the point of detection, 1-180 seconds. When the settings are complete, click Save, or click Reset to revert to previously saved settings.
  • Page 30  Alarm In Select “Enable alarm in port 1” to activate the alarm event. The network camera supports 1 alarm input port. Type: Choose the type of alarm to use from the drop-down list, NO (Normally Open) or NC (Normally Closed). Dwell Time: Set the dwell time an event lasts from the point of detection of an alarm input.

  • Page 31: Manual Trigger

     Manual Trigger This option makes use of the manual trigger button provided on the Live View page, which is used to start or stop the event type manually. Alternatively, the event can be triggered via the product's API (Application Programming Interface). Select “Enable manual trigger”...
  • Page 32  Motion Motion detection is used to generate an alarm whenever movement occurs (or stops) in the video image. A total of 8 Motion and/or Mask windows can be created and configured. Motion is detected in defined Motion windows, which are placed in the video image to target specific areas.

  • Page 33: Motion Detection Setting

    To create a motion or mask window, follow steps: Click the right button of mouse to see the mouse menu. Select New Motion (or Mask) Window in the mouse menu. Click and drag mouse to designate a motion area. • Motion Detection Setting The behavior for each window is defined by adjusting the Threshold and Sensitivity, as described below.
  • Page 34  Network Loss This is used to trigger the event every time the network connection is failed. Select “Enable network loss” to activate the Network Loss event. Select a dwell time for how long the event will last from the point of detection.

  • Page 35: Event-Out

    2) Event-Out  SMTP (E-Mail) The network camera can be configured to send event and error email messages via SMTP (Simple Mail Transfer Protocol). Select “Enable SMTP” to activate the SMTP operation. Sender: Enter the email address to be used as the sender for all messages sent by the network camera.
  • Page 36 Login Method: Set the weakest method allowed to the highest/safest method supported by the mail server. The most secure method is listed in the drop-down list: Login/Plain. • SMTP (E-Mail) Receiver Receiver: Enter an email address for a receiver. You can register up to 8 e-mail addresses of recipients.
  • Page 37 Remote directory: Specify the path to the directory where the uploaded images will be stored. If this directory does not already exist on the FTP server, there will be an error message when uploading. User name/Password: Provide your log-in information. •...
  • Page 38 • HTTP Server Setting URL: The network address to the server and the script that will handle the request. For example: http://192.168.12.244/cgi-bin/upload.cgi User name/Password: Provide your log-in information. • HTTP Server Test When the setup is complete, the connection can be tested by clicking the Test button. When the settings are complete, click Save, or click Reset to revert to previously saved settings.
  • Page 39 ▼ Record When the network camera detects an event, it can record the video stream onto the Micro SD Memory (not supplied) or NAS (Network Attached Device) as a storage device. Check the "Enable Record" box to enable the service. •...
  • Page 40 • Record Schedule The weekly recording schedule can be set for each day. Drag or click a box area; clicking the block toggles the recording between on and off. Click the “All Select” button to set a schedule for the entire week, 24/7;...

  • Page 41: Event Map

    ▼ Event Notification When the network camera detects an event, it can send a message to a designated server that this event has occurred. Check the "Enable event notification" box to enable the service. Enter the notification server URL and port. 3) Event Map...
  • Page 42 The event map allows you to change the settings and establish a schedule for each event trigger from the network camera; up to a max. 15 events can be registered. Click the Add button to make a new event map; a popup window displays as below. To change an existing event, select that event and click the Modify button;...

  • Page 43: System

    3.5.5 System 1) Information You can enter the system information. his page is very useful as a reference for information after installation. • Device Name Configuration Enter the device name. • Location Configuration Enter the location information. You can enter up to four locations. When the settings are complete, click Save, or click Reset to revert to previously saved settings.

  • Page 44: Security

    2) Security  Users User access control is enabled by default, when the administrator sets the root password on first access. New users are authorized with user names and passwords, or the administrator can choose to allow anonymous viewer login to the Live View page, as described below: •...
  • Page 45 When the settings are complete, click Save, or click Reset to revert to previously saved settings.  HTTPS For greater security, the network camera can be configured to use HTTPS [Hypertext Transfer Protocol over SSL (Secure Socket Layer)], so that all communication that would otherwise go via HTTP will instead go via an encrypted HTTPS connection.
  • Page 46  IP Filtering Checking the "Enable IP address filtering" box enables the IP address filtering function. When the IP address filter is enabled, addresses added to the list are set as allowed or denied addresses. All other IP addresses not in this list will then be allowed or denied access accordingly, that is, if the addresses in the list are allowed, then all others are denied access, and vice versa.
  • Page 47  OpenVPN OpenVPN is an open source software application that implements virtual private network (VPN) techniques for creating secure point-to-point or site-to-site connections in routed or bridged configurations and remote access facilities. OpenVPN can run over User Datagram Protocol (UDP) or Transmission Control Protocol (TCP) transports;...
  • Page 48 • Server Mode Configuration Protocol type: Choose Protocol type, either UDP and TCP; UDP is preferred. Port: Type in Port number to use, default is 1194. Use LZO compression: Determines whether or not to use cypher compression in connection. Export CA certificate: Download the CA certificate issued by Server for Client setup. After finishing setup, click Save button;...

  • Page 49: Date & Time

    3) Date & Time • Current Server Time It displays the current date and time (24h clock). The time can be displayed in 12h clock format (see below). • New Server Time Select your time zone from the drop-down list. If you want the server clock to automatically adjust for daylight savings time, select “Automatically adjusts for daylight saving time changes”.

  • Page 50: Network

    4) Network Setting in regard to network can be executed. Settings for IP, DNS, Host Name, Port, and ARP/Ping can be established, along with setting for DDNS, uPnP, QoS, Zeroconfig, and Bonjour.  Basic • IP Address Configuration: Obtain IP address via DHCP: Dynamic Host Configuration Protocol (DHCP) is a protocol that lets network administrators centrally manage and automate the assignment of IP addresses on a network.
  • Page 51 Default router: Specify the IP address of the default router (gateway) used for connecting devices attached to different networks and network segments. • IPv6 Address Configuration Check this box to enable IPv6. Other settings for IPv6 are configured in the network router. •...
  • Page 52  DDNS • Internet DDNS (Dynamic Domain Name Service) When using the high-speed Internet with the telephone or cable network, users can operate the Network Camera even on the floating IP environment in which IPs are changed at every access. Users should receive an account and password by visiting a DDNS service like http://www.dyndns.com/ .
  • Page 53  RTP Create a setting for sending and receiving audio or video on a real-time basis. These settings are the IP address, port number, and Time-To-Live value (TTL) to use for the media stream(s) in multicast H.264 format. Only certain IP addresses and port numbers should be used for multicast streams. •...
  • Page 54  UPnP The network camera includes support for UPnP™. UPnP is enabled by default, so the network camera is automatically detected by operating systems and clients that support this protocol. Enter a name in the Friendly name field. Note: UPnP must be installed on your workstation if running Windows XP. To do this, open the Control Panel from the Start Menu and select Add/Remove Programs.
  • Page 55 The main benefits of a QoS-aware network are: The ability to prioritize traffic and thus allow critical flows to be served before flows with lesser priority. Greater reliability in the network, due to the control of the amount of bandwidth an application may use, and thus control over bandwidth races between applications.
  • Page 56  NAT A broadband router allows devices on a private network (LAN) to share a single connection to the Internet. This is done by forwarding network traffic from the private network to the “outside,” that is, the Internet. Security on the private network (LAN) is increased since most broadband routers are pre-configured to stop attempts to access the private network (LAN) from the public network/Internet.
  • Page 57 • NAT traversal Settings Enable: Click this button to enable NAT traversal. When enabled, the network camera attempts to configure port mapping in a NAT router on your network, using UPnP. Note that UPnP must be enabled in the network camera (see System>Network>UPnP). Enter a NAT router and enter the external port number for the router in the field provided.
  • Page 58 Zeroconf is built on three core technologies: • Assignment of numeric network addresses for networked devices (link-local address auto configuration) • Automatic resolution and distribution of computer hostnames (multicast DNS) • Automatic location of network services, such as printing devices through DNS service discovery. Click the checkbox to enable Zeroconf.

  • Page 59: Language

    5) Language Select a user language. The language choices are English, Russian, Korean and Chinese. When the settings are complete, click Save, or click Reset to revert to previously saved settings. 6) Maintenance...
  • Page 60 • Maintenance Restart: The unit is restarted without changing any of the settings. Use this method if the unit is not behaving as expected. Reset: The unit is restarted and most current settings are reset to factory default values. The settings that are not affected are: * the boot protocol (DHCP or static) * the static IP address * the default router...

  • Page 61: Support

    7) Support The support page provides valuable information on troubleshooting and contact information, should you require technical assistance. • Logs The network camera supports system log information. Click the System Log button to get the log data and the Event Log button for event information. •...
  • Page 62 - Media Check: Click the Media Check button to get the information about the camera’s video and audio stream. The pop-up window displays as below.
  • Page 63 - Networks Check: Click the Network Check button to get the information about the camera’s network setting and traffic. The pop-up window displays as below. - Hardware Check: Click the Hardware Check button to diagnose the camera’s hardware, such as video.

  • Page 64: Playback

    3.6 Playback The Playback window contains a list of recordings made to the memory card. It shows each recording's start time, length, the event type used to start the recording, calendar and time slice bar indicates if the recording is existed or not.
  • Page 65 Clip copy: copy the video clip. Zoom In: zoom in the video clip. Full Screen: go to the end of the video clip. (3) Time Chart Display an hour-based search screen for the chosen date. If there is recording data, a blue section will be displayed on a 24-hour basis.

  • Page 66: Help

    3.7 Help The Help information window will be provided as a popup window so that users can open and read it without a need for log-in. It will offer a description on setting and Help page by which users can manipulate the network camera without a reference to the manual.

  • Page 67: Resetting To The Factory Default Settings

    3.8 Resetting to the factory default settings To reset the network camera to the original factory settings, go to the Setup>System> Maintenance web page (described in “3.5.5 System > Maintenance”) or use the Reset button on the network camera, as described below. •...

  • Page 68: Appendix

    4. Appendix 4.1 Troubleshooting Troubleshooting if problems occur, verify the installation of the Network Camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. Problems/Symptoms Possible Causes or Corrective Actions The camera cannot be accessed...

  • Page 69: Alarm Connection

    4.2 Alarm Connection The following connection diagram gives an example of how to connect a network camera. 4.3 Preventive Maintenance Preventive maintenance allows detection and correction of minor that faults before they become serious and cause equipment failure. Every three months, perform the following maintenance. Inspect all connection cables for deterioration or other damage.

  • Page 70: Product Specification

    4.4 Product Specification Main Item Specification Image sensor 1/2.8” Progressive scan RGB CMOS Active Array 1920(H) x 1080(V) Lens Fixed 3.7mm Lens, F1.8 Angle of View 89.0°(H) x 46.0(V) Min. illumination 0.2 Lux Shutter Speed 1/20,000 ~ 1/30 (Slow shutter 1/15, 1/8 and 1/4) -.

  • Page 71: System Requirement For Web Browser

    System Requirement for Web Browser Operating System: Microsoft® Windows® OS Series CPU: Intel® Core 2 Duo 2GHz or higher, 1GB RAM or more, 10GB free disk or higher VGA: AGP, Video RAM 32MB or higher (1024x768, 24bpp or higher) General performance considerations When setting up your system, it is important to consider how various settings and situations will affect performance.

  • Page 72: Shipping Instructions

    Use the following procedure when returning a unit to the factory: 1. Call or write Vicon f or a Return A uthorization ( R.A.) at one of t he locations listed be low. Record the name of the Vicon employee who issued the R.A.

  • Page 73: Vicon Standard Equipment Warranty

    Vicon Standard Equipment Warranty Vicon Industries I nc. ( the “ Company”) w arrants y our equ ipment t o b e f ree f rom defects i n material and workmanship under Normal Use from the date of original retail purchase for a period of three years, with the following exceptions: Monitors, all models: One year from date of original retail purchase.
