Vicon CE102D Installation Manual

Network indoor camera dome
Hide thumbs Also See for CE102D:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick Manual

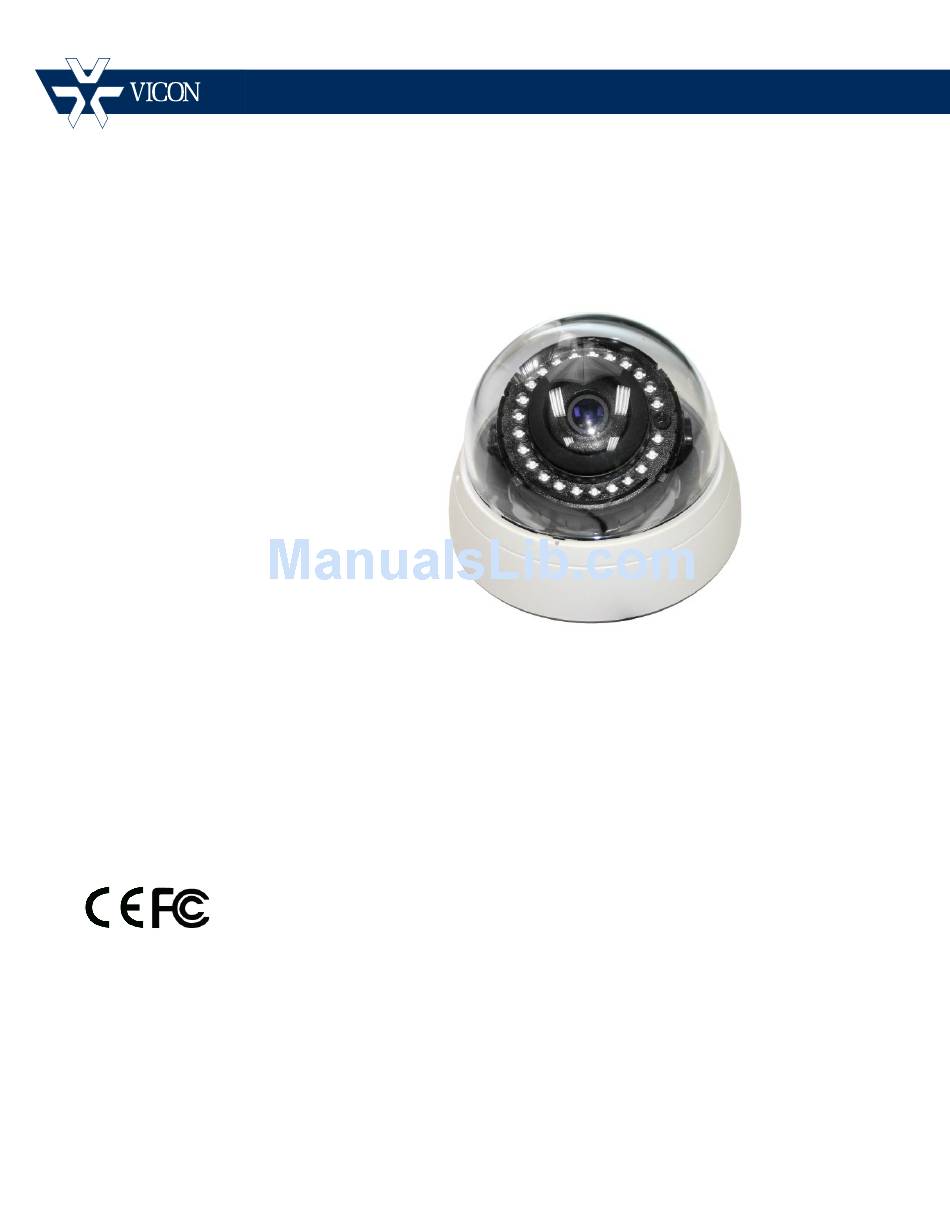

Installation Guide
XX268-00-00
CE102D Network Indoor

Camera Dome

Vicon Industries Inc.
Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
www.vicon-security.com
Document Number: 8009-8268-00-00
Issued: 214
Product specifications subject to change without notice.
Copyright © 2014 Vicon Industries Inc. All rights reserved.
