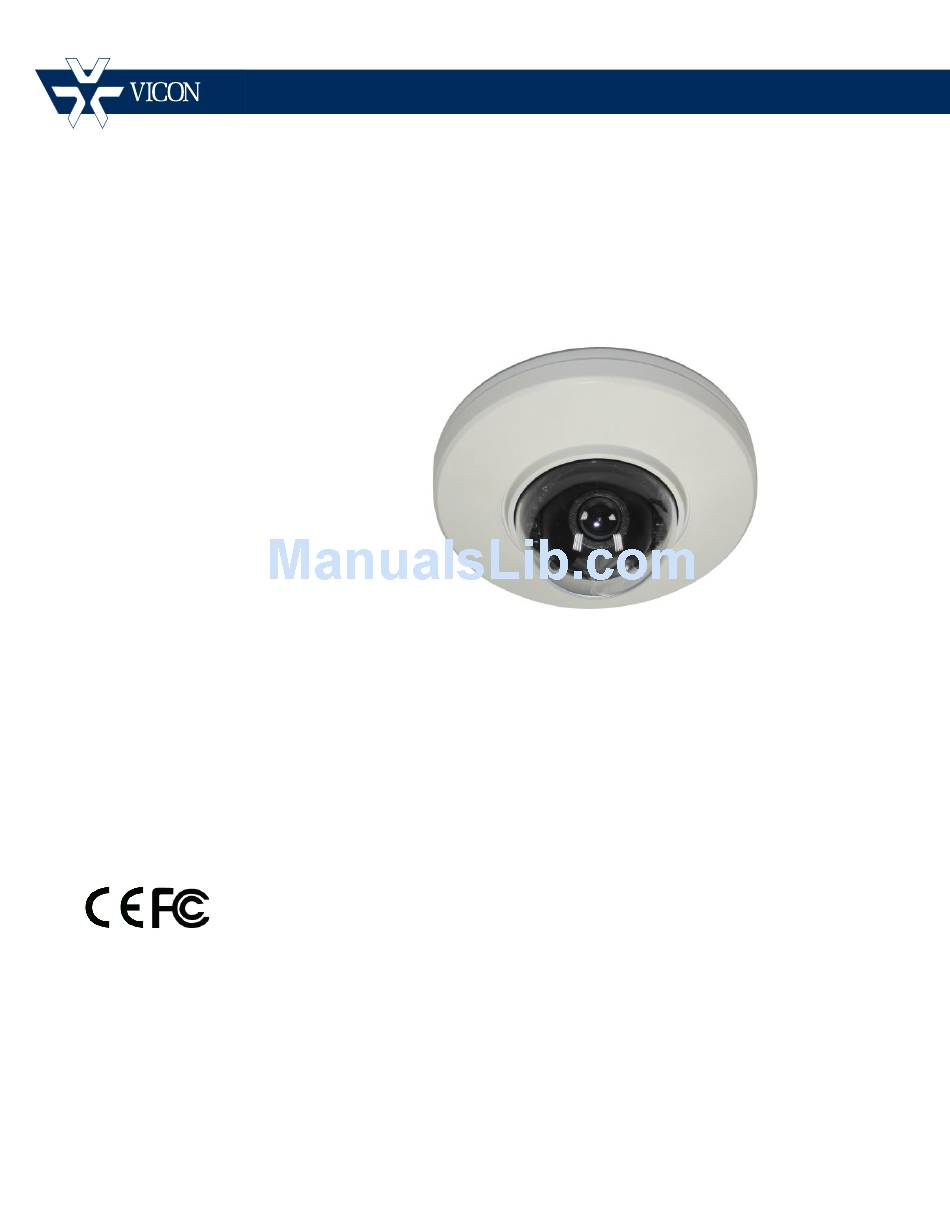

Page 1: Camera Dome
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose. - Page 3 Series of Camera Domes. These units should only be installed by a qualified technician using approved materials in conformance with federal, state, and local codes. Read these instructions thoroughly before beginning an installation. Always refer to Vicon’s website to assure you have the most up-to- date manual, www.vicon-security.com.
-
Page 4: Camera Installation
CE202D-N Series Quick Installation Guide 2. Installation 2.1 Camera Installation Carefully remove the contents from the box, and verity that nothing was damaged in shipment. 1) Using the template sheet provided, make screw holes for camera on the ceiling. 2) Disassemble the camera by turning the camera cover counter-clockwise so it can be removed. -
Page 5: Connection Description
CE202D-N Series Quick Installation Guide 2.2 Connection onnection Description Name Description Alarm Cable Yellow : Alarm input, Black : GND, Blue : Alarm output Power Cable Cable for Power source (DC 12V) Ethernet Cable Cable for Ethernet (POE) Name... - Page 6 CE202D-N Series Quick Installation Guide • Connecting to the RJ-45 Connect a standard RJ-45 cable to the network port of the network camera. Generally a cross-over cable is used for directly connection to PC, while a direct cable is used for connection to a hub.
-
Page 7: Network Connection And Ip Assignment
CE202D-N Series Quick Installation Guide 2.3 Network Connection and IP assignment The network camera is designed for use on an Ethernet network and requires an IP address for access. Most networks today have a DHCP server that automatically assigns IP addresses to connected devices. -
Page 8: Operation
CE202D-N Series Quick Installation Guide 3. Operation The network camera can be used with Windows® operating system and browsers. The recommended browsers are Internet Explorer®, Safari®, Firefox®, Opera® and Google® Chrome® with Windows. Note: To view streaming video in Microsoft® Internet Explorer, set your browser to allow ActiveX controls. -
Page 9: Access From The Internet
CE202D-N Series Quick Installation Guide 3.2. Access from the internet Once connected, the network camera is accessible on your local network (LAN). To access the network camera from the Internet you must configure your broadband router to allow incoming data traffic to the network camera. -
Page 10: General Controls
CE202D-N Series Quick Installation Guide 1) General controls Live View Page Search & Playback Page Setup Page Help Page The video drop-down list allows you to select a customized or pre-programmed video stream on the live view page. Stream profiles are configured under Setup > Basic Configuration >... -
Page 11: Resetting To The Factory Default Settings
CE202D-N Series Quick Installation Guide 3.5 Resetting to the factory default settings To reset the network camera to the original factory settings, go to the Setup>System> Maintenance web page (described in “3.5.5 System > Maintenance”) or use the Reset button on the network camera, as described below. - Page 12 Vicon Industries Inc. Internet Address: www.vicon-security.com C 202D-N Network Camera Dome 5030...
