INSTRUCTION MANUAL XX178-00
VC-700 and VC-710

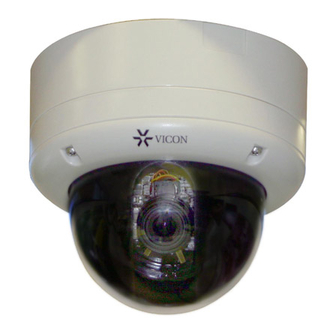

COLOR DOME CAMERAS
About this manual
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for later reference.
This installation should be made by a qualified service person and should conform to the
National Electric Code, ANSI/NFPA 70 and all local codes.
Installers should use appropriate hardware mounting materials.
Dimensions : inch (mm)
Surface-Mount configuration
In-Ceiling configuration
Advertisement
Related Manuals for Vicon VC-700
Summary of Contents for Vicon VC-700
- Page 1 INSTRUCTION MANUAL XX178-00 VC-700 and VC-710 COLOR DOME CAMERAS About this manual Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for later reference. This installation should be made by a qualified service person and should conform to the National Electric Code, ANSI/NFPA 70 and all local codes.
- Page 2 PRECAUTIONS ■ Do not open or modify Do not open the case except during maintenance and installation, as it may be dangerous and cause damages. ■ Do not put objects inside the unit Make sure that no metal objects or flammable substances get inside the camera.
-
Page 3: Troubleshooting
TROUBLESHOOTING Before sending the camera out for repair, check the items below. If the problem persists after checking these items, contact your service center. ■ If no image appears Is the coaxial cable attached securely? Are the power and voltage normal? Has the iris of the lens inside the camera been adjusted correctly (with the level volume) ? Is there adequate illumination? - Page 4 SPECIFICATION - VC-700 SERIES GENERAL Spec NTSC HQ Interline Transfer CCD 1/3" 410K Pixels Color 1/3" 470K Pixels Color Total Number of Pixels 811(H) x 508(V) 795(H) x 596(V) Scanning System 525 Lines 625 Lines 550TV Lines Horizontal Resolution Sensitivity to Light [30IRE] 0.03fc, 0.3Lux(Scene) With F1.2 Lens...
- Page 5 CONNECTIONS 12VDC-24VAC RED (+) BLACK (-) VIDEO 11.8in (300mm Cable for connection to portable monitor, provided. When using a portable monitor, terminate at 75ohms (at last device). 12VDC-24VAC RED (+) BLACK (-) VIDEO CAUTION The use of a UL Listed Class 2 power supply is required to ensure compliance with electrical safety standards.
-
Page 6: Camera Settings
CAMERA SETTINGS ■ CAMERA SETTINGS FOR VC-700 SERIES (1) BLC (2) ME/AE (3) AWB (4) AGC (5) DC Iris volum e (6) 2nd Video out (7) Line Lock (1) Compensating for backlight When back light is too bright Normal setting CAUTION : This can also be set correctly by adjusting DC Lens control (5). - Page 7 (5) Adjusting level volume If the entire image is too dark or bright, or the backlight compensation is not correct even after (1) is set to "ON", adjust the level volume. CCW (Low) Closes the lens iris, making the entire image darker CW(High) Opens the lens iris, making the entire image brighter (6) SECOND VIDEO OUT CONNECTOR...
- Page 8 (2) Confirming the White Balance Use this under light source below 2500K and over 9500K of Natrium (Sodium) low color temperature light. Use this under lightsource between 2500K and 9500K of fluorescent lamp or incandescent light (3) WDR mode Wide dynamic function is working Wide dynamic function is not working (4)Setting gain control (AGC) For adjusting the sensitivity of the camera.
- Page 9 2.30(R58.5) 360˙ The VC-700 and VC-710 can be either mounted to a surface (like a ceiling or wall) or installed into the ceiling, with or without an electrical box. Use the large (Torx T20) L-Wrench to loosen the 4 screws (B) securing the dome assembly.
- Page 10 2 On Yiu Street, Shatin Lahnstrasse New Territories, D-24539 Neumuenster Hong Kong Phone: +49 (0) 4321 8790 (852) 2145-7118 Fax: +49 (0) 4321 879 47 Fax: (852) 2145-7117 Internet Address: www.vicon-cctv.com Vicon Part Number 8009-8178-00-00 Rev 407...
