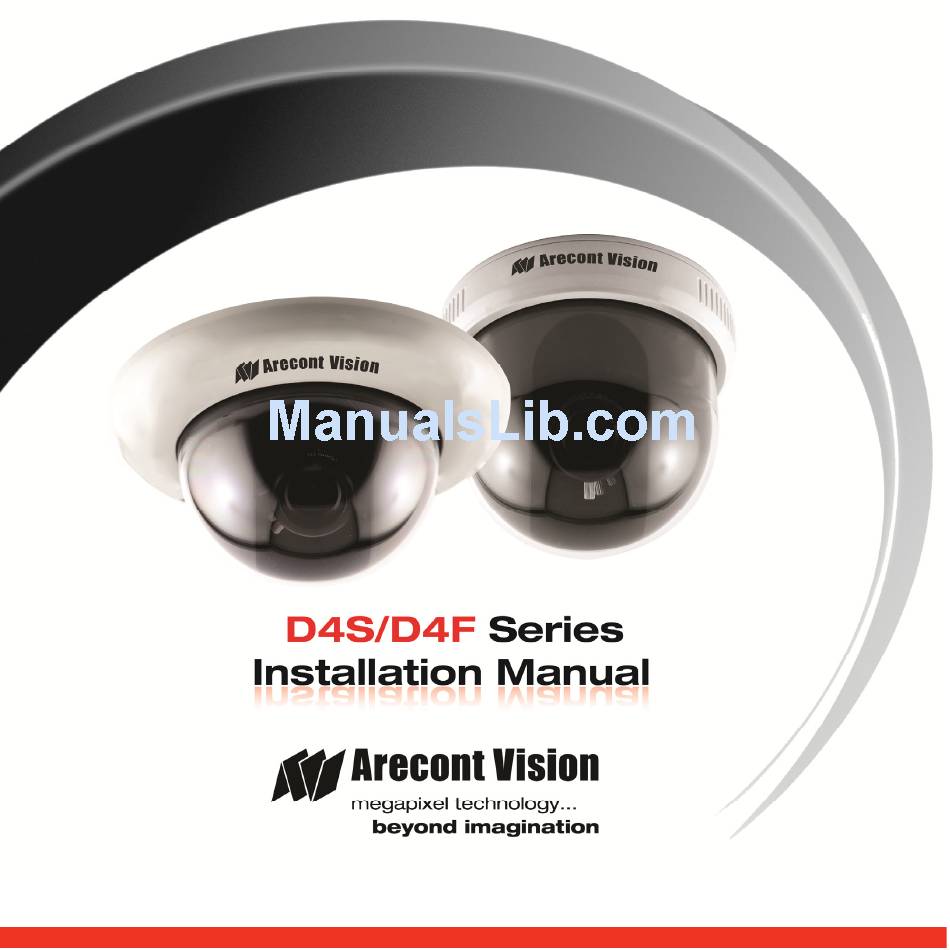

- Page 1 Arecont Vision D4S/D4F Installation Manual 0 | P a g e...
- Page 2 Arecont Vision D4S/D4F Installation Manual D4S/D4F Indoor Dome Installation Manual 1 | P a g e...
- Page 3 Inside the box: Remove camera and hardware from the box. Mounting template NOTE : D4S and D4F has two kinds of lens Arecont Vision D4S (Image 1-1) or options, 3.3-12mm and 4mm, as shown in D4F (Image 1-2) image 2.
- Page 4 Arecont Vision D4S/D4F Installation Manual Use #0 Philips head screwdriver to loosen the set screw to release the dome cover (Image 3-1 and 3-2). NOTE: Do not remove screw from the dome cover. Image 4-1 D4S Image 3-1 D4S Image 3-2 D4F...
- Page 5 Arecont Vision D4S/D4F Installation Manual RJ45 port on AV’s H.264 compact mounting surface. Attach D4S to the ® MegaVideo camera. (Image 5-1 and 5-2) mounting surface with the wood screws or any optional hardware suitable for the mounting surface. (Image 6)
- Page 6 Arecont Vision D4S/D4F Installation Manual To adjust the tilt, use a #1 Phillips screwdriver CAUTION: When using D4S/D4FAVxxxx- to loosen the screw on the sides of the metal 3312, please push camera to the end of U U bracket 1/4 turn (Image 8-1 and 8-2).
- Page 7 Arecont Vision D4S/D4F Installation Manual NOTE: Adjust cable to make camera tilt easier, if cable pushes against plastic housing. (Image 10-1 and 10-2) To adjust the pan, hold and turn the U bracket as shown in Image 11. Image 10-1 D4S Pan=360° ...
- Page 8 Arecont Vision D4S/D4F Installation Manual Adjusting the Focus: 10.1 For D4S/FAVxxxx-3312 version, to focus the lens, loosen the three set screws as shown in Image 12-1 and adjust each as needed. A adjusts the zoom, B adjusts the iris, C adjusts the focus.
- Page 9 Arecont Vision D4S/D4F Installation Manual How to flip upside down image? How to install camera properly? Note: Resetting the camera to factory default will Note: D4 Series ships with the image rotated for result in the image flipping upside down. Please ceiling installation.
- Page 10 Arecont Vision D4S/D4F Installation Manual Pendant Mount (D4S-CMT) Installation Instructions Inside the box: Pendant Mount (Fit with ¾” NPT) Mounting template C. Pack of three (3) machine screws, three (3) wood screws and three (3) dry wall anchors Not included but needed: D.
- Page 11 Arecont Vision D4S/D4F Installation Manual Wall Mount (MD-WMT) Installation Instructions Inside the box: Wall mount ( Fit ¾” NPT Standard) Mounting template C. Pack of three (3) machine screws, four (4) wood screws and four (4) dry wall anchors Not included but needed: ...
- Page 12 Arecont Vision D4S/D4F Installation Manual 10 | P a g e...
