Installation
a/b1
Relay
Actor2
Actor1
Door opener
Sensor
230 V ~
doorway equipment produced by Siedle

3.12.5 COM Port

By installing the V.24 interface card a serial port on the COM interface is provided.
Please note:
A PC for configuring the OpenCom 100 or transmitting call data can be connected
to the COM port. This call data can be evaluated in detail with the call charge regis-
tration program OpenCount.
56
PVG 402-0
Amplifier
To c1
Ts 7
-T LW
+T 1
To 12
Ts* 11
b 9
a +
NG 402-02
Ac adapter
b
12 V ~
c
+
-
9

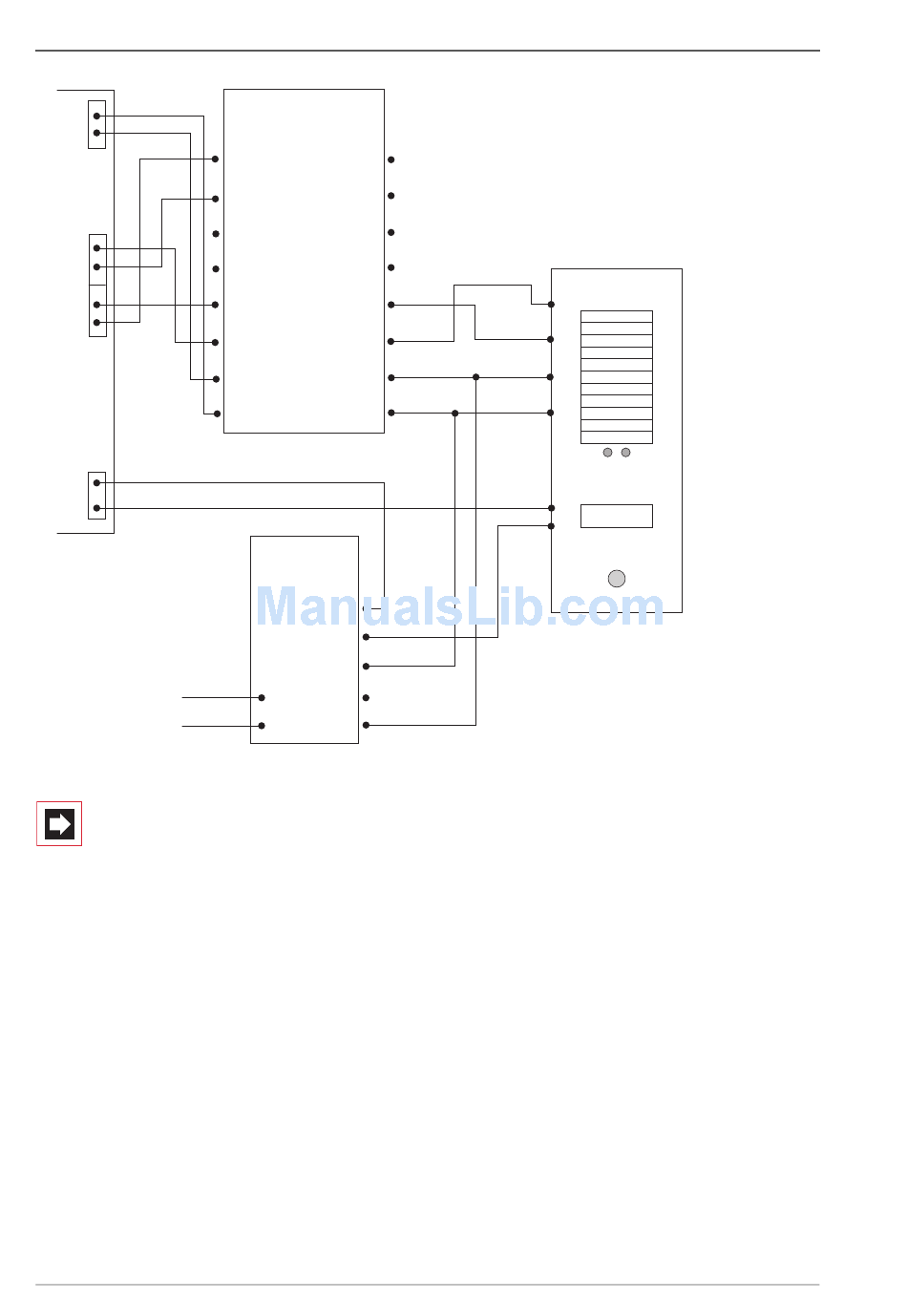

Note: The above diagram shows the usage of the "PVG 402-
0" module (which merely serves as an example). Other mo-
dules can also be operated, such as its successor, "PVG 602-
01".
The connection line for the COM port can be up to three me-
tres long.
Connectible Devices
Siedle
11
12
9
+
Door bell
Connection of
