Branch Settings

Have you made the network
settings for the OpenCom?
Configure the LAN-LAN
connection.
"NET Configuration: Branch"
Yes
Yes

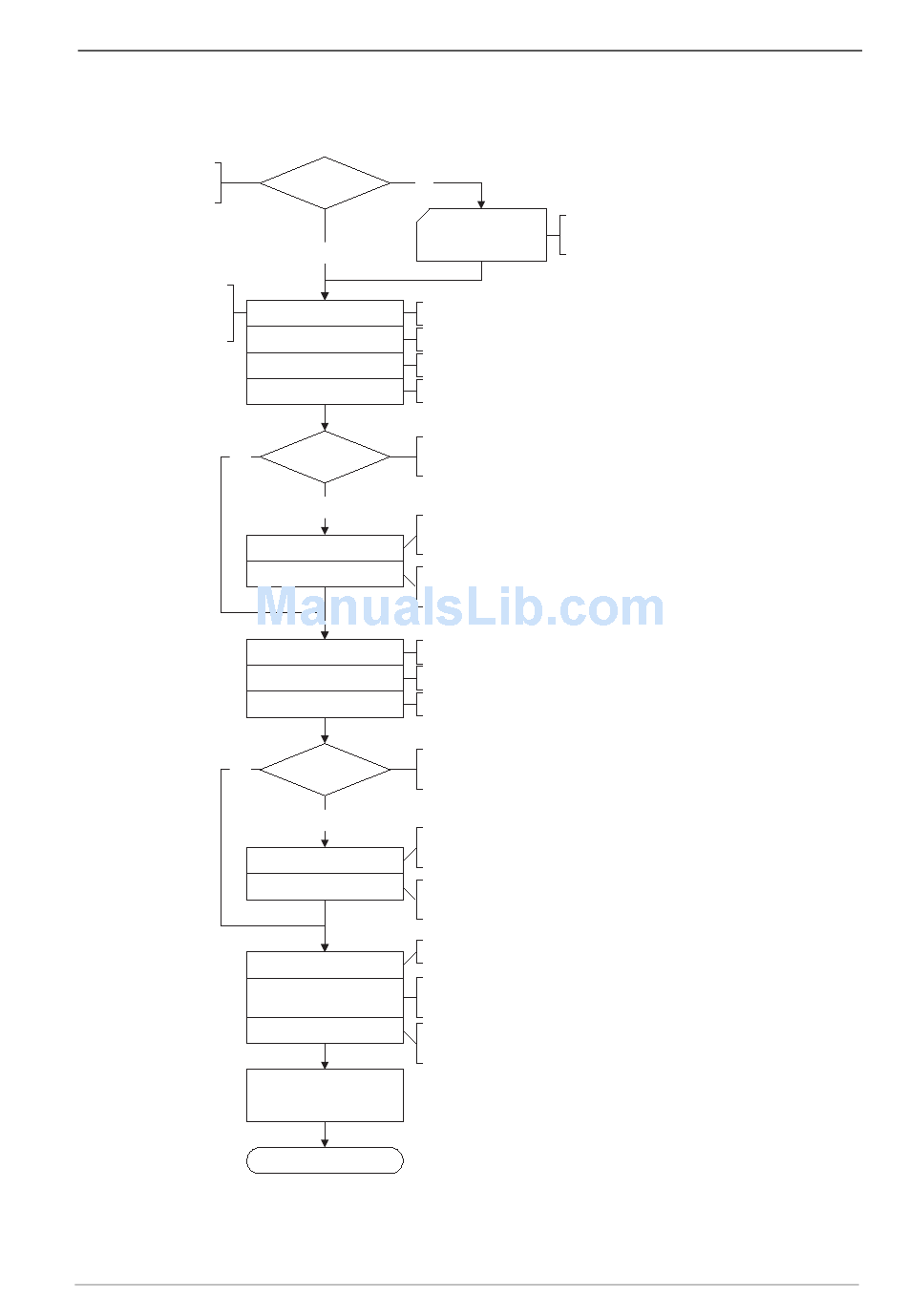

Flowchart: Configuring the LAN-to-LAN Settings
LAN No
Yes
Protocol Select between PPP and HDLC transparent.
Telephone number local Enter the internal telephone number.
IP address local Enter the local IP address.
Network mask local Enter the local network mask.
Authorisation method of the local
CLID
LAN: CLID, PAP or CHAP?
No
Specify the user name with which the
remote LAN can access a destination.
User name local
Password local
Specify the password with which the
remote LAN can access a destination.
Telephone number remote Specify the telephone number of the remote LAN access.
IP address remote Specify the IP address of the remote LAN.
Network mask remote Specify the network mask of the remote LAN.
Authorisation method of the remote
CLID
LAN: CLID, PAP or CHAP?
No
Specify the user name with which
the remote LAN can be accessed.
User name remote
Password remote
Specify the password with which
the remote LAN can be accessed.
Select the direction of the connection.
Direction of connection
Maximum connection Specify the maximum number of minutes per month
time per month the connection to the remote LAN can be set up for.
Maximum idle time
Set the maximum idle time after which a
connection to the remote LAN is cleared down.
Add internal telephone
number to the incoming call
distribution scheme.
Finished
NET Configuration: Configure the network-
LAN settings for the OpenCom.
Branch Settings
