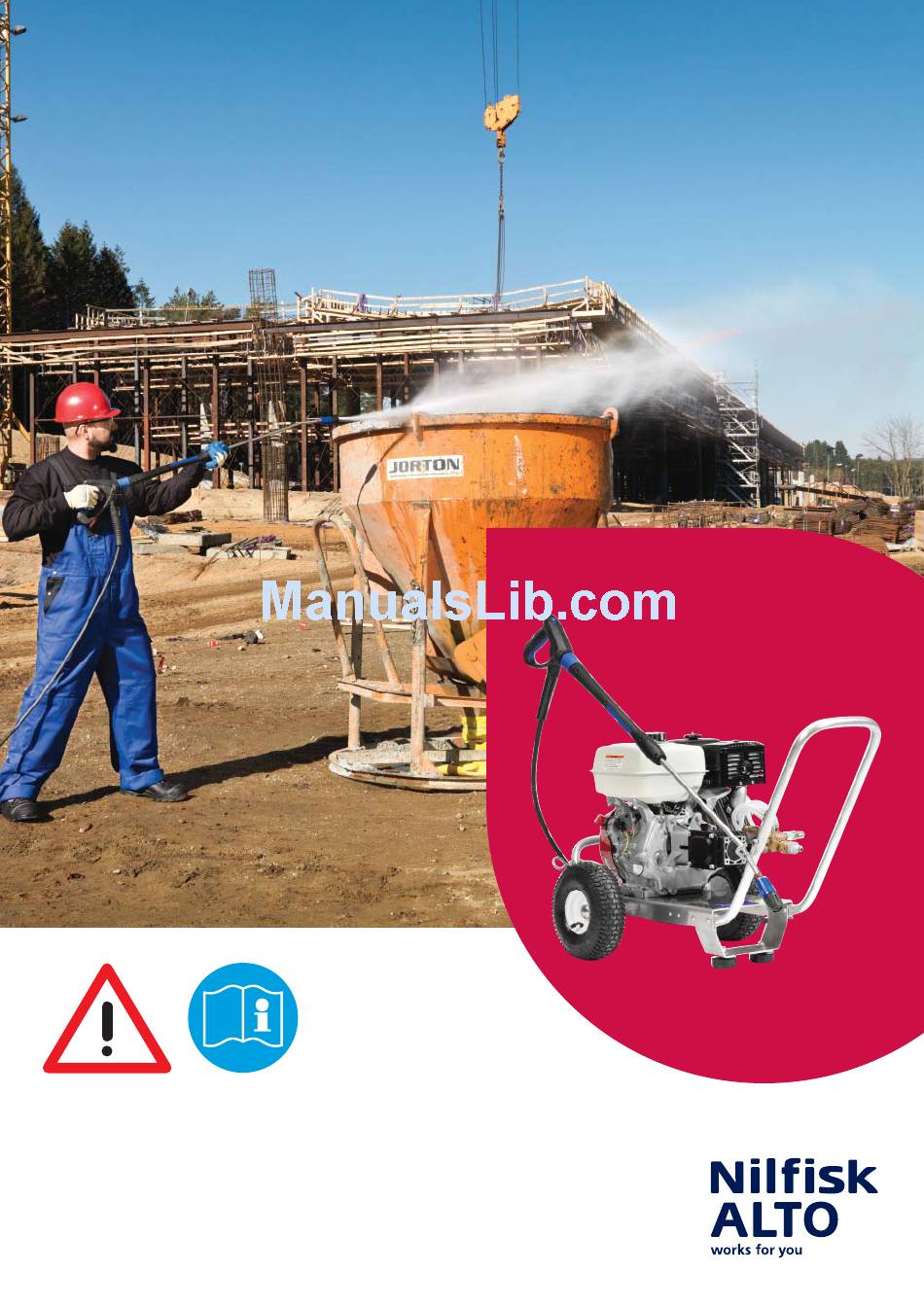

Page 1: Operating Instructions
Operating instructions POSEIDON PE 106169306... - Page 2 User manual ............. 3 - 18 Betriebsanleitung ..........19 - 35 Manuel d‘instructions ........36 - 52 Gebruikershandleiding ........53 - 70 Manuale di istruzioni ......... 71 - 87 Instruktionsbog ..........88 - 103 Instruksjonsbok ..........104 - 119 Instruktionsbok ..........120 - 134 Käyttöohje ............
-
Page 3: Table Of Contents
POSEIDON PE Contents Symbols ....................4 1 Important safety notes ....................4 2 Description 2.1 Intended use ................7 2.2 Operating elements ..............7 3 Before starting the 3.1 Setting up the pressure washer ..........8 pressure washer 4 Operation and use 4.1 Connections ................8 4.2 Start the pressure washer ............10... - Page 4 POSEIDON PE Symbols Before starting This symbol is used up your high- to mark safety pressure washer instructions for the fi rst time, that must be this instruction observed to prevent manual must be damage to the machine and its read through carefully.
- Page 5 POSEIDON PE or recommended by the Water connection manufacturer. The use of other This high pressure cleaning agents or chemicals washer is only may adversely affect the safety allowed to be of the machine. connected with the drinking water Risk of explosion – Do not spray mains, when an appropriate flammable liquids.
- Page 6 POSEIDON PE CAUTION! examination in accordance the intake line of the pump High pressure hoses, fi ttings with the „Accident Prevention when the safety device is and couplings are important Regulations for Working with tripped. for the safety of the washer.
-
Page 7: Intended Use
POSEIDON PE 2 Description Intended use This high pressure washer has been designed for professional use in - agriculture - transport industry - construction industry etc. Operating elements 1 Start/stop switch 2 Lance 3 Holder for lance 4 Holder for high pressure hose... -
Page 8: Setting Up The Pressure Washer
POSEIDON PE 3 Before starting the pressure washer Setting up the pressure washer (does not apply to POSEIDON 2-35 PE / POSEIDON 3-39 PE) 1. Before using the pressure washer for the fi rst time, check it carefully to detect any faults or damage. - Page 9 POSEIDON PE 4.1.2 Connecting the high pressure hose and the water hose 1. Connect the high pressure hose to the high pressure inlet by means of the quick coupling. Use max. 50 m extension hose. 2. Before connecting the water hose to the washer, rinse the water hose briefl...
-
Page 10: Start The Pressure Washer
POSEIDON PE Start the washer 1. Start the engine. (See the 2. Unlock the spray gun and 4.2.1 Switching on the operating manual for the fuel activate it. washer when it is engine.) 3. Lock the safety catch even connected to a water during short pauses. -
Page 11: Using Detergents
POSEIDON PE 4.2.3 Start POSEIDON PE with electric starter 1. Start the engine by turning the key (see the operating instructions for the engine. 2. Check that the throttle lever is adjusted correctly - need to be in Run position. -
Page 12: Switching Off The Pressure Washer
1. Stop the engine. 2. Close the tap. 3. Operate the spray gun until the wasser is depressurized. 4. Lock the safety catch. Switching off POSEIDON PE with electric start 1. Stop the washer by moving the throttle lever to STOP position. -
Page 13: Maintenance Plan
POSEIDON PE 6 Maintenance Maintenance plan every six weekly months or as required 500 operating hours • 6.2.1 Clean water fi lter • 6.2.2 Clean high pressure nozzle • 6.2.3 Check oil level • 6.2.4 Change oil - Note: First time after 50 hours •... - Page 14 POSEIDON PE 6.2.3 Checking the oil level (does not apply to POSEIDON 2-35 PE / POSEIDON 3-39 PE) 1. Check whether the oil level is in the middle of the oil inspection glass, oil cup or dip stick. Top up with oil if necessary (see section 8.3...
- Page 15 POSEIDON PE 6.2.5 Check of V-belts 1. Remove the spark plug cable. 2. Dismantle the cover of the V-belts. 3. Check the belts for any damage or missing tension. 4. If required, replace the belts. 5. Mount the cover. 6. Mount the spark plug cable.
- Page 16 POSEIDON PE 7 Troubleshooting Fault Cause Remedy Pressure drop > Air in the system • Vent the system by operating the spray gun several times at short intervals. If necessary, dismount the lance (see section 4.2.2). > High-pressure nozzle • Clean/replace the high- blocked/worn pressure nozzle.
-
Page 17: Recycling The Pressure Washer
POSEIDON PE Cause Fault Remedy The motor stops > Low oil level in engine • Fill with oil. > Low oil level in pump(does • Fill with oil not apply to POSEIDON 2-35 When a detergent injector is > Injector is dirty or suction •... -
Page 18: Technical Data
POSEIDON PE Technical data POSEIDON POSEIDON POSEIDON POSEIDON POSEIDON POSEIDON POSEIDON POSEIDON 2-35 PE 3-39 PE 3-37 PE+ 5-50 PE 5-51 PE+ 5-59 PE 5-64 PE+ 7-61 PE+ Working pressure Water fl ow (max) 1000 1010 Water fl ow Q... - Page 20 HOLLAND RUSSIA Nilfi sk-Advance B.V. Nilfi sk-Advance LLC Versterkerstraat 5 Vyatskaya str. 27, bld. 7, 1st fl oor 1322 AN ALMERE Moscow, 127015 www.nilfi sk.nl www.nilfi sk.ru SOUTH AFRICA HONG KONG WAP South Africa (Pty) Ltd Nilfi sk-Advance Ltd. 12 Newton Street 2001 HK Worsted Mills Ind’l Bldg.
