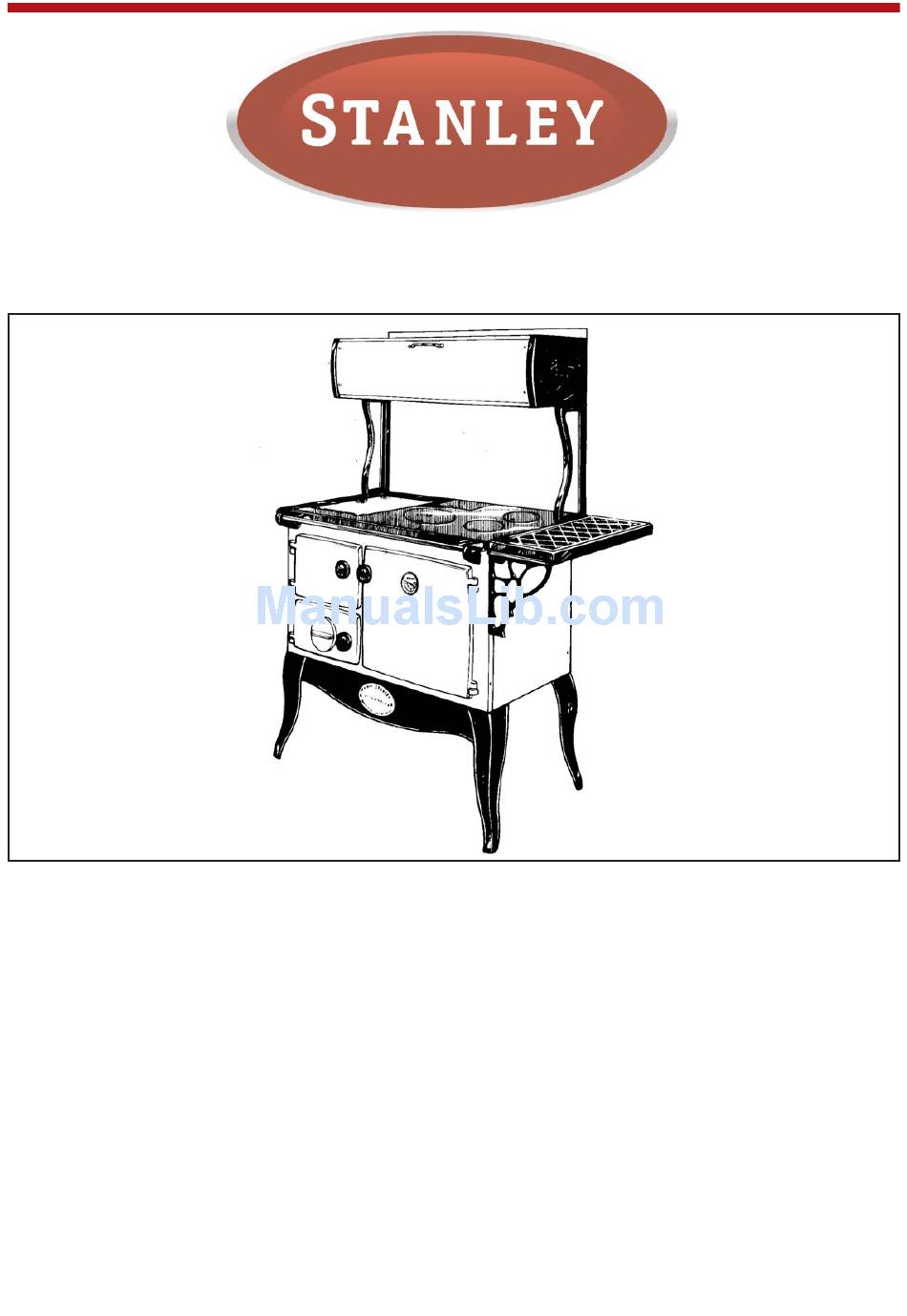

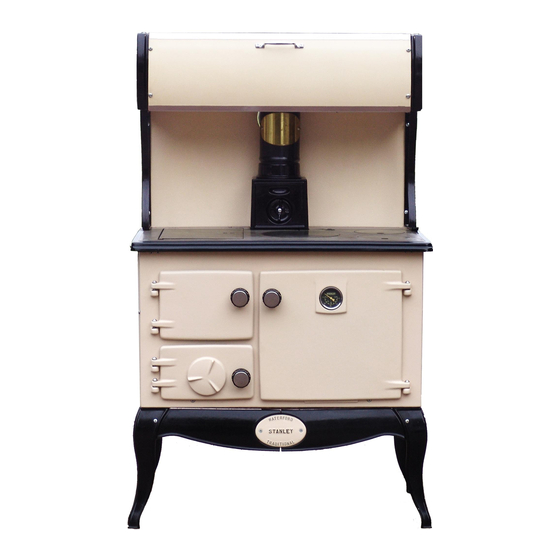

Errigal Solid Fuel Boiler/Non Boiler Range
SAFETY NOTICE
PLEASE READ THIS ENTIRE MANUAL BEFORE YOU INSTALL AND USE YOUR NEW COOK STOVE. FAIL-
URE TO FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE,
BODILY INJURY OR EVEN DEATH. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
IF THIS APPLIANCE IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT. FOR YOUR SAFETY,
FOLLOW THE INSTALLATION DIRECTIONS. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT
RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS IN YOUR AREA.
THIS APPLIANCE MUST BE CONNECTED TO A LISTED, HIGH-TEMPERATURE RESIDENTIAL TYPE AND
BUILDING HEATING APPLIANCE CHIMNEY OR AN APPROVED MASONRY CHIMNEY WITH FLUE LINER.
THE COMPLETE INSTALLATION MUST BE DONE IN ACCORDANCE WITH CURRENT STANDARDS AND
LOCAL CODES. IT SHOULD BE NOTED THAT THE REQUIREMENTS AND THESE PUBLICATIONS MAY
BE SUPERSEDED DURING THE LIFE OF THIS MANUAL.
MANUFACTURED BY: WATERFORD STANLEY (MARKETING) LTD., BILBERRY, WATERFORD,
IRELAND.
ASSEMBLY INSTALLATION AND OPERATING INSTRUCTIONS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stanley standley
Summary of Contents for Stanley standley
- Page 1 THE COMPLETE INSTALLATION MUST BE DONE IN ACCORDANCE WITH CURRENT STANDARDS AND LOCAL CODES. IT SHOULD BE NOTED THAT THE REQUIREMENTS AND THESE PUBLICATIONS MAY BE SUPERSEDED DURING THE LIFE OF THIS MANUAL. MANUFACTURED BY: WATERFORD STANLEY (MARKETING) LTD., BILBERRY, WATERFORD, IRELAND. ASSEMBLY INSTALLATION AND OPERATING INSTRUCTIONS...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE Introduction ............2 Specification . -
Page 3: Introduction
The complete installation must be done in accordance with current Standards and Local Codes. It should be noted that the requirements and these publications may be superseded during the life of this manual. IMPORTANT NOTICE: Any alteration to this appliance that is not approved in writing by Waterford Stanley will render the guarantee void. -
Page 4: Specification
SPECIFICATION Fig.2 NOTE: Dimensions stated below may be subject to a slight +/- variation. DIMENSIONS METRIC 1388 950 452 (millimetre) IMPERIAL (inches) FEATURE METRIC IMPERIAL HOT PLATE 911.25 cm 144 in 3 /4 3 /4 OVEN 400W x 330H x 400D W x 13H x 15 TECHNICAL DATA CHIMNEY DRAUGHT:... -
Page 5: Pre-Installation Assembly
Bonnet Ring Fig.3 ASSEMBLY Bonnet Bonnet Door Simmering Plate Cleaning Cup (2) Hob Sealing Plate Hot Plate Oven Damper Oven Shelf (Sheet Iron) Oven Shelf (Cast Iron) Riddling Grate Ash Pan Leg (4) Plinth RHS Plinth LHS Nameplate Plinth Joining Clip Poker Scraper Riddling/Operating Tool... -
Page 6: Top Flue Exit
8. Place the oven damper in position (Part No. sealing plate (Part No 33) and fit the rear outlet spig- 18) on top of the oven and place the simmering ot (Part No 94) to the flue back (Part No 32). plate (Part No. -
Page 7: Flue Cleaning
LATION, IT IS IMPERATIVE THAT THE CHIMNEY CHIMNEY IS INSPECTED FOR SCALED SOOT PARTICLES AFTER THE FIRST MONTH OF OPERATION AND The Waterford Stanley Solid Fuel Range must be ANY LOOSE MATERIALS REMOVED TO AVOID connected to a Factory-Built Chimney, installed in BLOCKAGE. -
Page 8: Clearance To Combustibles
CLEARANCES TO COMBUSTIBLES there is combustion present. Existing fuel-fired equipment in the house Maintain at least the following clearances to all such as fireplaces or other heating appli- combustible material: ances, smell, do not operate properly, suffer smoke roll-out when opened, or back-draft Front 1220mm (36”) whether or not there is combustion present. -
Page 9: Plumbing
GRAVITY CIRCUIT PLUMBING Diagrams illustrate the basic principles of water sys- The gravity circuit consists of a domestic hot water tems and are not to be regarded as working draw- tank of 135 litres Indirect Cylinder for central Heating ings. units and Direct Cylinder for Domestic Hot Water Fig. -
Page 10: Care For Your Central Heating System
DRAINING required minimum, a three-way mixing valve may be fitted to the flow pipe to divert some hot water Key - operated drain taps to B.S. 2879 should be straight back into the return. Such a valve can be provided in accessible positions in all low parts of operated either manually or electrically in conjunc- the system. -
Page 11: Refuelling
IMPORTANT: UNDER NO CIRCUMSTANCES Fig.15 SHOULD ANY FLAMMABLE LIQUID, GASOLINE KEROSENE, LIGHTER FLUID OR CHARCOAL- STARTERS BE USED TO LIGHT OR “FRESHEN UP” THE FIRE. NEVER USE MANUFACTURED LOGS. OPERATE APPLIANCE ONLY WITH FUELLING DOOR AND ASHPIT DOOR CLOSED. THIS APPLIANCE IS HOT WHILST IN OPERA- TION, KEEP CHILDREN, CLOTHING AND FURNI- TURE A SAFE DISTANCE AWAY. -
Page 12: Main Oven
USE OF TOOLS MAIN OVEN Fig.17 When baking or roasting, open the oven damper and spin valve fully until the thermometer shows a temperature about 50 F (10 C) higher than that which is required. Then close the Spin Valve to a point where the required temperature is sustained (a little practice will soon show how much adjustment is necessary). -
Page 13: Cleaning Instructions
CLEANING INSTRUCTIONS Remove the hotplates (Part No. 4 & 7), the bonnet To remove all the accumulated deposits, take off the door (Part No. 3), the oven damper (Part No. 18) cleaning door (Part No. 82) situated immediately and the cleaning cups (Part No. 5) from the top of under the oven on the front of the cooker and thor- the cooker. -
Page 14: Cleaning Of Mild Steel Parts
CLEANING THE MILD STEEL PARTS The steel side panels and splash back must not be cleaned with steel wool. Use only washing up liquid in hot water with a lint free cloth. Dry off and apply a coat of good quality furniture polish. CLEANING THE OVENS Grease spillages will burn off from the oven interior, when the oven is hot and any other loose materials... -
Page 15: Exploded View
EXPLODED VIEW 50. Bottom Grate Rest 77. Fire Door Rope 51. Ash Pit Back 78. Fire Door Protection Panel 52. Ash Pit L.H.S 79. Spin Valve 53. Ash Pit R.H.S 80. Ashpit Door 54. Ash Pit Bottom 81. Ashpit Door Rope 55. - Page 16 Manufactured by Waterford Stanley Ltd., Unit 210, IDA Industrial Estate, Cork Road, Waterford, Ireland. Tel: (051) 302300 Fax (051) 302315 N00076AXX DP 070830...
