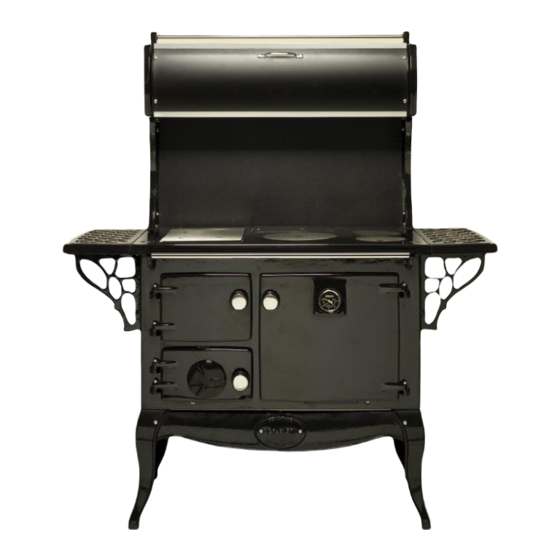

Errigal Solid Fuel Boiler/Non Boiler Range
SAFETY NOTICE
PLEASE READ THIS ENTIRE MANUAL BEFORE YOU INSTALL AND USE YOUR NEW COOK STOVE. FAIL-
URE TO FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN
DEATH. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
IF THIS APPLIANCE IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT. FOR YOUR SAFETY,
FOLLOW THE INSTALLATION DIRECTIONS. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT
RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS IN YOUR AREA.
THIS APPLIANCE MUST BE CONNECTED TO A LISTED, HIGH-TEMPERATURE RESIDENTIAL TYPE AND
BUILDING HEATING APPLIANCE CHIMNEY OR AN APPROVED MASONRY CHIMNEY WITH FLUE LINER.
The complete installation must be done in accordance with current Standards and Local Codes. It
should be noted that the requirements and these publications may be superseded during the life of this
manual.
ASSEMBLY, INSTALLATION AND OPERATING INSTRUCTIONS

Advertisement

Table of Contents
loading

Related Manuals for Stanley Errigal

Summary of Contents for Stanley Errigal

  • Page 1 Errigal Solid Fuel Boiler/Non Boiler Range SAFETY NOTICE PLEASE READ THIS ENTIRE MANUAL BEFORE YOU INSTALL AND USE YOUR NEW COOK STOVE. FAIL- URE TO FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE  Introduction ..............Specification.
  • Page 3 PAGE  Cleaning of Mild Steel Parts............Cleaning The Ovens .

  • Page 4: Introduction

    The complete installation must be done in accordance with current Standards and Local Codes. It should be noted that the requirements and these publications may be superseded during the life of this manual. IMPORTANT NOTICE: Any alteration to this appliance that is not approved in writing by Waterford Stanley will render the guarantee void.

  • Page 5: Specification

    SPECIFICATION Fig.2 Note: Dimensions stated are in millimetres unless otherwise stated and may be subject to a slight +/- variation. FEATURE METRIC HOT PLATE 911.25 cm OVEN 400W x 330H x 400D TECHNICAL DATA CHIMNEY DRAUGHT: 0.06” - 0.10” wg. (1.52mm - 2.54mm) FLUE DIAMETER: 5”...

  • Page 6: Pre-Installation Assembly

    Bonnet Ring Fig.3 ASSEMBLY Bonnet Bonnet Door Simmering Plate Cleaning Cup (2) Hob Sealing Plate Hot Plate Oven Damper Oven Shelf (Sheet Iron) Oven Shelf (Cast Iron) Riddling Grate Ash Pan Leg (4) Plinth RHS Plinth LHS Nameplate Plinth Joining Clip Poker Scraper Riddling/Operating Tool...

  • Page 7: Top Flue Exit

    8. Place the oven damper in position (Part No. sealing plate (Part No 33) and fit the rear outlet spig- 18) on top of the oven and place the simmering ot (Part No 94) to the flue back (Part No 32). plate (Part No.

  • Page 8: Flue Cleaning

    LATION, IT IS IMPERATIvE THAT THE CHIMNEY CHIMNEY IS INSPECTED FOR SCALED SOOT PARTICLES AFTER THE FIRST MONTH OF OPERATION AND The Waterford Stanley Solid Fuel Range must be ANY LOOSE MATERIALS REMOvED TO AvOID connected to a Factory-Built Chimney, installed in BLOCKAGE.

  • Page 9: Clearance To Combustibles

    CLEARANCES TO COMBUSTIBLES there is combustion present. 2. Existing fuel-fired equipment in the house Maintain at least the following clearances to all such as fireplaces or other heating appliances, combustible material: smell, do not operate properly, suffer smoke roll- out when opened, or back-draft whether or not Front 1220mm (36”) there is combustion present.

  • Page 10: Plumbing

    GRAvITY CIRCUIT PLUMBING Diagrams illustrate the basic principles of water sys- The gravity circuit consists of a domestic hot water tems and are not to be regarded as working draw- tank of 135 litres Indirect Cylinder for central Heating ings. units and Direct Cylinder for Domestic Hot Water Fig.

  • Page 11: Care For Your Central Heating System

    DRAINING required minimum, a three-way mixing valve may be fitted to the flow pipe to divert some hot water Key - operated drain taps to B.S. 2879 should be straight back into the return. Such a valve can be provided in accessible positions in all low parts of operated either manually or electrically in conjunc- the system.

  • Page 12: Refuelling

    Fig.15 IMPORTANT: UNDER NO CIRCUMSTANCES SHOULD ANY FLAMMABLE LIQUID, GASOLINE KEROSENE, LIGHTER FLUID OR CHARCOAL- STARTERS BE USED TO LIGHT OR “FRESHEN UP” THE FIRE. NEvER USE MANUFACTURED LOGS. OPERATE APPLIANCE ONLY WITH FUELLING DOOR AND ASHPIT DOOR CLOSED. THIS APPLIANCE IS HOT WHILST IN OPERA- TION, KEEP CHILDREN, CLOTHING AND FURNI- TURE A SAFE DISTANCE AWAY.

  • Page 13: Main Oven

    USE OF TOOLS MAIN OvEN Fig.17 When baking or roasting, open the oven damper and spin valve fully until the thermometer shows a temperature about 50 F (10 C) higher than that which is required. Then close the Spin Valve to a point where the required temperature is sustained (a little practice will soon show how much adjustment is necessary).

  • Page 14: Cleaning Instructions

    CLEANING INSTRUCTIONS Remove the hotplates (Part No. 4 & 7), the bonnet To remove all the accumulated deposits, take off the door (Part No. 3), the oven damper (Part No. 18) cleaning door (Part No. 82) situated immediately and the cleaning cups (Part No. 5) from the top of under the oven on the front of the cooker and thor- the cooker.

  • Page 15: Cleaning The Ovens

    CO ALARM CLEANING THE MILD STEEL PARTS We recommend the fitting of a CO Alarm in the same The steel side panels and splash back must not be room as the appliance, this is a requirement under cleaned with steel wool. Use only washing up liquid UK Building Regulations.

  • Page 16: Exploded View

    96. Fire Fence 100. Cleaning Brush Boiler Options 97. 47 K Boiler 98. DHW Boiler 99. 21K Boiler Manufactured by Waterford Stanley Ltd., Unit 401-403, IDA Industrial Estate, Cork Road, Waterford, Ireland. Tel: (051) 302300 Fax (051) 302315 www.waterfordstanley.com N00076AXX DP 130903...
