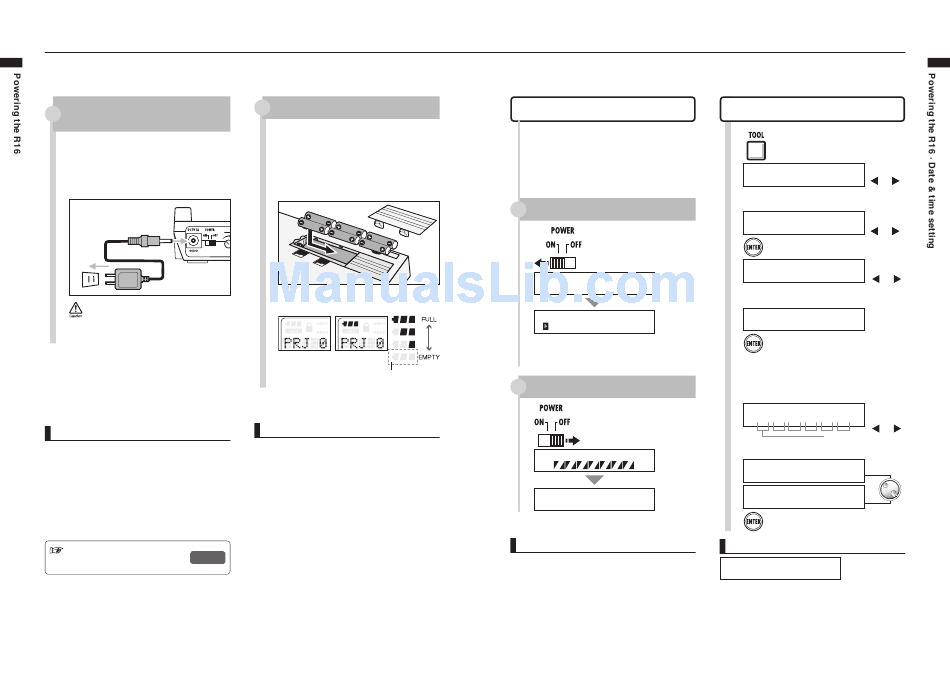

Powering the R16
Please use the included AC ADAPTER that is designed for the R16 or six AA batteries (sold separately).
Using the included AC ADAPTER with
an ordinary electricity supply
1
Make sure that [POWER]
is OFF, and then plug the
included AC ADAPTER into
the back of the unit.
You must use the included ZOOM AD-14
AC ADAPTER, which is designed for the
R16. Using any adapter other than the
AS-14 may damage the unit and void the
warranty.
HINT
Power supply from USB
With the [POWER] switch OFF, connecting a
computer to a USB cable makes the R16 start-up
automatically with power supplied by USB.
In this status, functions are different from when the
[POWER] switch is ON. The R16 can be used only
as an SD Card Reader or as an audio interface.
Ref.: R16 Battery type settings
P.71
BATTERY TYPE
13
Using batteries
1
Turn the [POWER] switch OFF
and open the battery case cover
on the bottom of the unit.
2
Install six AA batteries and
close the cover.
Power indicator on screen Battery power
status
No Indicator Indicator On
Using the AC Using batteries
adapter
Turn the [POWER]
switch OFF and
replace the
batteries.
NOTE
• Make sure that the [POWER] switch is OFF
when you open/close the battery cover or plug/
unplug the AC adapter. Removing batteries or
unplugging the AC adapter when the [POWER]
switch is ON, might cause lost recording data.
• The R16 can only use Alkali and NiMH batteries.
The approximate lifetime for Alkali batteries is
about 4.5 hours.
• Replace the batteries when you notice "Low
Battery" or the empty battery icon on the display,.
Turn the [POWER] switch OFF immediately
and install new batteries, or connect the included
AC adapter.
• Be sure to set the correct BATTERY TYPE setting
for accurate battery metering.
Powering the R16 · Date & time setting
Precautions for starting-up and shutting down and how to set the date and time for files and data
Turning the power on and off
1 ) M a k e s u re t h e p o w e r i s o ff o n a l l
equipment.
2) Insert an SD card into the R16. Confirm that
the connections for the power, instruments,
a n d m o n i t o r i n g s y s t e m ( o r s t e r e o
headphones) are correct.
Turn [POWER] switch ON: Start-up
1
Turn the [POWER]
switch ON.
Z O O M R 1 6
V e r : 1 . 0 0
P R J 0 0 0 P R J 0 0 0
0 0 0 0 : 0 0 : 0 0 : 0 0 0
2
Turn power on for connected instruments
and then for the monitoring system.
.
Turn [POWER] switch OFF: Shut-down
1
Turn the [POWER]
switch OFF.
P r o j e c t S a v i n g . . .
G o o d b y e S e e y o u !
NOTE
• Before turning the [POWER] switch ON, turn
the volume down on all instruments and the
monitoring system connected to the R16.
• If no power is supplied to the R16 for more than 1
minute, the DATE/TIME setting will be reset to its
initial value.
Setting the date and time
TOOL>SYSTEM>DATE/TIME
1
Press [TOOL].
Use the
cursor keys
to move in
T O O L the Menu
> T U N E R
2
Select >SYSTEM .
Move with
the cursor
T O O L
keys
> S Y S T E M
Press [ENTER].
Move with
the cursor
S Y S T E M
keys
> L C D
3
Select >DATE/TIME .
S Y S T E M
> D A T E / T I M E
Press [ENTER].
4
Select items under >DATE/TIME
Make setting for the year, month, day and
time (hour: minute: second).
Move with
DATE TIME
the cursor
2009/01/01 00:00:00
keys
Selected figure blinks
5
Change the time
DATE TIME
2009/03/01 00:00:00
DATE TIME
2009/03/10 10:15:03
Rotate the DIAL
to change the
Press [ENTER].
numbers.
If this is displayed:
Reset
DATE TIME
• The DATE/TIME setting has been set to its initial
value. Reset the DATE/TIME settings.
.
