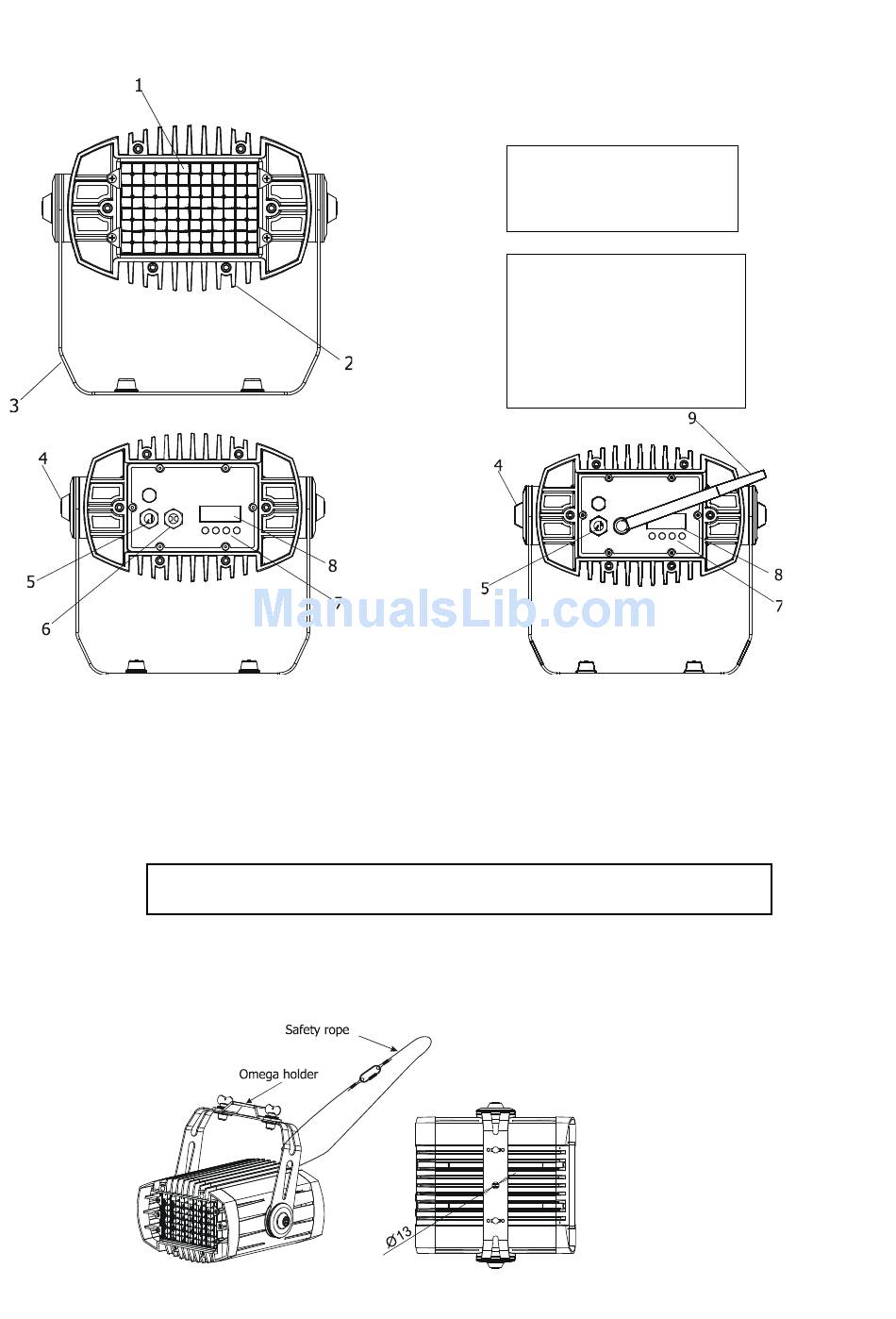

2. Fixture exterior view

Standard version

3. Installation

3.1 Rigging the fixture

The fixture can be rigged in any orientation on a truss via the omega holder without altering its operation
characteristics. The mounting bracket allows to adjust desired fixture position (0°-360°). The mounting hole in the
mounting bracket has a diameter of 13 mm.
CitySource 96 (RGBW)
Ensure that the structure (truss) to which you are attaching
the fixture is secure
1. Lens array
2. Radiator
3. Mounting bracket
4. Tilt-lock screw
5. Power cable
6. Data cable (DMX in/out)
7. Control buttons
8. LED display
9. Antenna
Wireles DMX version
