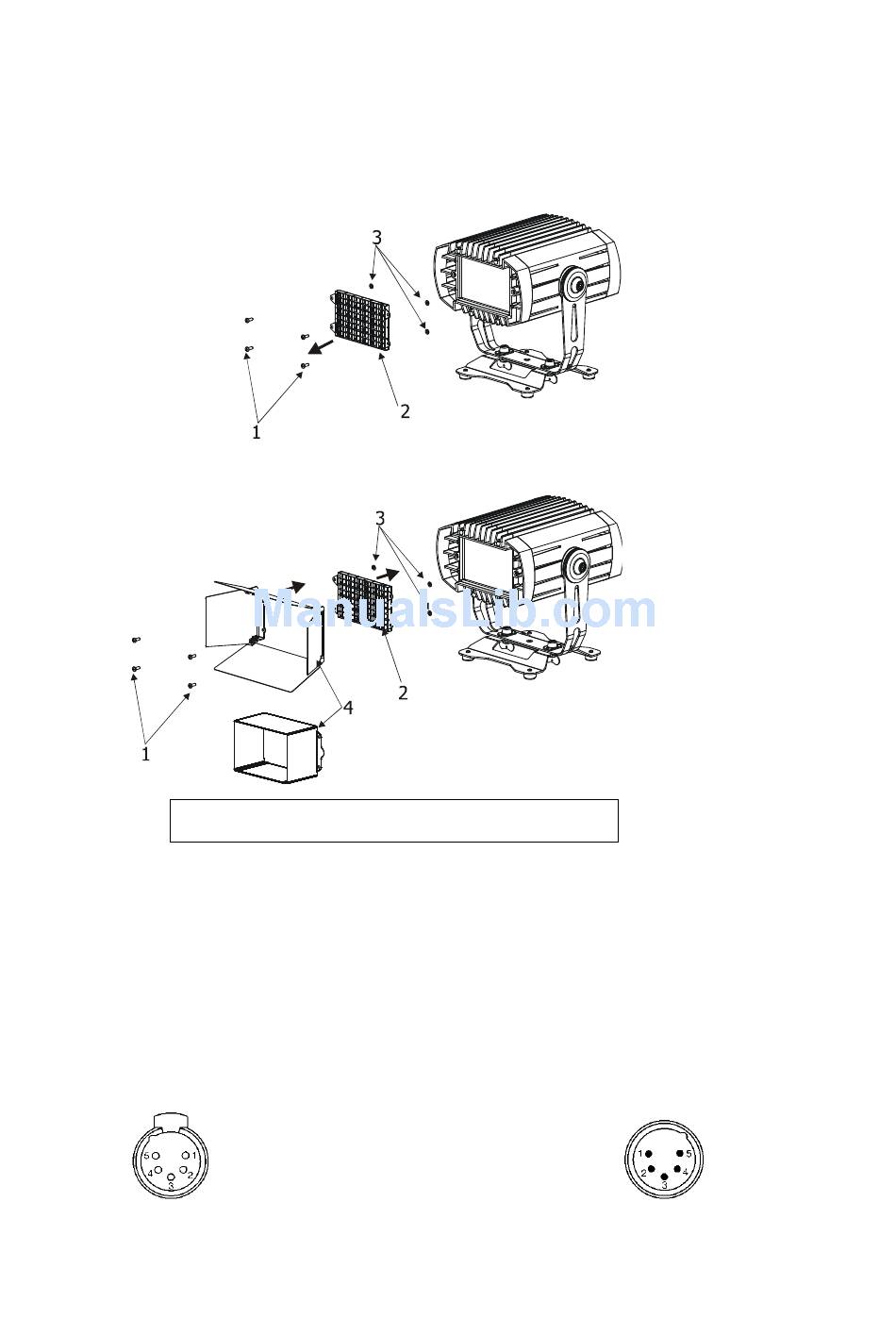

3.4 Installation of the barn-doors and top hat/half top hat

You can install the barn-doors or top hat/half top hat to better define illuminated surface.

1. Disconnect the fixture from the mains.

2. Remove the eggcrate lens module 25°(2) by unscrewing the four M5x14 screws (1) including washers (3).

3. Place the barn-doors module (4) or top hat/half top hat on the eggcrate lens module 25° (2) and screw

them on the fixture using four M5x14 screws (1) and washers (3) as shown on the picture below.

The fixture is equipped with two 5-pin XLR connectors for DMX input/output. Only use a shielded twisted-pair

cable designed for RS-485 and 5-pin XLR- connectors in order to connect the controller with the fixture or one

fixture with another.

Wiring of the XLR connectors:

DMX output

XLR socket (rear view):

1 – Shield

Never close the barn-doors during fixture operation

2 - Signal (-)

3 - Signal (+)

CitySource 96 (RGBW)

4 – Not connected

DMX input

XLR plug (rear view):

5 – Not connected
