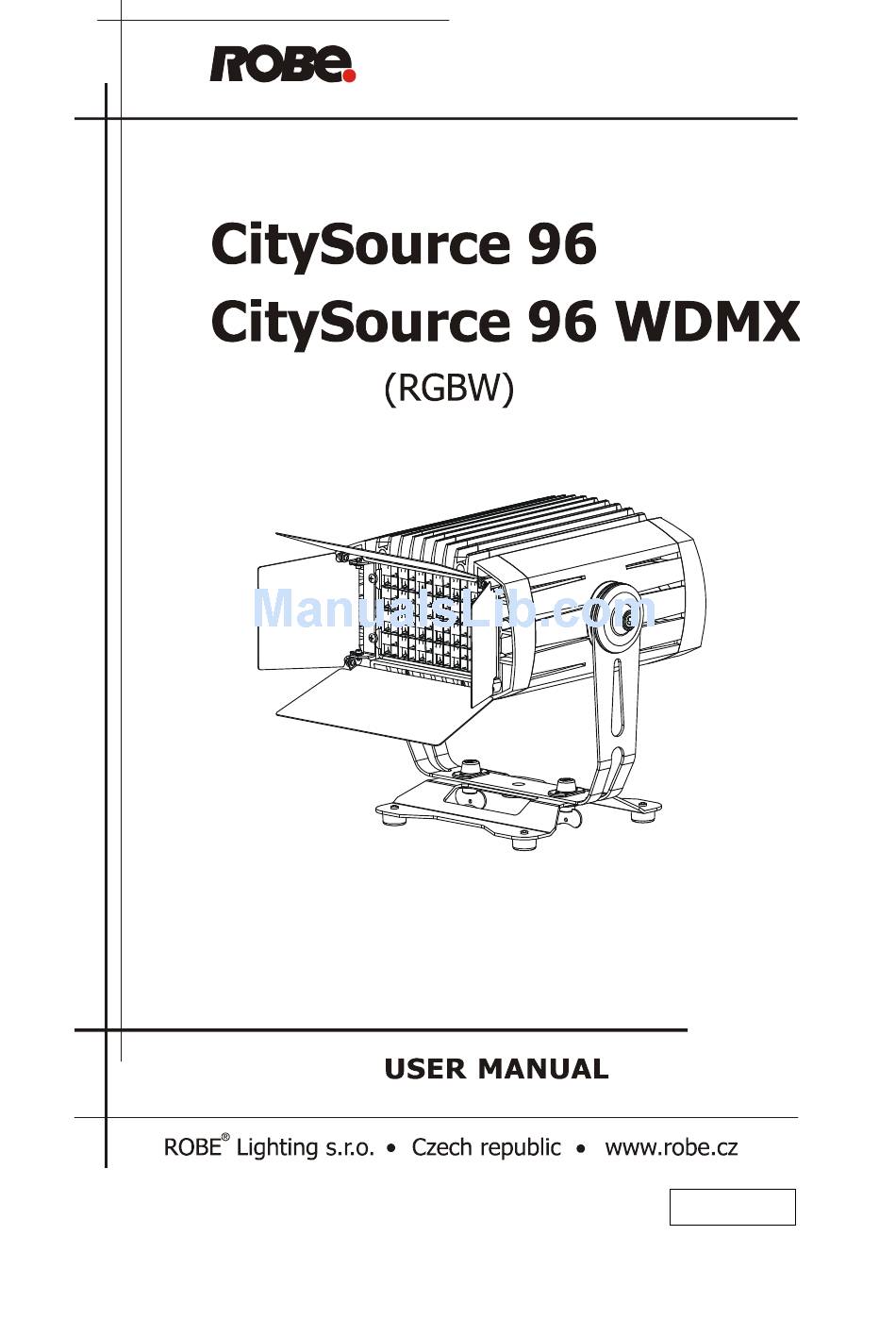

- Page 1 Version 1.6...
-
Page 2: Table Of Contents
CitySource 96 (RGBW) Table of contents 1. Safety instructions ..............................3 2. Fixture exterior view ..............................5 3. Installation .................................. 5 3.1 Rigging the fixture ..............................5 3.2 Connection to the mains ............................6 3.3 Changing the lens array ............................6 3.4 Installation of the barn-doors and top hat/half top hat .................. -
Page 3: Safety Instructions
CitySource 96 (RGBW) FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR CitySource 96 ! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual. - Page 4 CitySource 96 (RGBW) This fixture was designed for indoor and outdoor use. When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust. Avoid using the unit in locations subject to possible impacts. The fixture body never must be covered with cloth or other materials.
-
Page 5: Fixture Exterior View
CitySource 96 (RGBW) 2. Fixture exterior view 1. Lens array 2. Radiator 3. Mounting bracket 4. Tilt-lock screw 5. Power cable 6. Data cable (DMX in/out) 7. Control buttons 8. LED display 9. Antenna Standard version Wireles DMX version 3. Installation 3.1 Rigging the fixture Ensure that the structure (truss) to which you are attaching the fixture is secure... -
Page 6: Connection To The Mains
CitySource 96 (RGBW) IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the fixture. If you lack these qualifications, do not attempt the installation yourself, but instead use a professional structural rigger. Improper installation can result in bodily injury or damage to property. - Page 7 CitySource 96 (RGBW) You can install a frost foil under the eggcrate top hat to get frost light output. 1. Disconnect the fixture from the mains. 2. Uninstall the eggcrate lens module 25° (2) as described above. 3. Place the frost foil (6) under the the eggcrate top hat (7) and secure it by means of the four screws (1) and washers (3) on the fixture.
-
Page 8: Installation Of The Barn-Doors And Top Hat/Half Top Hat
CitySource 96 (RGBW) 3.4 Installation of the barn-doors and top hat/half top hat You can install the barn-doors or top hat/half top hat to better define illuminated surface. 1. Disconnect the fixture from the mains. 2. Remove the eggcrate lens module 25°(2) by unscrewing the four M5x14 screws (1) including washers (3). 3. -
Page 9: Master/Slave Connection
CitySource 96 (RGBW) To build a DMX chain 1. Connect the DMX output of the controller directly with the DMX input of the first fixture in the DMX chain. 2. Connect the DMX output of the first fixture in the DMX chain with the DMX input of the next fixture. 3. -
Page 10: Stand-Alone Operation
CitySource 96 (RGBW) 3.7 Stand-alone operation The fixtures on a data link are not connected to the controller but can execute pre-set programs which can be different for every fixture. To set the program to be played, see the "Stand-alone setting" (menu "St.AL."). "Stand-alone operation"... -
Page 11: Citysource 96 (Rgbcw) - Dmx Protocol
CitySource 96 (RGBW) 4. CitySource 96 (RGBCW) - DMX protocol Version 1.1 Mode/Channel Value Function Type of control Red LEDs - both LED arrays 0 - 255 Red LEDs saturation control (0-100%) proportional Green LEDs - both LED arrays 0 - 255 Green LEDs saturation control (0-100%) proportional Blue LEDs - both LED arrays... - Page 12 CitySource 96 (RGBW) Mode/Channel Value Function Type of control Colour macros – both LED arrays 216 - 254 Red down, Green=0, Blue=full, White=0 proportional Blue (Red=0, Green=0, Blue=full, White=0) step Shutter/ Strobe – both LED arrays 0-31 Shutter closed step 32-63 Shutter open step...
-
Page 13: Control Menu Map
CitySource 96 (RGBW) 5. Control menu map Default settings=Bold print Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 A001 dM.Ad. 001-512 MA.SL. d.AbL MASt. InFo Poti. FuLL totL rSEt totL rSEt DM.In. - Page 14 CitySource 96 (RGBW) Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 tEM.U. °C, °F bALA On, Off C.bAL. 0..200..255 GrEn 0..255 bLuE 0..237..255 Stor LOAd FuLL In.Po. rEd1 0-255 F.dim 0-255 Stor.
-
Page 15: Fixture Menu
CitySource 96 (RGBW) Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 PrG.3 Edit PrG.1 St.01 P.End 1-68 rEd1 0-255 PrG.3 St.68 S.tim. 0-25.5 sec CoPY SPEC. rdML rdMH Adj. rEd1 F.dimr CaL.U. -
Page 16: Fixture Address
CitySource 96 (RGBW) 6.1 Fixture Address Use this menu to set the DMX address of the fixture or set the fixture as a Master (Slave). dM.Ad. --- DMX addressing. Select this submenu to set a DMX start address. To set a DMX address. 1. -
Page 17: Personality
CitySource 96 (RGBW) DM.In.---DMX values. Select this function to read DMX values of each channel received by the fixture. tEMP --- Fixture Temperatures. Select this menu to read the temperatures of the fixture: Cur.t. --- the current temperature of the fixture inside. Hi.tE. -
Page 18: Manual Mode
CitySource 96 (RGBW) FuLL --- Maximum light output. EcO. --- The light output is decreased by 25%. In.Po. --- Init effect positions. Use this function to set all effects to the desired positions to which they will move after switching the fixture on (if DMX is not being received). Note. - Page 19 CitySource 96 (RGBW) Synchronous operation of multiple fixtures requires that they must be connected on a data link and one of them is set as a master (“MASt“) and the rest as the slaves (“SLA“). Up to 32 fixtures can be connected in a master/slave chain.
-
Page 20: Special Functions
DMX input of the fixture if you using the flash cable RS232/DMX with the DMX input of the Robe Universal Interface if you using the USB cable. Disconnect the fixture from the other fixtures in a DMX chain. Turn both the computer and the fixture on. -
Page 21: Rdm
CitySource 96 (RGBW) Select COM if the seriál port is used. Select DreamBox1 if the USB port is used. If the connection is OK, click on the Start Uploading button to start uploading. It will take several minutes to perform software update. If the option "Incremental Update" is not checked, all processors will be updated (including processors with the same software version). -
Page 22: Error And Information Messages
CitySource 96 (RGBW) SUPPORTED_PARAMETERS SOFTWARE_VERSION_LABEL DMX_START_ADDRESS IDENTIFY_DEVICE DEVICE_MODEL_DESCRIPTION MANUFACTURER_LABEL DEVICE_LABEL SENSOR_DEFINITION SENSOR_VALUE DISPLAY_LEVEL DEVICE_RESET DMX_PERSONALITY DMX_PERSONALITY_DESCRIPTION STATUS_MESSAGES STATUS_ID_DESCRIPTION DEVICE_HOURS 8. Error and information messages t.M.Er.(Temperature measuring error) The message informs you that the LED module temperature sensor is defective. MA.Er. (Master error) The fixture is set as a master and DMX console is connected to the fixture. -
Page 23: Technical Specifications
CitySource 96 (RGBW) 10. Technical specifications Power supply • Electronic auto-ranging • Input voltage: 100 - 240V AC, 50-60 Hz • Fuse: T3.15 A H • Power consumption: Power Max. power consumption Typical power consumption Ambient mode (All LED channels at full) ( 2 LED Channels at full) Temperature Full mode... - Page 24 CitySource 96 (RGBW) Dimmer • Smooth 16-bit dimming from 0 - 100 % Connection • DMX data in: 1.3m long cabel with 5-pin XLR (male) • DMX data out: 1.3m long cabel with 5-pin XLR (female) •Power: 1.4m long power cabel without plug Rigging •...
- Page 25 CitySource 96 (RGBW) Weight • 11 kg Removable floor stand Weight • 1.2 kg Protection factor • IP 65 Included items • 1 x CitySource 96 • 1 x Eggcrate lens module 25° (No. 10980067) • 1 x omega holder (No. 99010420) •...
-
Page 26: Cleaning And Maintenance
CitySource 96 (RGBW) 11. Cleaning and maintenance DANGER ! Disconnect from the mains before starting any cleaning or maintenance work Rinse off loose dirt with low pressure water spray. Wash the housing with a soft brush or sponge and a mild, non- abrasive washing detergent. - Page 27 CitySource 96 (RGBW)
