INSTALLING AND USING THE ROUTER

Mounting the Device

1. Locate the groove on the bottom of the modem.
2. Slide the mounting rod through the groove.
3. To secure the rod to the desired surface, place and tighten two screws in the holes on either end of the
mounting rod. The dimensions illustration in this guide shows the mounting rod, as well as the
dimensions for placement of the screws.

Activating the Account for Wireless Devices

Refer to Multi-Tech's Cellular Activation Web site at http://www.multitech.com/activation.go for information on
activating your cellular modem.
Note: If you need remote access to your MultiConnect device over the Internet for remote configuration,
ensure that your wireless network provider has provisioned mobile terminated data and fixed or dynamic
public IP address in which they can configure the network to redirect any incoming connection to that
predefined IP.

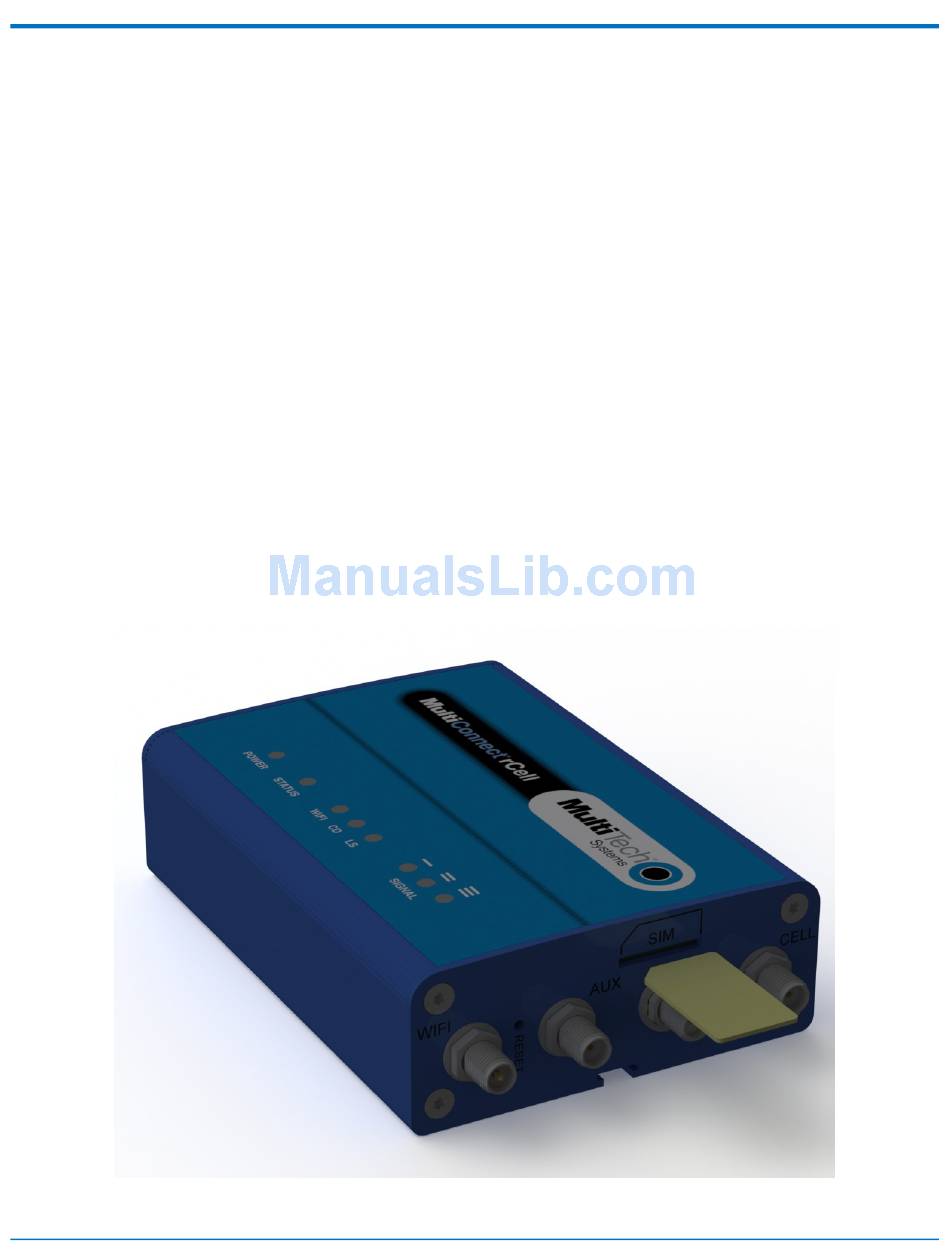

Installing the SIM Card

If you want to operate the router on a GSM/HSPA network, install a SIM card (Subscriber Identity Module).
To install the SIM:
1. Locate the SIM card slot on the side of the router. The slot is labeled SIM.
2. Push the SIM card into the slot until it snaps into place.
3. To remove the SIM, push the edge of the card in. When released, the card pops out of the device.
