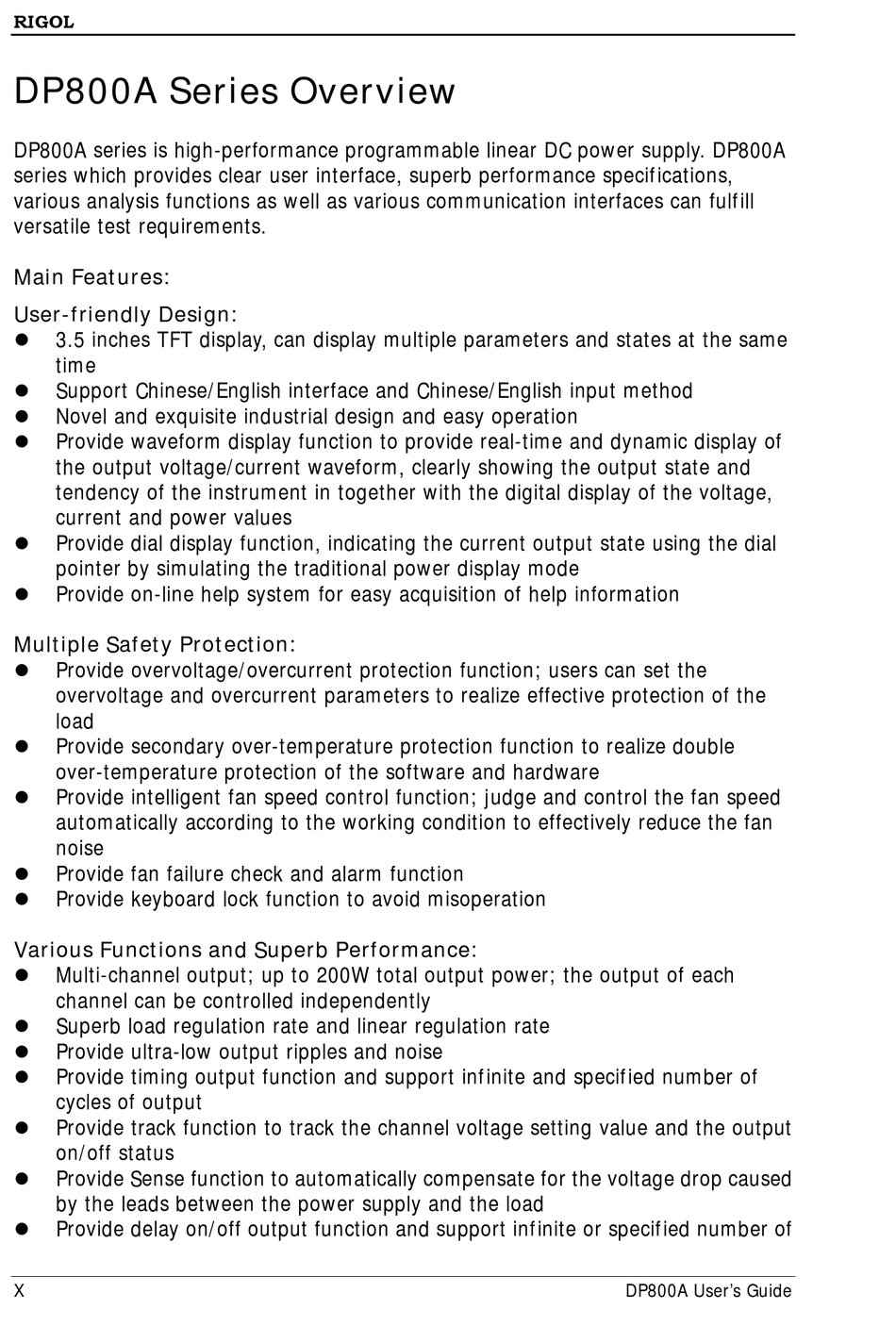

DP800A Series Overview

DP800A series is high-performance programmable linear DC power supply. DP800A
series which provides clear user interface, superb performance specifications,
various analysis functions as well as various communication interfaces can fulfill
versatile test requirements.
Main Features:
User-friendly Design:
3.5 inches TFT display, can display multiple parameters and states at the same

time
Support Chinese/English interface and Chinese/English input method

Novel and exquisite industrial design and easy operation

Provide waveform display function to provide real-time and dynamic display of

the output voltage/current waveform, clearly showing the output state and
tendency of the instrument in together with the digital display of the voltage,
current and power values
Provide dial display function, indicating the current output state using the dial

pointer by simulating the traditional power display mode
Provide on-line help system for easy acquisition of help information

Multiple Safety Protection:
Provide overvoltage/overcurrent protection function; users can set the

overvoltage and overcurrent parameters to realize effective protection of the
load
Provide secondary over-temperature protection function to realize double

over-temperature protection of the software and hardware
Provide intelligent fan speed control function; judge and control the fan speed

automatically according to the working condition to effectively reduce the fan
noise
Provide fan failure check and alarm function

Provide keyboard lock function to avoid misoperation

Various Functions and Superb Performance:
Multi-channel output; up to 200W total output power; the output of each

channel can be controlled independently
Superb load regulation rate and linear regulation rate

Provide ultra-low output ripples and noise

Provide timing output function and support infinite and specified number of

cycles of output
Provide track function to track the channel voltage setting value and the output

on/off status
Provide Sense function to automatically compensate for the voltage drop caused

by the leads between the power supply and the load
Provide delay on/off output function and support infinite or specified number of

