Rigol DP821a Instructions Manual
Hide thumbs
Also See for DP821a:
- Programming manual (205 pages) ,
- User manual (146 pages) ,
- Performance verification manual (93 pages)
Subscribe to Our Youtube Channel
Related Manuals for Rigol DP821a
Summary of Contents for Rigol DP821a

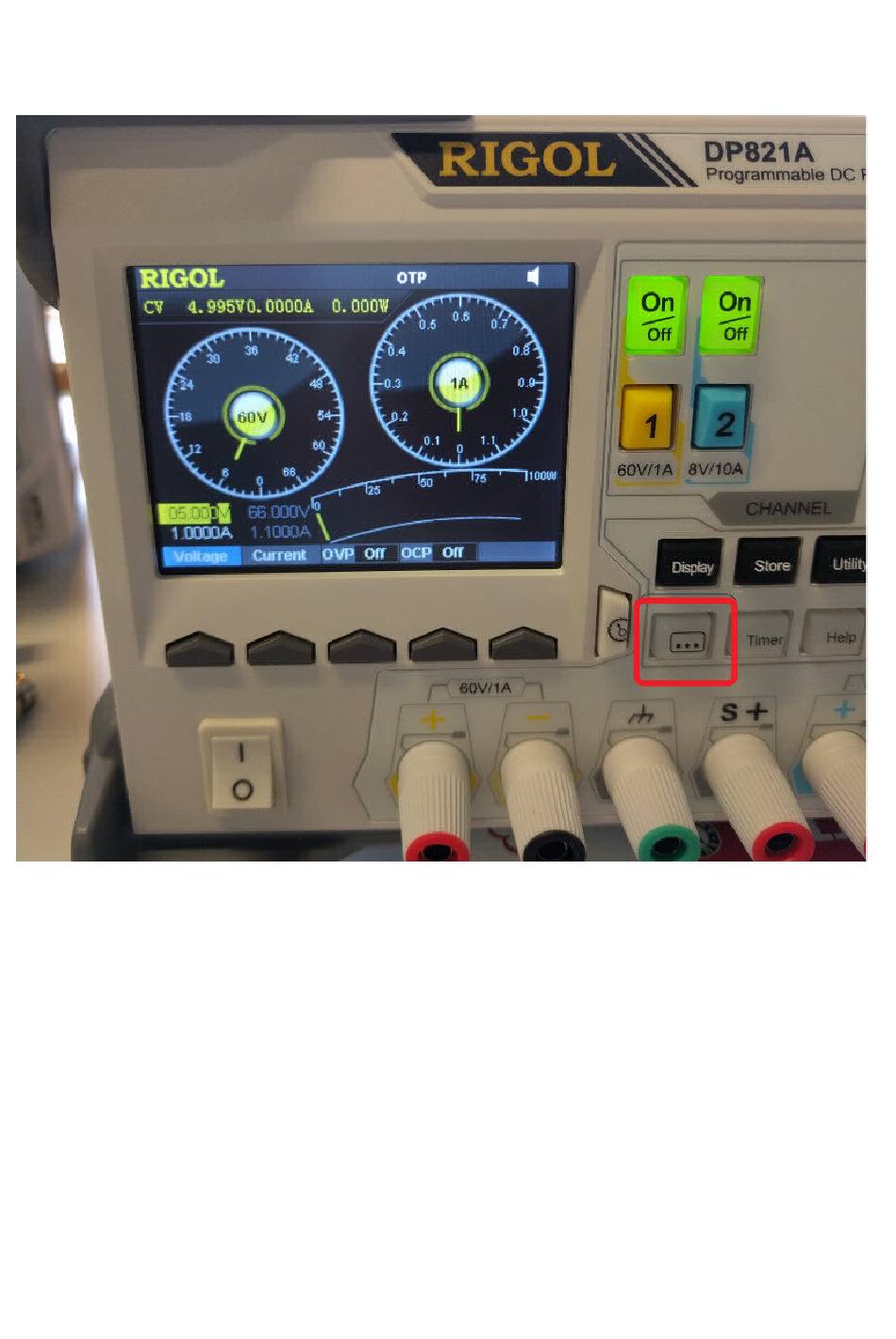

- Page 1 DP821a recorder instructions Press the [...] button to enter the extras menu. See figure 1. Figure 1: secret menu...
- Page 2 DP821 recorder instructions Select recorder. See figure 2. Figure 2: extras menu...
- Page 3 DP821 recorder instructions Set the destination and filename for file by pressing Dest. See figure 3. Figure 3...
- Page 4 DP821 recorder instructions Select any and hit save. See figure 4. Figure 4...
- Page 5 DP821 recorder instructions Use select to type and ok to confirm the filename. See figure 5. Figure 5...
- Page 6 DP821 recorder instructions Switch on the recorder when you’re ready. See figure 6. Figure 6...
- Page 7 DP821 recorder instructions Pushing this button will show realtime values. See figure 7. Figure 7...
- Page 8 DP821 recorder instructions When you’ve completed the measurement press switch on to turn off the recording. See figure 8. Figure 8...
- Page 9 DP821 recorder instructions When you’ve stopped the recording open the analyzer. See figure 9. Figure 9...
- Page 10 DP821 recorder instructions Open the file. See figure 10. Figure 10...
- Page 11 DP821 recorder instructions Set the start and endtime so that it will be exactly 60 seconds and hit Analyze. See figure 11. Figure 11...
- Page 12 DP821 recorder instructions Then you’ll be able to see the measured voltage, current and power over the period. See figure 12. Figure 12...
