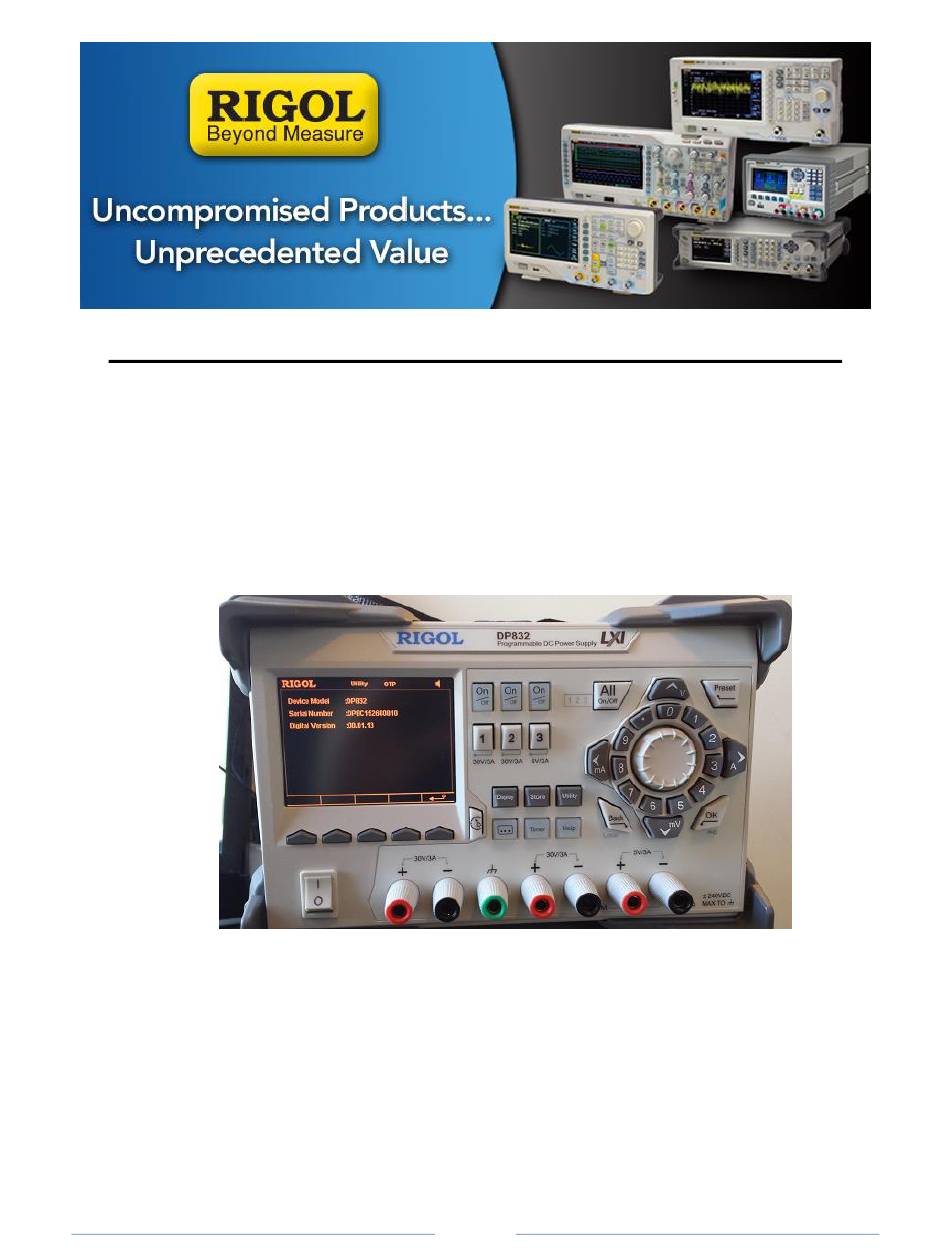

DP800 FW Upgrade Instructions for Versions < 00.01.09
Date: 02.03.2015
Solution: The DP800 firmware can be upgraded very easily by following this process:
1. Check the current bootloader and firmware revision by pressing Utility >
Sys Info to show basic info:
Page 1
