Lumens DC166 Quick Start Manual
Visual presenter
Hide thumbs
Also See for DC166:
- Quick start manual (2 pages) ,
- User manual (36 pages) ,
- User manual (4 pages)
Related Manuals for Lumens DC166
Summary of Contents for Lumens DC166

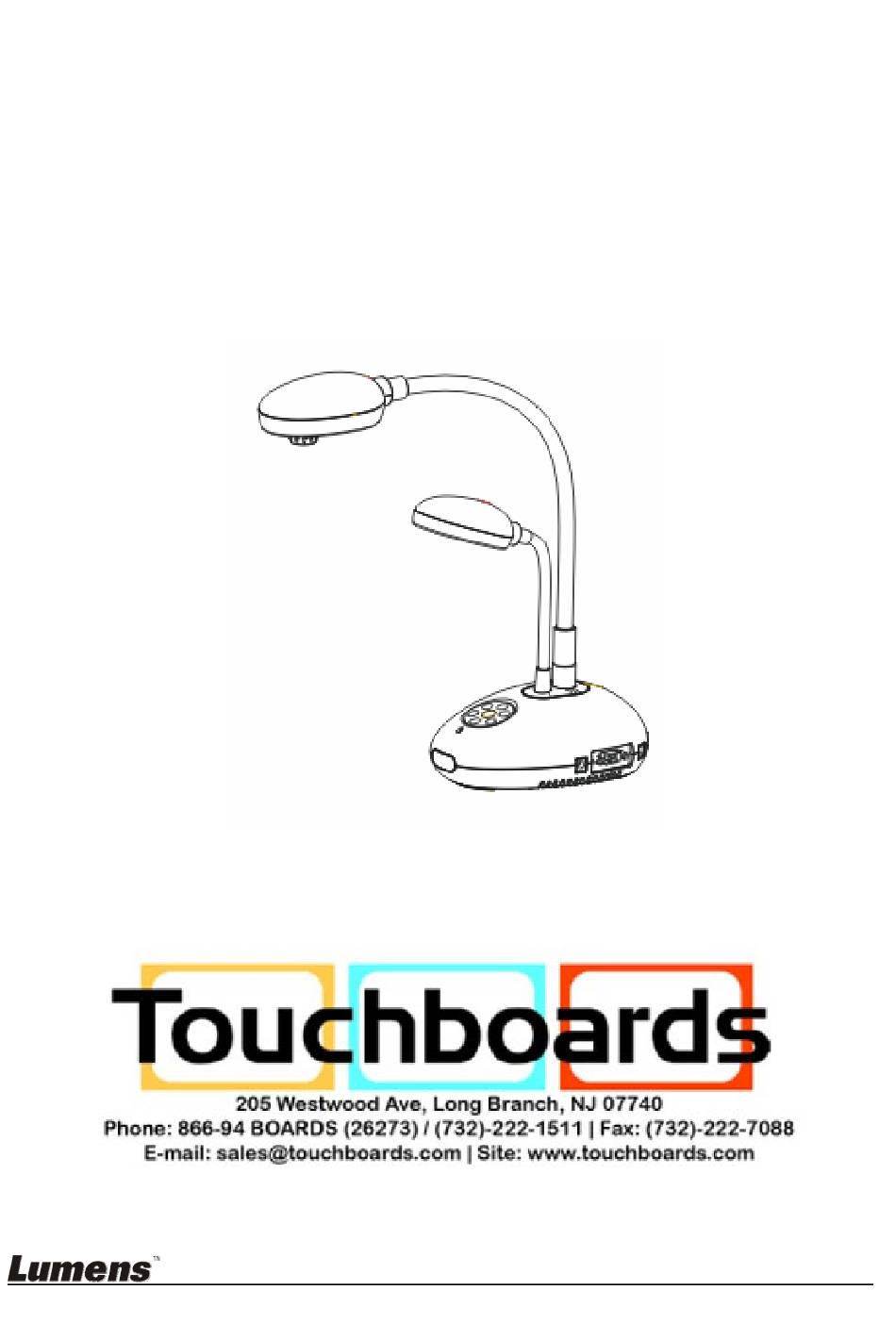

- Page 1 DC166 Visual Presenter Quick Start Guide [Important] To download quick start guide, multilingual manuals, software, and drivers, please visit Lumens website at http://www.lumens.com.tw/goto.htm English...
- Page 2 1. Package Content DC166 Quick Start Guide User Manual (To download this manual in the other languages, visit Lumens website) Download Card Remote Control VGA Cable USB Cable C-Video Cable Power Cord Appearance may vary depending on country/region Presenter Protector...
- Page 3 2. System Diagram Projector Monitor Television SD Card English...

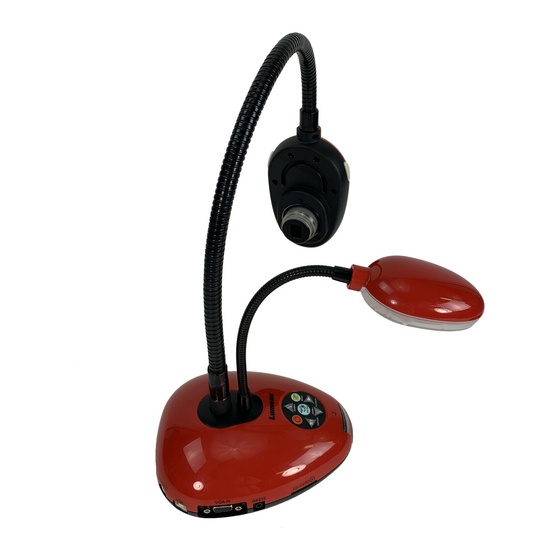

- Page 4 3. Product Overview 1. Gooseneck 2 Lamp 3. Control Panel 4. LED indicator 5. Remote sensor 6. Lens 7. DIP switch (Bottom) English...
- Page 5 4.2 Step 2: Connection projector with other hardware devices 4.2.1 Connecting to a Projector or Monitor Connect the VAG cable to the VGA OUT port on the DC166 and to the VGA IN port on the projector or monitor. 4.2.2 Connecting to a TV 1.
- Page 6 3. DIP switch settings will not availabe until the DC166 has been restarted. 4.2.3 Connecting to a Computer Connecting to a computer through USB Connect the USB cable to the USB port on the DC166 and the USB port on the computer. Next, download the queue program at ™...
- Page 7 Connecting to a computer through RS-232 Connect the RS-232 adapter (Optional) to the RS-232 port on the DC166 and the RS-232 port on the computer. 5. Start Using the DC166 5.1 Powering on the DC166 Control Panel Remote Control When using the remote control, aim at the remote sensor at the DC166 and press the power button.
