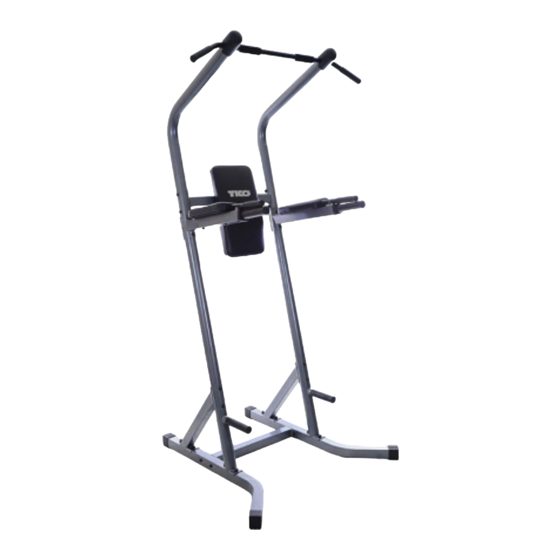

6150 power tower
Hide thumbs

Advertisement

Quick Links

Download this manual
6150
POWER TOWER

Advertisement

loading
Need help?

Need help?

Do you have a question about the 6150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TKO 6150

Summary of Contents for TKO 6150

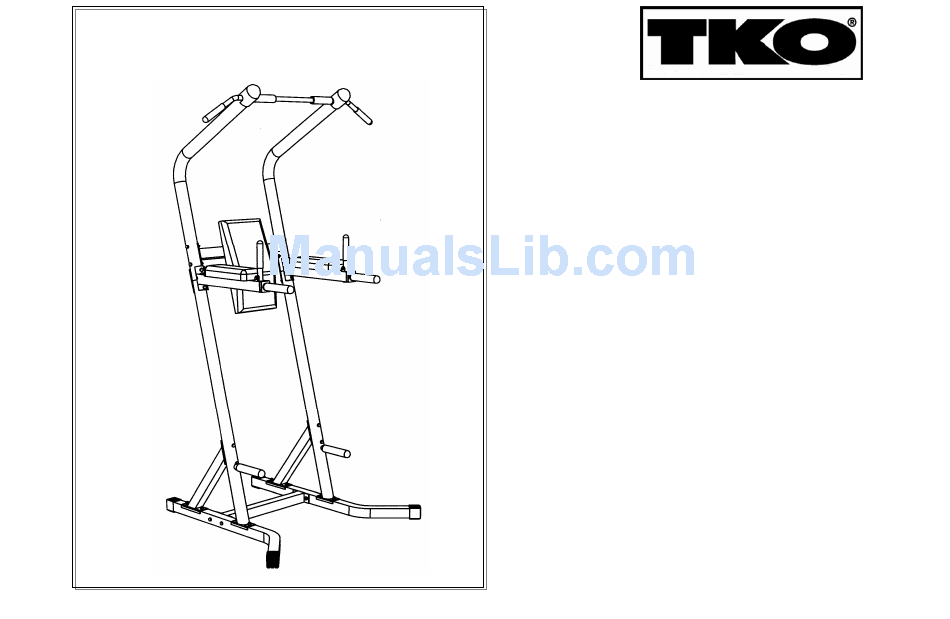

  • Page 1 6150 POWER TOWER...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Thank you for purchasing the 6150 Power Tower. • This machine is intended for household use only. It is not designed for commercial use. • This manual is designed to help you to assemble, adjust, maintain and to use. Please read this manual carefully and follow it before you use your machine.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS: Overview Of An Exercise Program Weight Capacities Parts List Overview Drawing Assembly steps 8-13 Customer service...

  • Page 4: Overview Of An Exercise Program

    OVERVIEW OF AN EXERCISE PROGRAM The guidelines below represent the basic components of safe and effective exercise program. Warm Up 3 to 5 minutes of low intensity aerobic or calisthenics type activity (sit up, push up, jumping jacks...etc) 3 to 5 minutes of static stretching. Aerobic Training Perform a minimum of 20 to 30 minutes of cardiovascular exercise, 3 to 5 days per week.

  • Page 5: Weight Capacities

    450 pounds MAINTENANCE Your 6150 is a high quality machine and is built to last. Simple routine cleaning and preventive maintenance go a long way extending the life of your machine. Inspect and Tighten all nuts and bolts each time you use the machine.

  • Page 6: Parts List

    PARTS LIST Part Numbers & Description 1. Base frame (left) 31. Upper frame end cap (60mm round) 2. Base frame (Right) 32. Bolt M6x1-9/16” (40mm) (2pcs) 3. Base cross frame 33. Washer for M6 bolt (4pcs) 4. Upright angle support frame 34.

  • Page 8: Assembly Steps

    ASSEMBLY STEPS STEP 1 Install the Base cross frame (3) to the Left and right base frame (1 & 2) using 4 bolts (13) 8 washers (14) and 4 lock nuts (15). Hand tighten these nuts and bolts. Do not use wrench at this time. STEP 2 1) Install the uprights (5) to the Base frame assembly, using 4 carriage bolt (16) from underneath, 4 washers (17) and 4 lock nuts (18).
  • Page 9 ASSEMBLY STEPS...
  • Page 10 ASSEMBLY STEPS STEP 3 1) Install the Pull up handlebar (10) to the top end of the L shaped upper frame (6) using 2 Screws (28). Tighten it securely with Phillips screwdriver. 2) Connect the Back pad support frame (7) with both L shaped upper frame, using 4 bolts (19) 8 washers (20) and 4 lock nuts (15).
  • Page 12 ASSEMBLY STEPS STEP 5 Install the left and right VKR arm rest support frame (9 & 34) to Upright frame assembly. Using 4 bolts (25) 8 washers (20), 2 curved shaped metal plates (27) and 4 lock nuts (15). Tighten it securely with wrenches. Now tighten all 16 nuts and bolts with wrenches.
  • Page 13 STEP 5 STEP 6...

  • Page 14: Customer Service

    Forward the package to TKO Sports Group USA, Ltd. prepaid. Merchandise returned without a RAN the outside of the package or shipments sent C.O.D. will not be accepted by the TKO receiving department (distribution center).
  • Page 15 TKO SPORTS GROUP USA, LTD. 7354 Denny Road #100 Houston, TX 77040 1-713-895-9270 1-713-895-9379 Fx www.tko.com...

This manual is also suitable for:

Power tower 6150
