Summary of Contents for TKO 8051FT

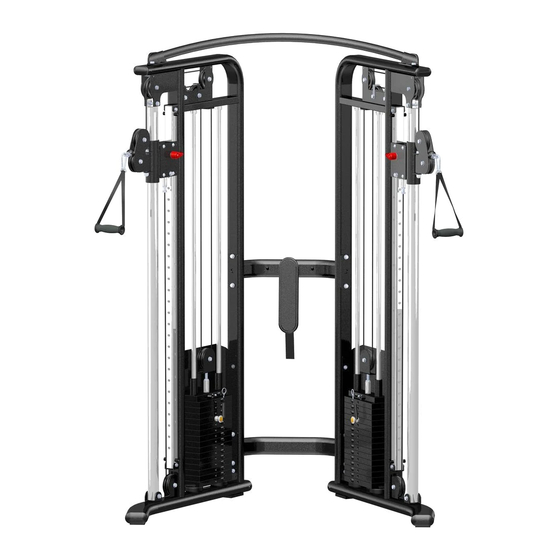

- Page 1 Functional Trainer Model 8051FT Owner’s Manual www.tko.com...
- Page 2 Hours: Monday-Friday 8:30am to 4:30pm CT Copyright 2011, TKO Sports Group USA Limited. All rights reserved. TKO Sports Group USA Limited. 4660 Pine Timbers, Suite 198, Houston, TX 77041 Phone + 713-895-9270 Fax + 713-934-8495 www.tko.com...
-
Page 3: Product Diagram
Product Diagram... -
Page 4: Exploded Diagram
Exploded Diagram... -
Page 5: Parts List
Parts List Description QTY No. Description Right Frame Handle Bar 132*260 Left Frame Small Rubber Sleeve Φ15*Φ6*18 Rear Lower Support Frame Foot Cushion 100*65*12 Rear Top Support Frame Sleeve of Hook Φ12*55 Pulley Frame Right Metal Cover 600*432*1.2 Double-Pulley Frame Left Metal Cover 600*432*1.2 Upper Cross Frame Hex Bolt M8*60... - Page 6 Assembly Note: Before starting assembly remove all parts and hardware from the carton, ensure you have everything according to the list. Step 1 Install Rear Lower Support Frame (3) and Rear Top Support Frame(4) onto Left Frame (2) and Right Frame (1), using Hex Bolt M10*65 (46), Flat Washer Φ11*Φ20*2 (61) and Nut M10 (64);...
- Page 7 Assembly Step 2 First of all, remove Guide Rod Bush (23), O-Ring (67), Hex Cone Set Screw M6*4 (58) and Top Weight Plate 247*65*25.4 (25) from Right Frame (1). And put Weight Stack 260*100*25.4 (24) and put Top Weight Plate 247*65*25.4 (25) back to Guide Rod Φ20*1743 (13). Then install Guide Rod Φ20*1743 (13) onto Right Frame (1),using Guide Rod Bush (23), O-Ring (67), Hex Cone Set Screw M6*4 (58), please tighten all bolts;...
- Page 8 Assembly Step 3 Install Right Metal Cover (41) and Right Metal Cover (40) onto Right Frame (1) and Left Frame (2), using Hex Round Bolt M6*15 (55) and Big Washer Φ6.6*Φ18*1.6 (69); Install Safety Hook Φ8*80 (68) and Handle Bar 132*260 (36) onto Left Metal Cover(41) and Right Metal Cover (40).
