Summary of Contents for TKO 6130

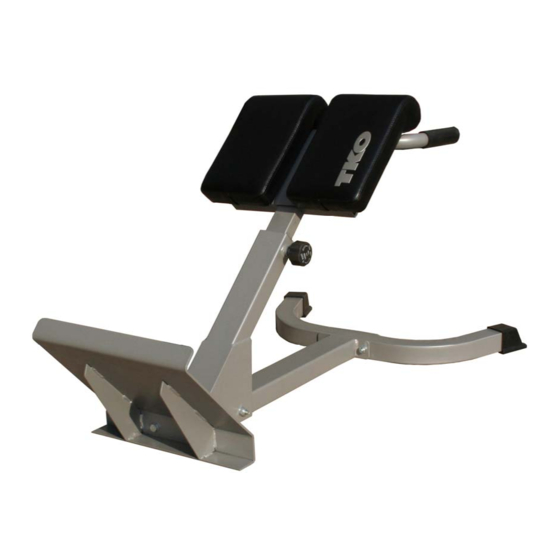

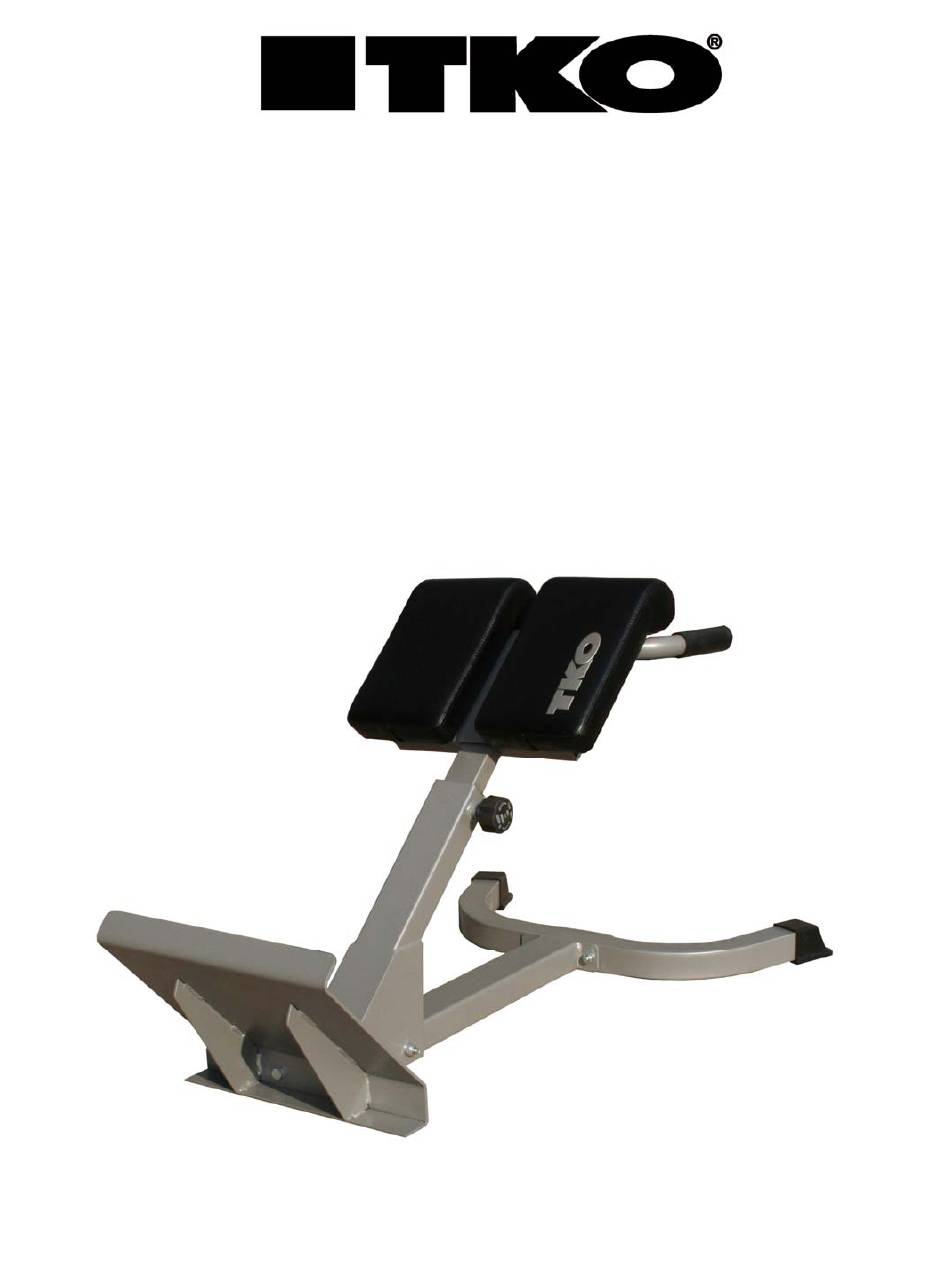

- Page 1 Hyper Extension Model 6130...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS TKO Fitness products are designed and manufactured to the highest standards in order to provide you with years of great workouts. We proudly stand behind all our products with the best customer service in the fitness industry. If you have any question or need assistance please contact us at: Customer Service: customerservice@tko.com...
- Page 3 EXPLODED DRAWING...
- Page 4 PARTS LIST Description Q’ty Base Frame Base Frame Stabilizer Foot Plate Main Support Frame Handle Bar Thigh Pad End Cap Metal Plate Lock Nut for M10 Bolt Flat Washer for M10 Bolt Rubber Floor Pad Rivet ST3.8x15 mm Hex Bolt M10X75mm (3”) Hex Bolt M10X25mm (1”) Hex Bolt M10X100mm (4”) Knob...
- Page 5 ASSEMBLY INSTRUCTIONS Note: Before starting assembly remove all parts and hardware from the carton, ensure you have everything according to the list. Step 1 Install the Base Frame Stabilizer (2) to the Base Frame (1), using 1 Metal Plate (8), 2 Hex Bolts (13), 4 Flat Washers (10) and 2 Lock Nuts (9).
- Page 6 Step 3 Please install the Thigh Pad Adjustable Post to the Handle Bar (5), using 2 Hex Bolts (22), 4 Flat Washers (10) and 2 Lock Nuts (9). Step 4 Attach the Thigh Pads (6) to the thigh pad plate of the Handle Bar (5), using 8 Hex Bolts (20) and 8 Flat Washers (21).
- Page 7 Step 5 Please Install the Main Support Frame (4) to the Base Frame (1), using 2 Hex Bolts (15), 4 Flat Washers (10) and 2 Lock Nuts (9). Note: Please tighten all the nuts and bolts using wrenches. Step 6 Please insert the Thigh Pad Adjustable Post (18) into the Main Support Frame (4).
- Page 8 TKO SPORTS GROUP USA LTD 7354 Denny Road Suite 100 Houston, TX 77040 866-856-3488 www.tko.com...
