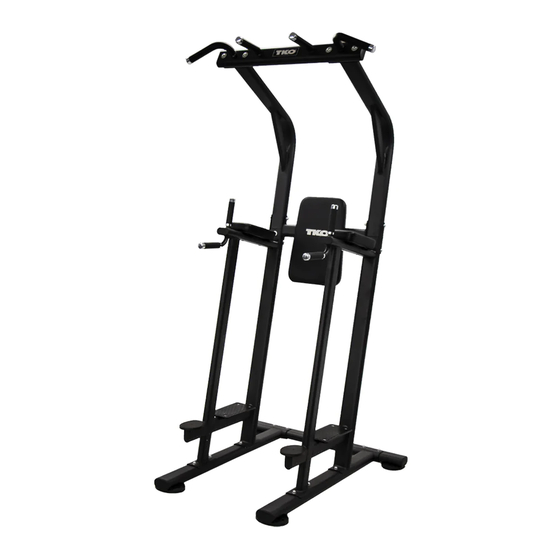

- Page 1 VKR Power Tower Model 870VKR2 Owner’s Manual 03.2020 www.tko.com...
- Page 2 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 3 Hours: Monday-Friday 8:30am to 4:30pm CT Copyright 2011, TKO Sports Group USA Limited. All rights reserved. TKO Sports Group USA Limited. 4660 Pine Timbers, Suite 198, Houston, TX 77041 Phone + 713-895-9270 Fax + 713-934-8495 www.tko.com...
-
Page 4: Product Diagram
Product Diagram... -
Page 5: Exploded Diagram
Exploded Diagram... -
Page 6: Parts List
Parts List Part No. Description Q’ty Part No. Description Q’ty Foam ∮24*5*140 Rear base frame Foam ∮24*5*175 Front base frame End cap ∮25*2 Foam ∮24*5*290 Lower upright frame Name plate 146*45*2 Upper upright frame Flat washer ∮9*∮16*1.6 Cross frame Flat washer ∮11*∮20*2 Upper cross frame Flat washer ∮11*∮34*3 Curved connection... - Page 7 Assembly Note: Before starting assembly remove all parts and hardware from the carton, ensure you have everything according to the list. Step 1. Connect Rear base frame（1），Front base frame（2）and Right base frame(3) using Flat washer ∮11*∮20*2(24), Nut M10(26) and Allen bolt M10*70(30). Please don’t tighten all the bolts..
- Page 8 Assembly Step 3. Connect Lower upright frame(4), Upper upright frame(5) using Flat washer ∮11*∮34*3 (25), Nut M10(26) and Allen bolt M10*65(29). Please don’t tighten all the bolts.. Step 4. Connect Lower upright frame(4), Upper upright frame(5), Cross frame(6) and Curved connection bracket(8) using Flat washer ∮11*∮20*2 (24), Nut M10(26) and Allen bolt M10*125 (31).
- Page 9 Assembly Step 5. Connect Upper upright frame(5) and Upper cross frame (7) using Flat washer ∮11*∮20*2 (24), Flat washer ∮11*∮34*3 (25),Nut M10(26) and Allen bolt M10*70(30). Please tighten all the bolts. Step 6. Fix Back pad(9) to Cross frame(6), using Flat washer ∮9*∮16*1.6(23), Allen bolt M8*25(27) ; Fix Arm pad(10) to Lower upright frame(4) using Flat washer ∮9*∮16*1.6(23) and Allen bolt M8*65(28).
