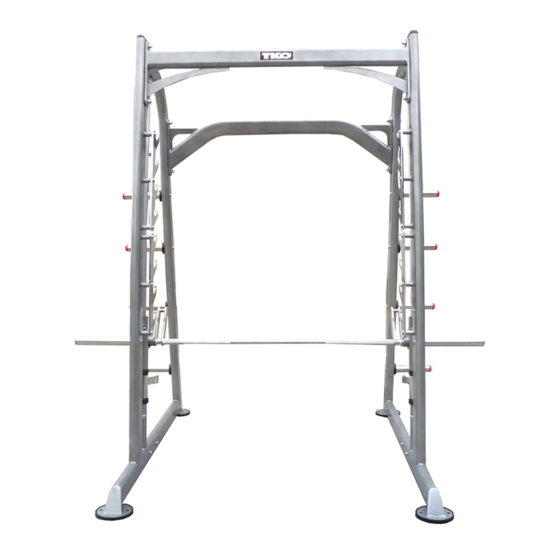

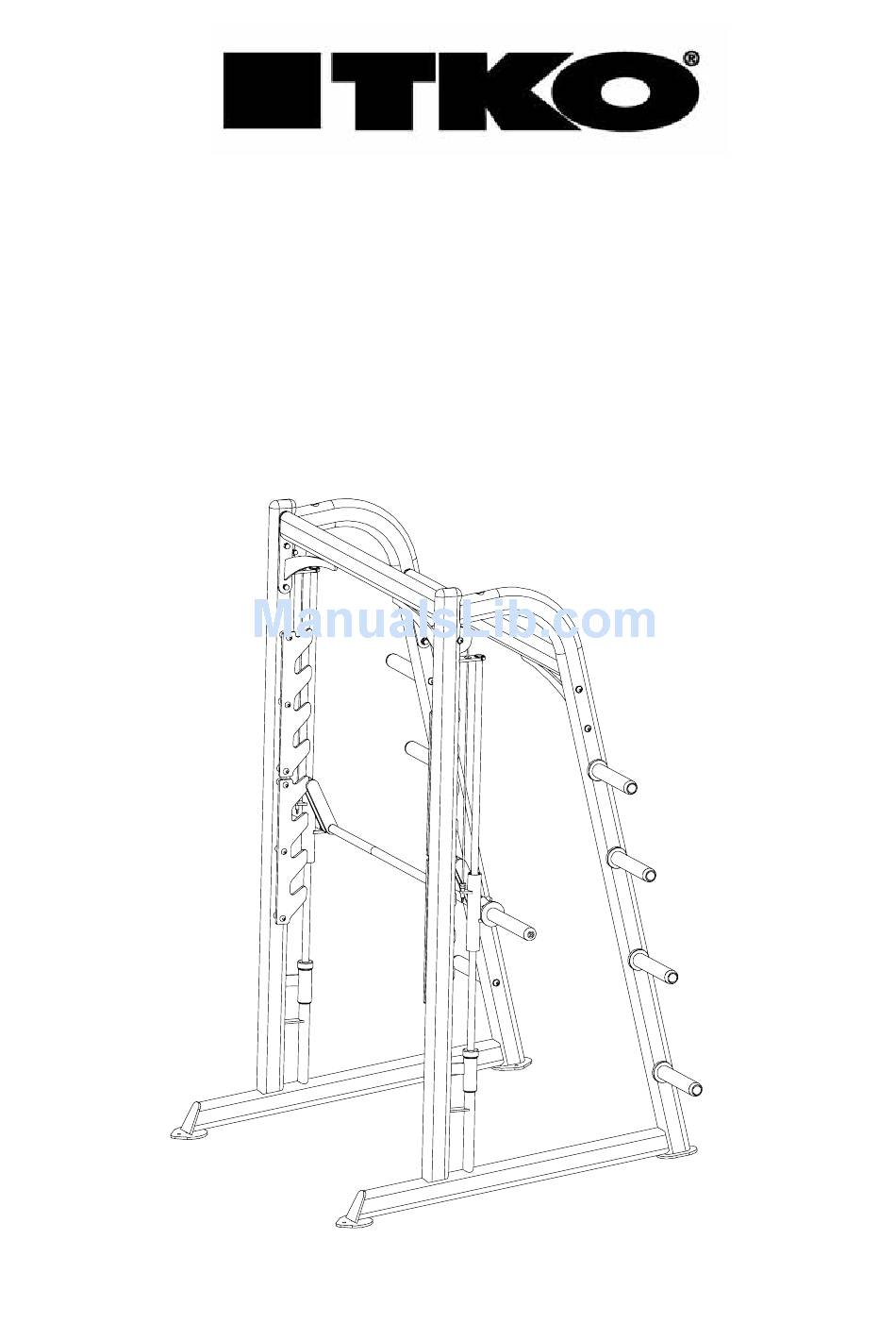

- Page 1 Smith Machine Model 872SM...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS TKO Fitness products are designed and manufactured to the highest standards in order to provide you with years of great workouts. We proudly stand behind all our products with the best customer service in the fitness industry. If you have any question or need assistance please contact us at: Customer Service: customerservice@tko.com... - Page 3 EXPLODED DRAWING...
-
Page 4: Parts List
PARTS LIST Part No. Description Q’ty Part No. Description Q’ty Main Frame-R Rubber End Cap Main Frame-L Plastic Sleeve Top Cross Frame Rubber Bumper Sliding mechanism assembly - R Sliding mechanism assembly - L Barbell End Cap Safety Catch - R End Cap Safety Catch - L Plate Storage Bar Decal... - Page 5 ASSEMBLY STEP Note: Before starting assembly remove all parts and hardware from the carton, ensure you have everything according to the list. Step 1 Please c onnect the Top Cross Frames (3) to the Main Frames (1&2), using 8 Allen Bolts (31 ), 16 Flat Washers (34) and 8 Lock Nuts (37).
- Page 6 Step 2 Please lo osen the Allen Bolt (37) and pull up the Smith Guide Rod (11). lease connect the Barbell (6) to the Guide Rod (11), then pull down the Guide Rod (11) and tighten the Allen Bolt (37). Connect the Counter Balance Cab le (21) to the Sliding Mechanism by remove the lat Washer at the end of the cable, connect the Cable to the hole in the Sliding...
- Page 7 tep 3 Please in stall the Weight Plate Storage Bar (10) to the Main Frames (1&2), Using 8 Allen Bol ts (33) and 8 Flat Washers (34). Please tighten all the Bolts with Allen wre nch.
- Page 8 TKO SPORTS GROUP USA LTD 7354 Denny Road Suite 100 ston, TX 7 7040 866-856-3488 www.tko.com...
